66 Hardware Description

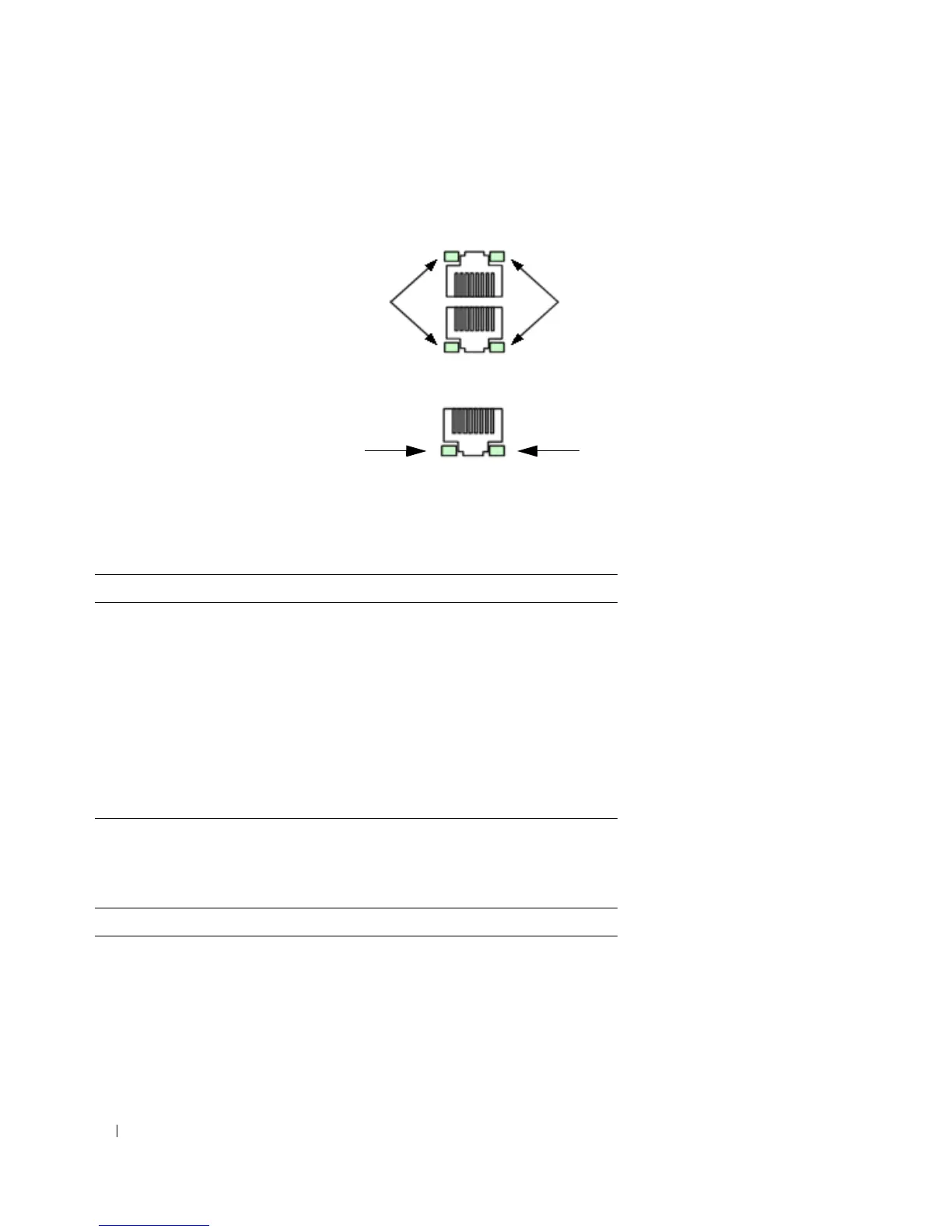

Figure 4-16. 10/100/1000 Base-T Port LEDs
The following table contains 10/100/1000 Base-T port LED definitions.
Table 4-5 contains 10/100/1000 Base-T port LED definitions for the PowerConnect 6224P and 6248P.
Table 4-4. 10/100/1000 Base-T Port Definitions (6224, 6248, and 6224F)
LED Color Definition
Link/Activity Green The port is operating at 1000 Mbps.
Amber The port is operating at 10/100
Mbps.
Solid Link but no activity.
Blinking Link and activity.
Off No link.
Duplex Green Full-duplex mode.
Off Half-duplex mode.
Table 4-5. 10/100/1000 Base-T Port Definitions (6224P and 6248P)
LED Color Definition
Speed/Link/Act Green Solid The port is operating at 1000 Mbps.
Green Blinking The port is operating at 10/100
Mbps.
Off No link.
FDX Green Solid The PoE powered device is detected
and is operating at normal load.
Speed LEDs
Link/Duplex/Activity
LEDs
Port 1
Port 2
Link/Activity Duplex
