Removing and Installing System Components | 247

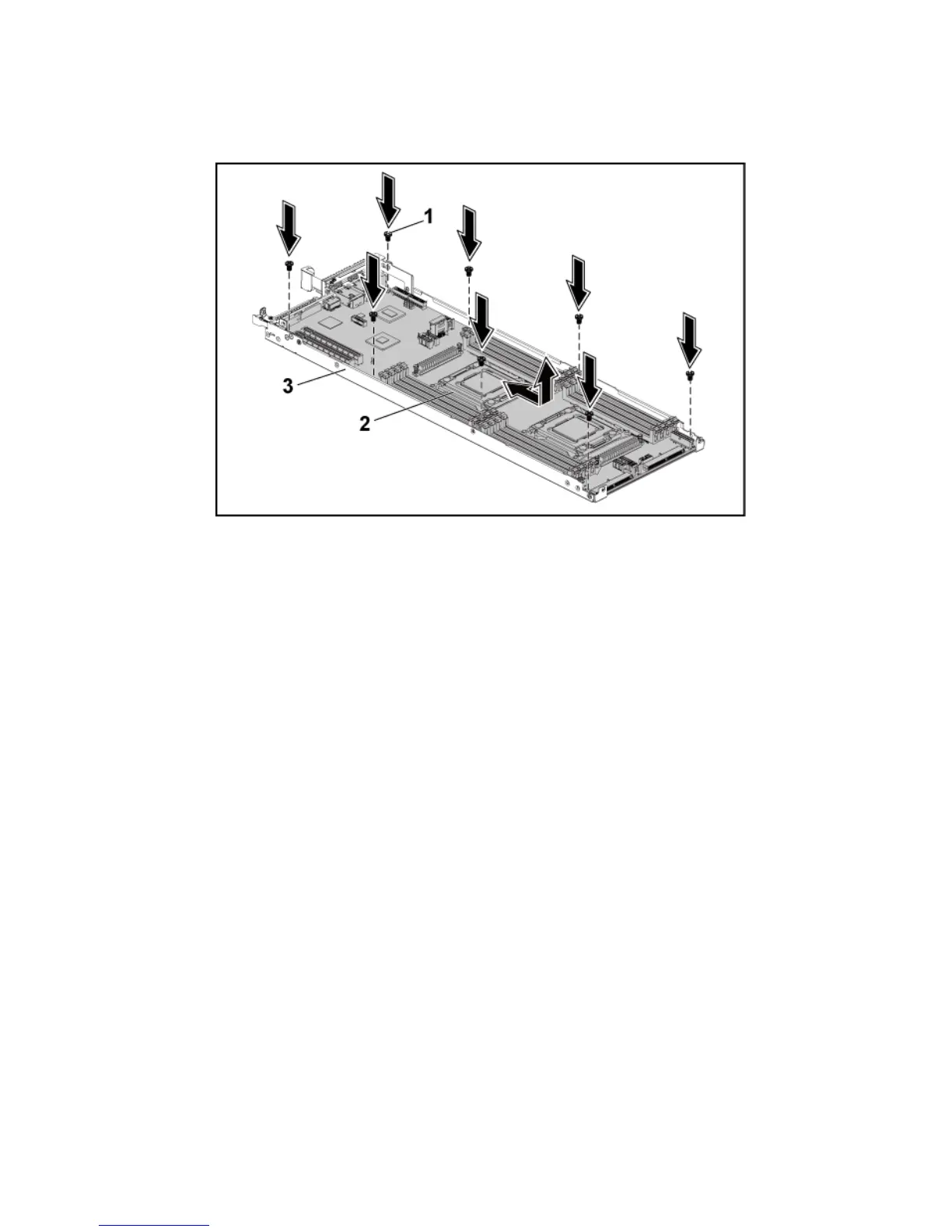

Figure 3-67. Removing and Installing the System Board
1
screw (8)
2
system board
3
system-board assembly
