Dell PowerEdge FC430 - System Board Connectors

System board connectors

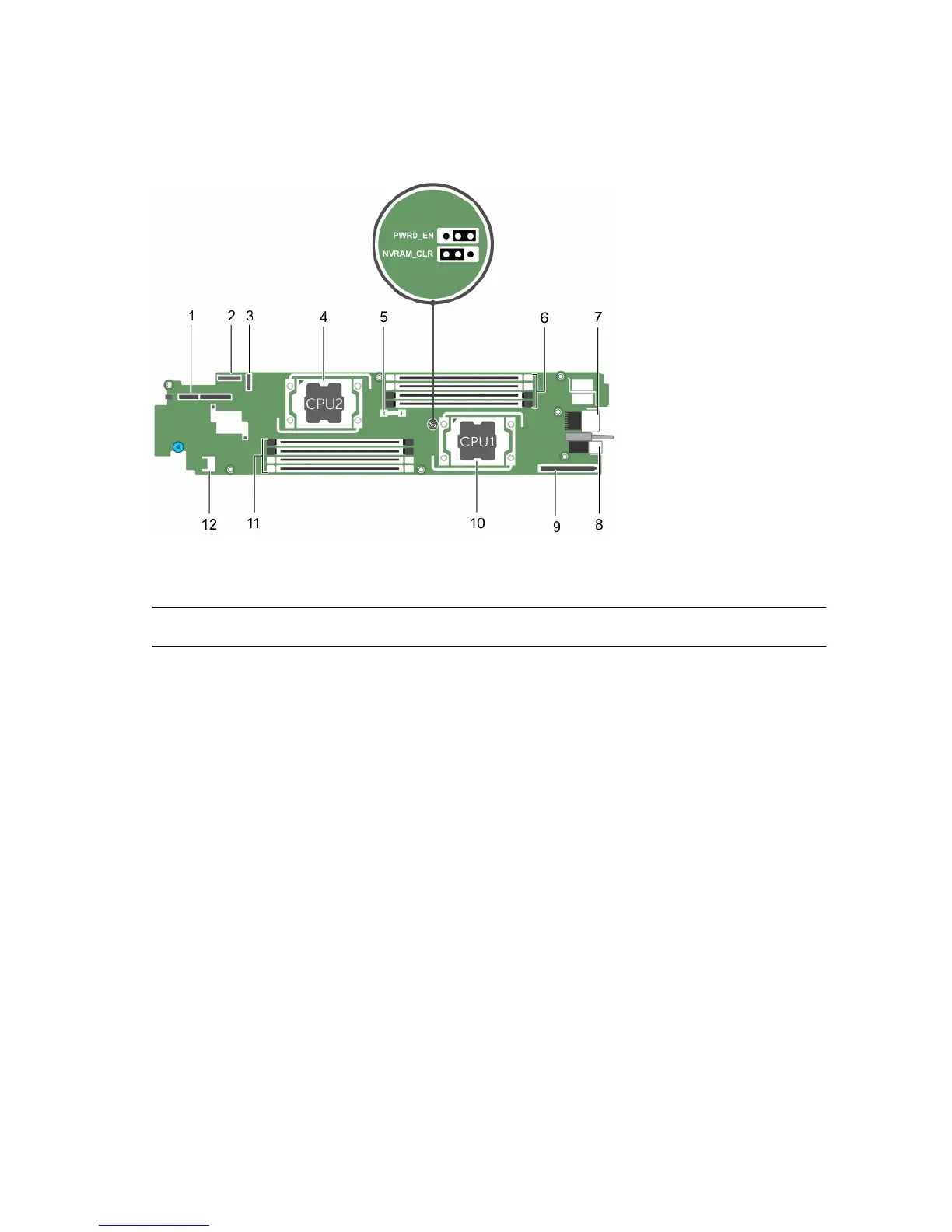

Figure 31. System board connectors
Table 6. System board connectors
Ite
m
Connector Description
1 DCS IB MEZZ PCIe mezzanine card connector
2 J_IDSDM IDSDM/vFlash and USB connector
3 J_SSDBP SSD backplane connector
4 CPU2 Processor socket 2
5 BAT1 System battery
6 A4, A3, A2, A1 Memory module sockets (processor 1)
7 J_MIDPLANE1 Sled connector to the interposer card
8 PWR_CONN Power connector
9 LOM RISER LOM riser card connector
10 CPU1 Processor socket 1
11 B4, B3, B2, B1 Memory module sockets (processor 2)
12 TPM TPM connector
