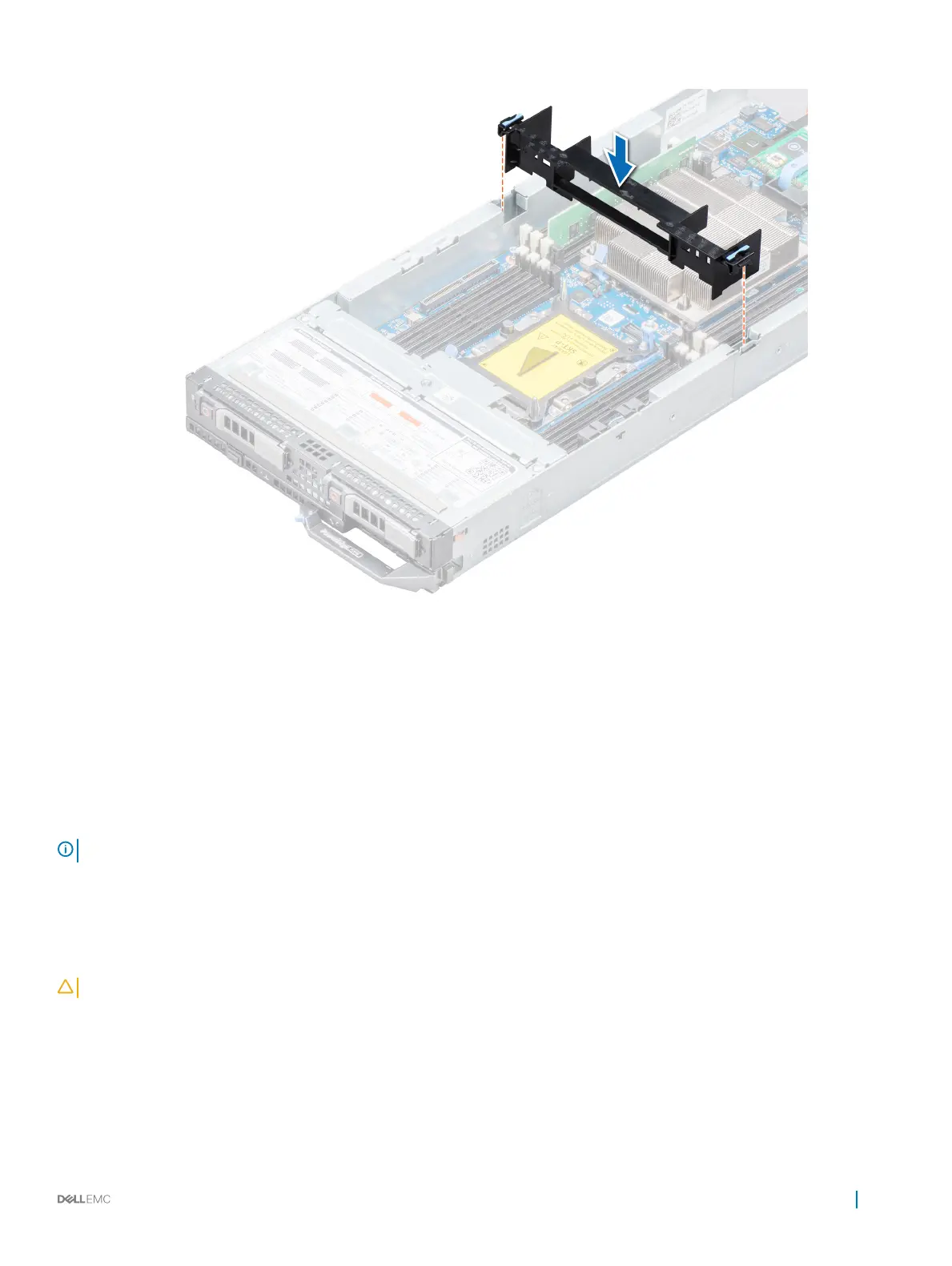

Figure 12. Installing the air shroud
Next step
1 Follow the procedure listed in After working inside your system.
Drives
Your system supports up to two 2.5-inch SAS or SATA hard drives or PCIe SSDs. The hard drives or SSDs are supplied in a hot-swappable
drive carriers that t in the drive bays and these drives connect to the system board through the drive backplane.
NOTE
: Mixing of PCIe SSD, SAS, or SATA drives is not supported.
Removing a drive blank
Prerequisite
CAUTION
: To maintain proper system cooling, all empty drive slots must have drive blanks installed.
Follow the safety guidelines listed in Safety instructions.
Step
Press the release button and slide the drive blank out of the drive slot.
Installing and removing system components
55
