OPERATION
l Server overview
l Network connections
l Configuring ControlNet interface card
4.1 Server overview
l Front view of Dell R320 server
l Rear view of Dell R320 server
4.1.1 Front view of Dell R320 server

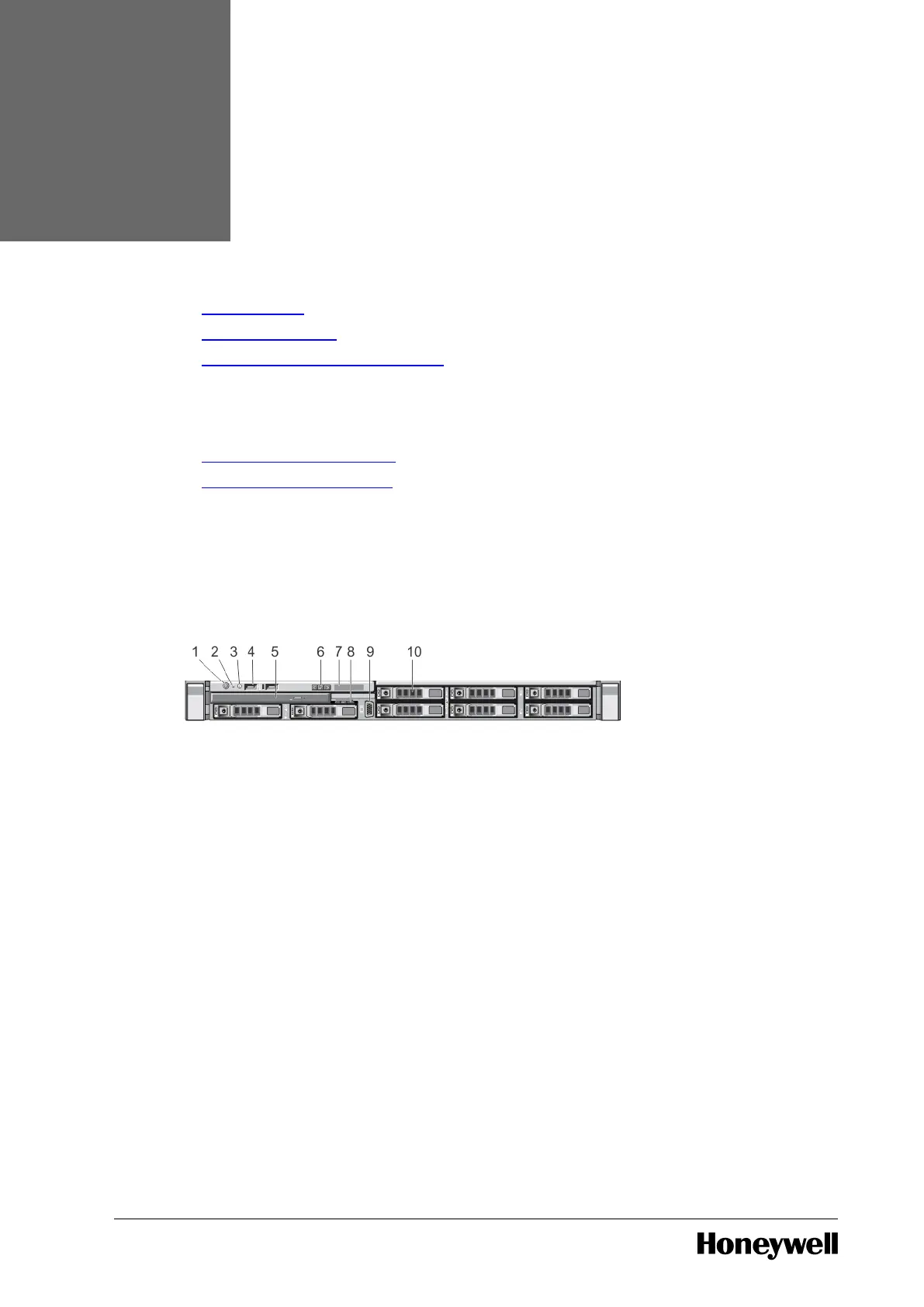

The following image illustrates the front view of the Dell R320 server. These servers are provided with
eight 2.5 inch hard-drive chassis.
Figure 4.1 Front View of Dell R430 Server
The following are the explanation for the items in the images.
1. Power-on indicator, power button
2. NMI button
3. System identification button
4. USB connectors (2)
5. Optical drive (optional)
6. LCD menu buttons
7. LCD panel
8. Information tag
9. Video connector
10. Hard drives
11. Hard drives
4.1.2 Rear view of Dell R320 server
The following image illustrates the rear view of the Dell R320 server.
