Dell PowerEdge R320 - To Add Additional Memory

5.3.2 To add additional memory
1. Remove the power cords from the rear end of the server and wait for 20 seconds.
2. Remove the top cover of the server.

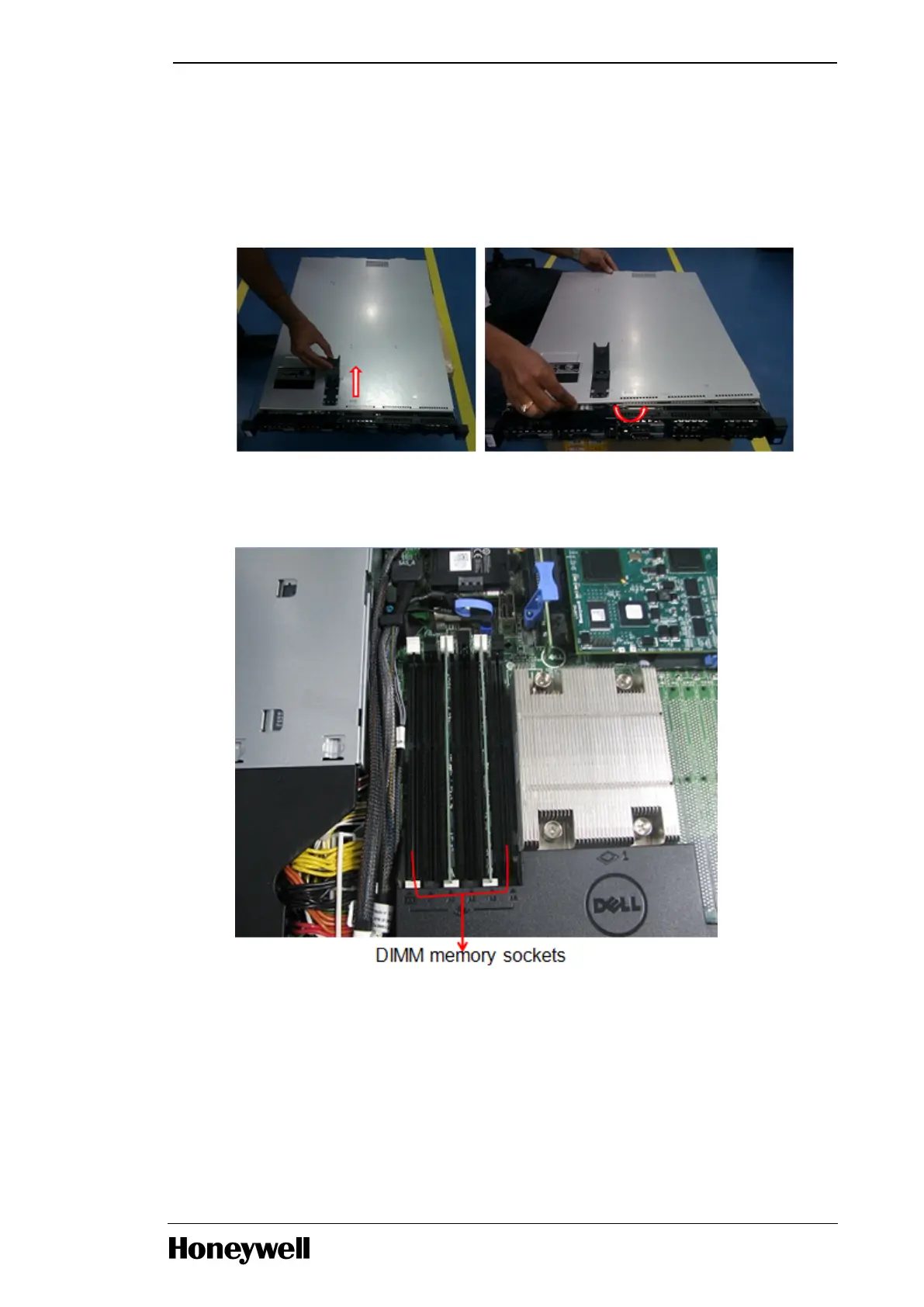

Figure 5.1 Removal of Top Cover
3. The DIMM memory sockets are now exposed.
Figure 5.2 DIMM Memory Sockets
4. While wearing a grounded ESD wrist strap, press the socket ejectors on the memory module
socket down to allow the memory module to be inserted into the socket.
5. Insert the memory module.
Figure 5.3 Installation of Memory Module
- 50 -
Chapter 5 - Servicing
