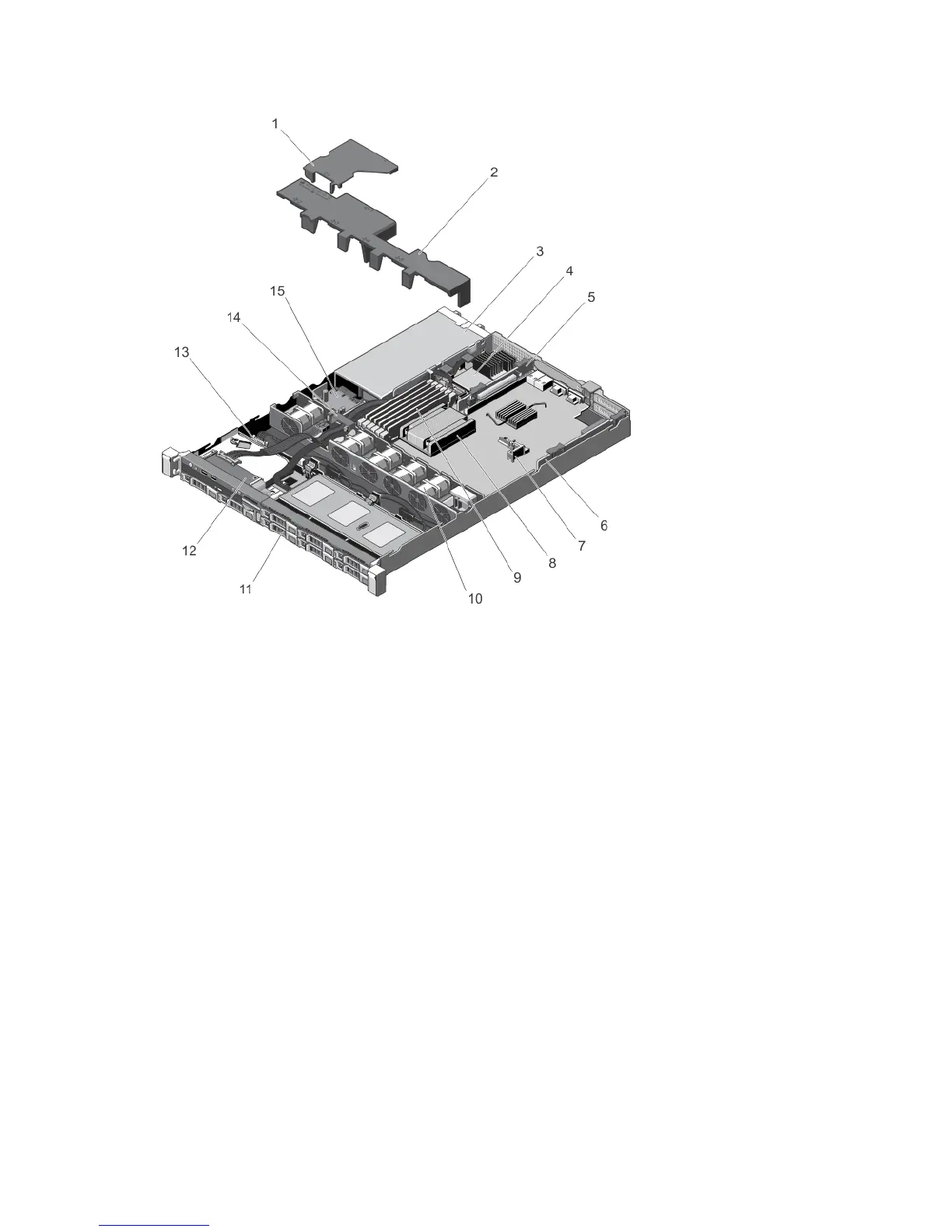

Figure 12. Inside the System—With Redundant Power Supplies
1. power distribution board shroud
2. cooling shroud
3. power supplies (2)
4. integrated storage controller card
5. expansion-card riser 2
6. expansion-card riser 1
7. expansion-card holder
8. processor heat sink
9. DIMMs (6)
10. cooling fans (5)
11. hard drives (8)
12. control-panel board
13. hard-drive backplane
14. cable routing latch
15. power distribution board
