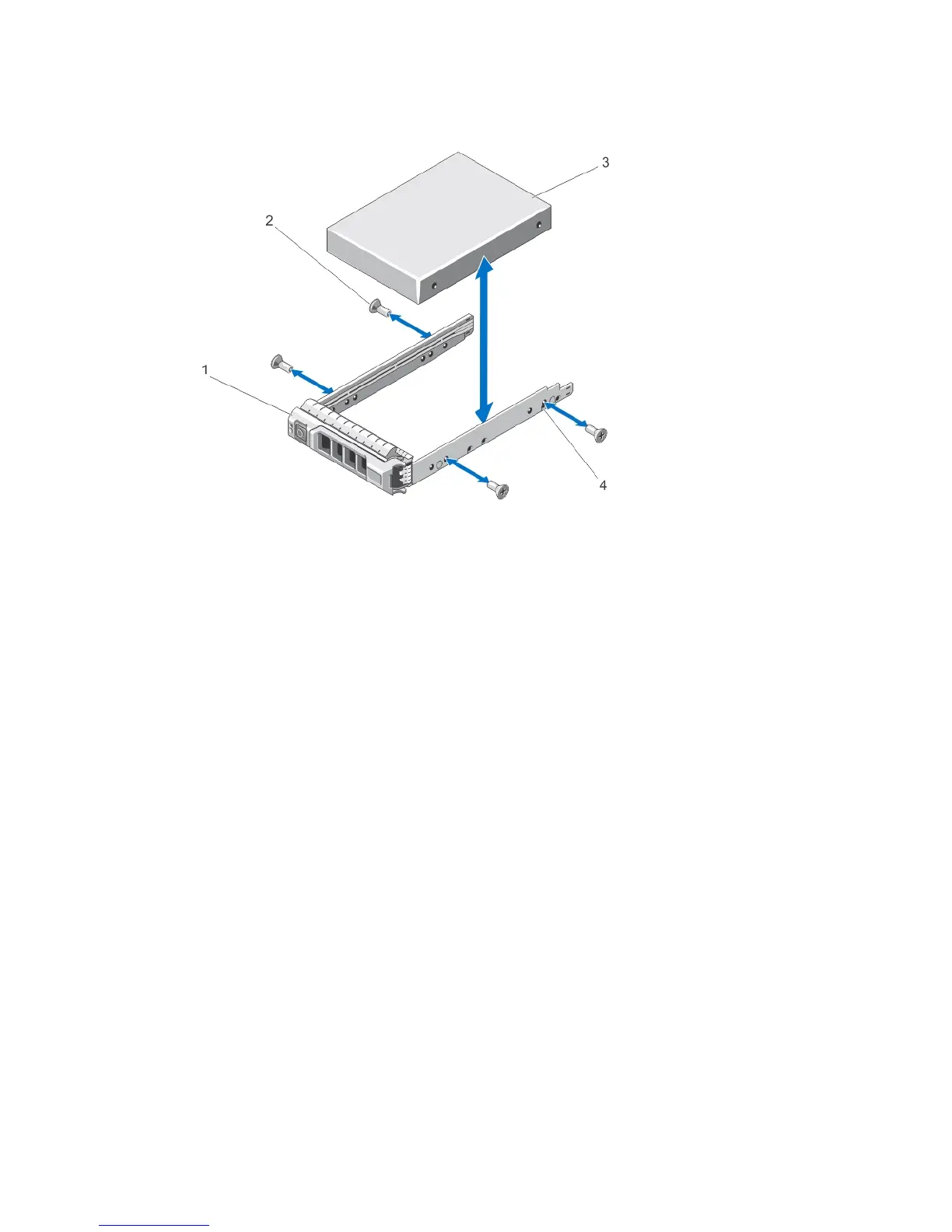

Figure 24. Removing and Installing a Hot-Swap Hard Drive Into a Hard-Drive Carrier
1. hard-drive carrier
2. screws (4)
3. hard drive
4. screw holes (4)
56
