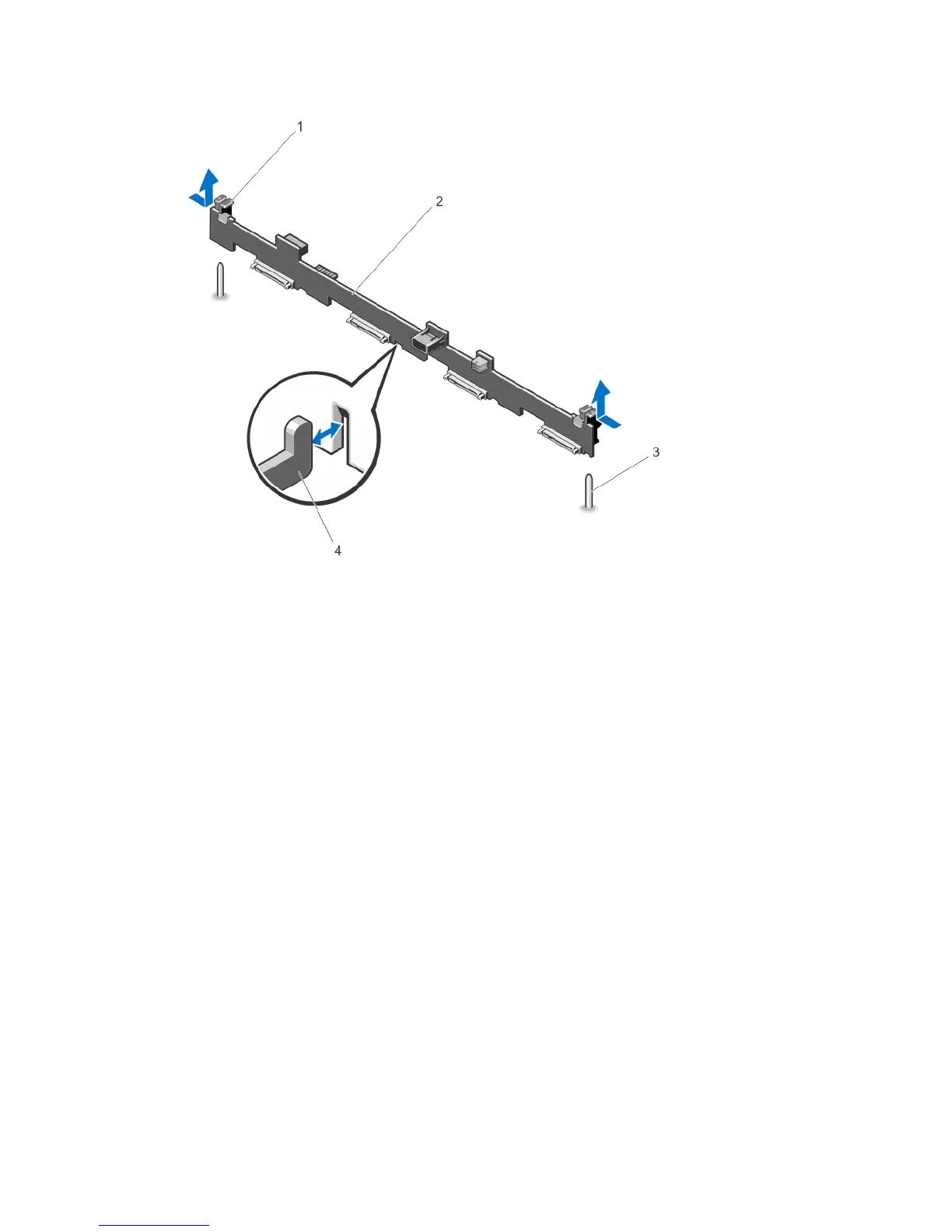

Figure 47. Removing and Installing the Four Hard-Drive Backplane
1. release tabs (2)
2. hard-drive backplane
3. guide pins (2)
4. chassis hooks (4)
86
