Dell PowerEdge R320 - Page 93

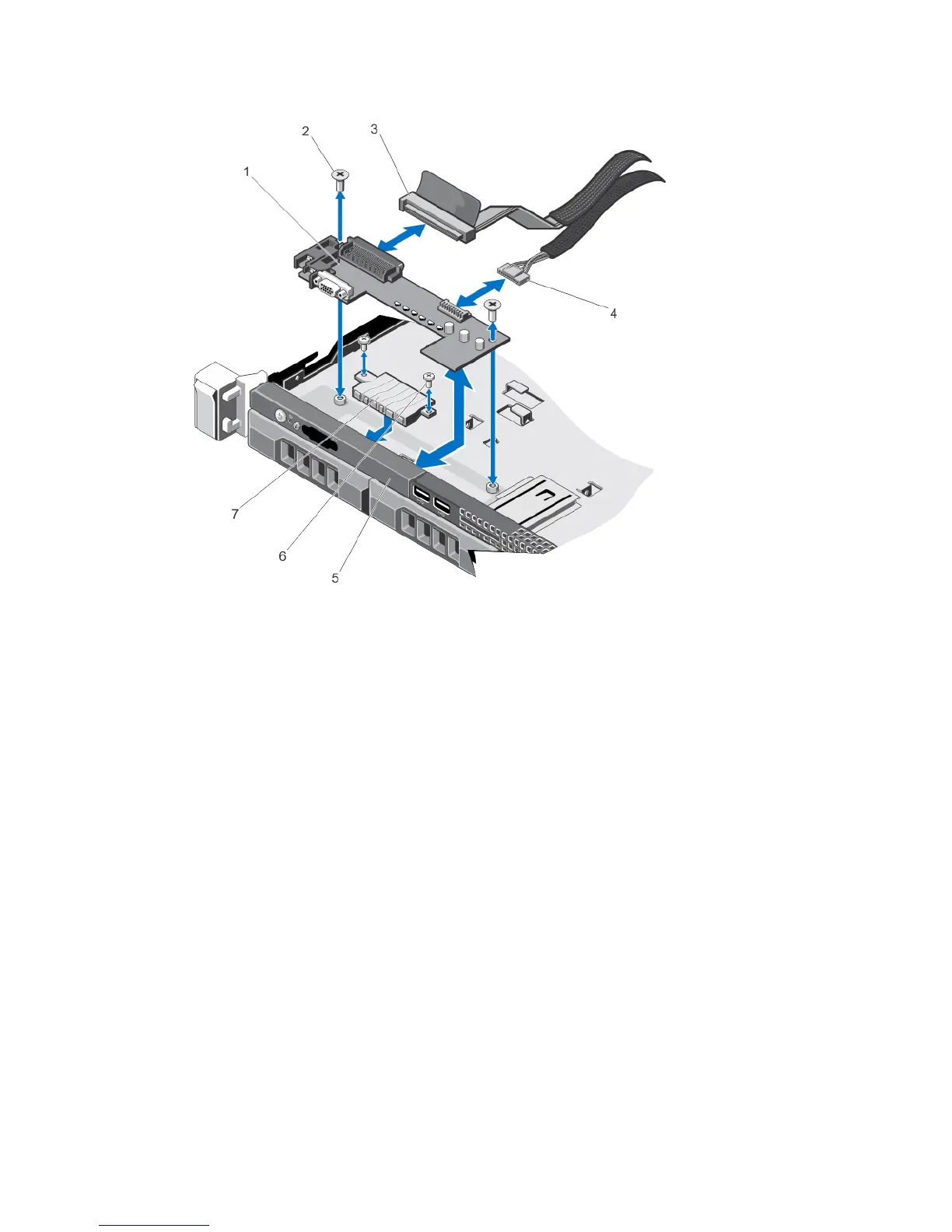

Figure 55. Removing and Installing the Control-Panel Module—3.5 Inch Cabled Hard Drive System
1. control-panel module
2. control-panel module screws (2)
3. control-panel module connector cable
4. USB connector cable
5. control panel
6. LED-panel screws (2)
7. LED panel
93
