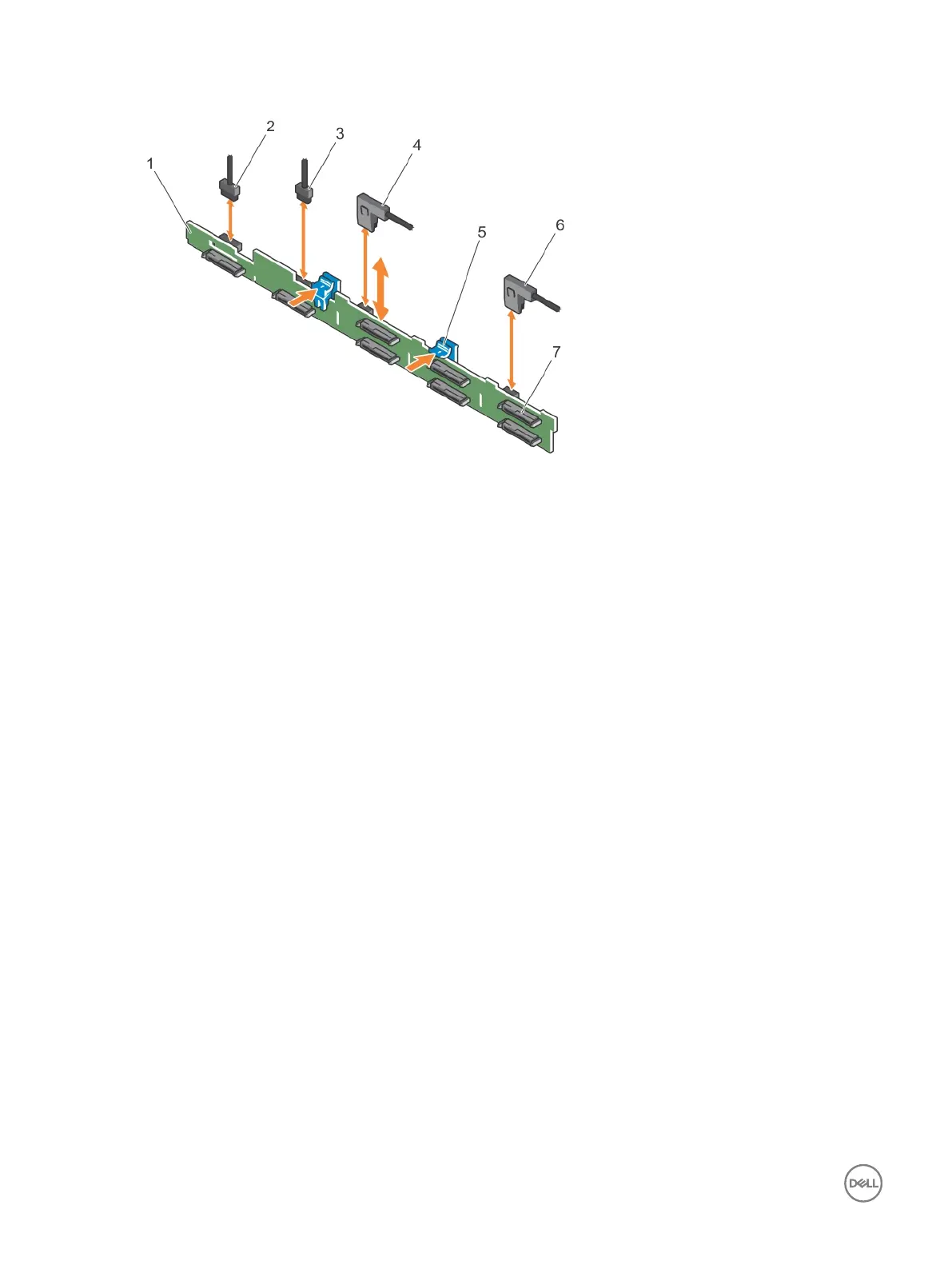

Figure 86. Removing the eight 2.5-inch SAS/SATA backplane
1.
hard drive/SSD backplane 2. backplane power cable
3. backplane signal cable 4. SAS A cable connector
5. release tab (2) 6. SAS B cable connector
7. hard drive or SSD connector (8)
