PowerEdge R510 Technical Guide 23
This hierarchy dictates that connections that are lower in the hierarchy be disabled anytime a higher level
connection is disabled.
4.3.6 DVD/CD
If present, the DVD/CD drive has an eject mechanism and a green activity LED. The eject mechanism is
functional with or without power.
4.3.7 Hard Drive Activity LED
The PowerEdge R510 systems have a single (common) green hard drive activity LED that lights when the
system is accessing data on the drive. These systems do not have Status LEDs.
4.3.8 Key Lock
All PowerEdge servers have key locks on their front bezels to prevent access to the systems resources.
There is a single key lock implementation with a single key code across all PowerEdge tower and rack
servers.
Key orientation is as follows: Vertical (12 o'clock) position is unlocked. Right (3 o'clock) position is locked.
For rack systems, the bezel locks all front panel access.

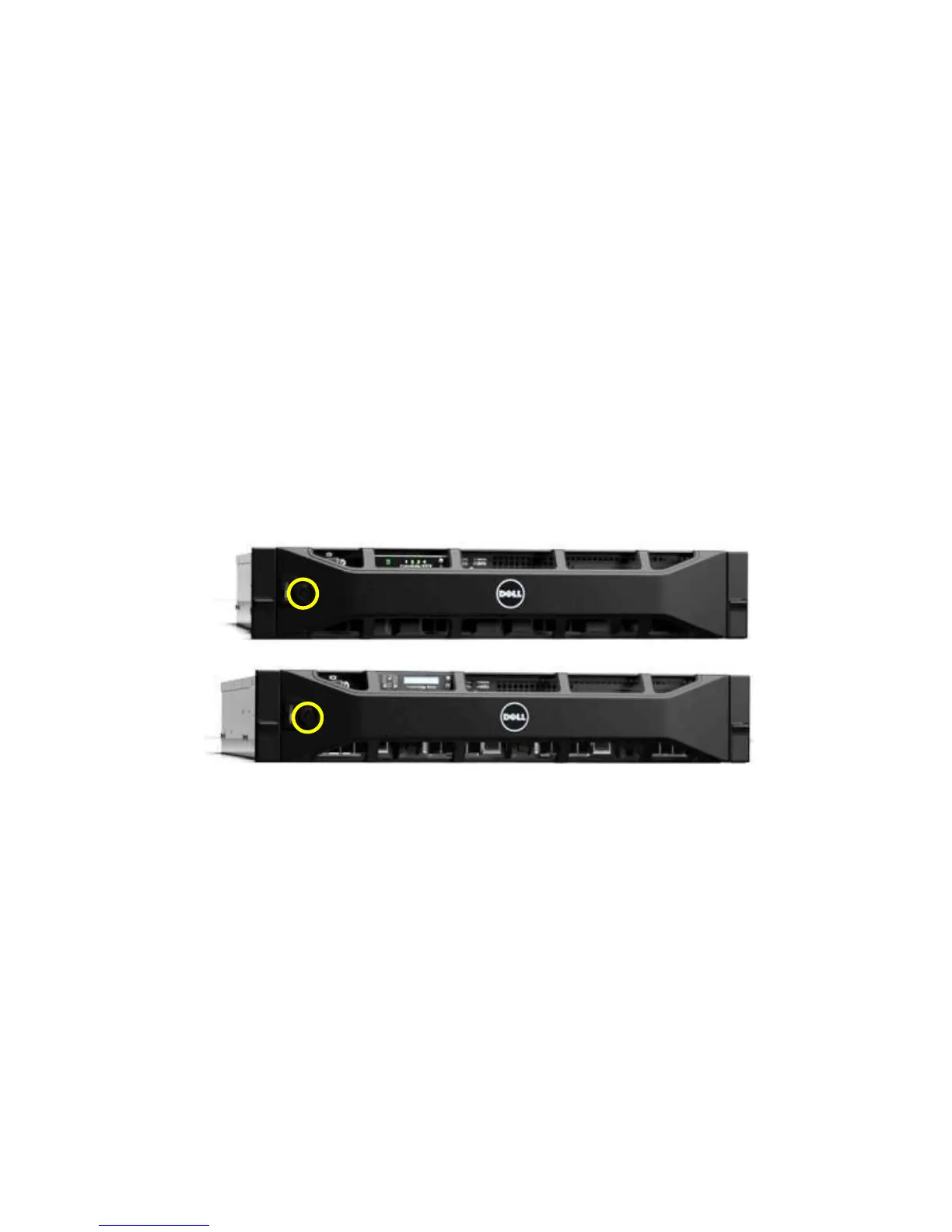

Figure 8. Bezel Lock on Front Access Panel
