4.11.3 Intrusion Switch
The intrusion switch is located inside the chassis under the top cover. The switch alarms if the top cover is
opened while the power is on.
4.11.4 Top Cover
The top cover latch has a coin lock.
4.12 USB Key
R510 supports 2 internal USB connectors that can be used for USB keys. The PowerEdge R510 (4 and 8)
internal USB connectors are located at the front control board as shown in the following two figures (circled in
red).

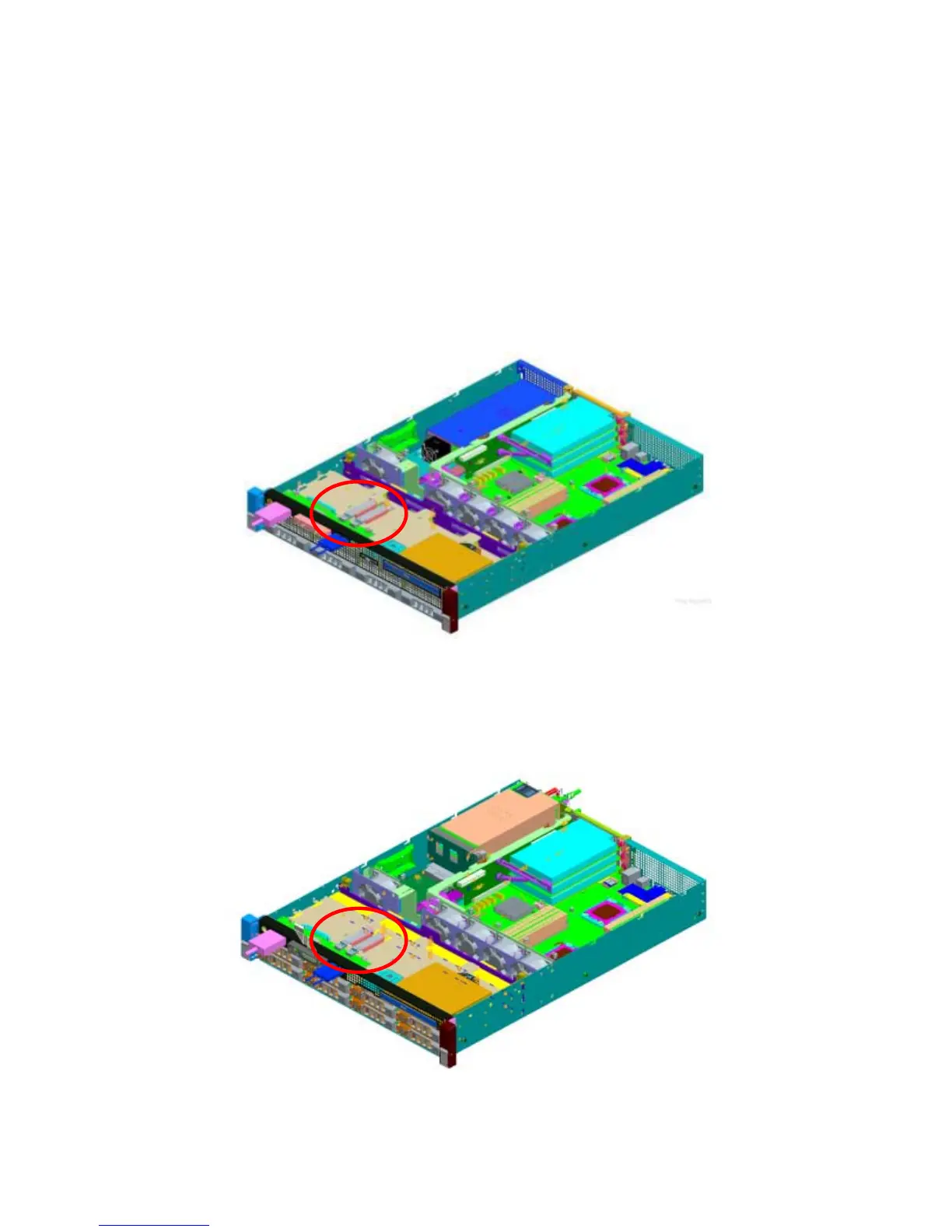

Figure 25. PowerEdge R510–4 Internal USB Connector
Figure 26. PowerEdge R510–8 Internal USB Connector
