3. screws (4)
4. power-interposer board
5. release tab
6. power-distribution board connector

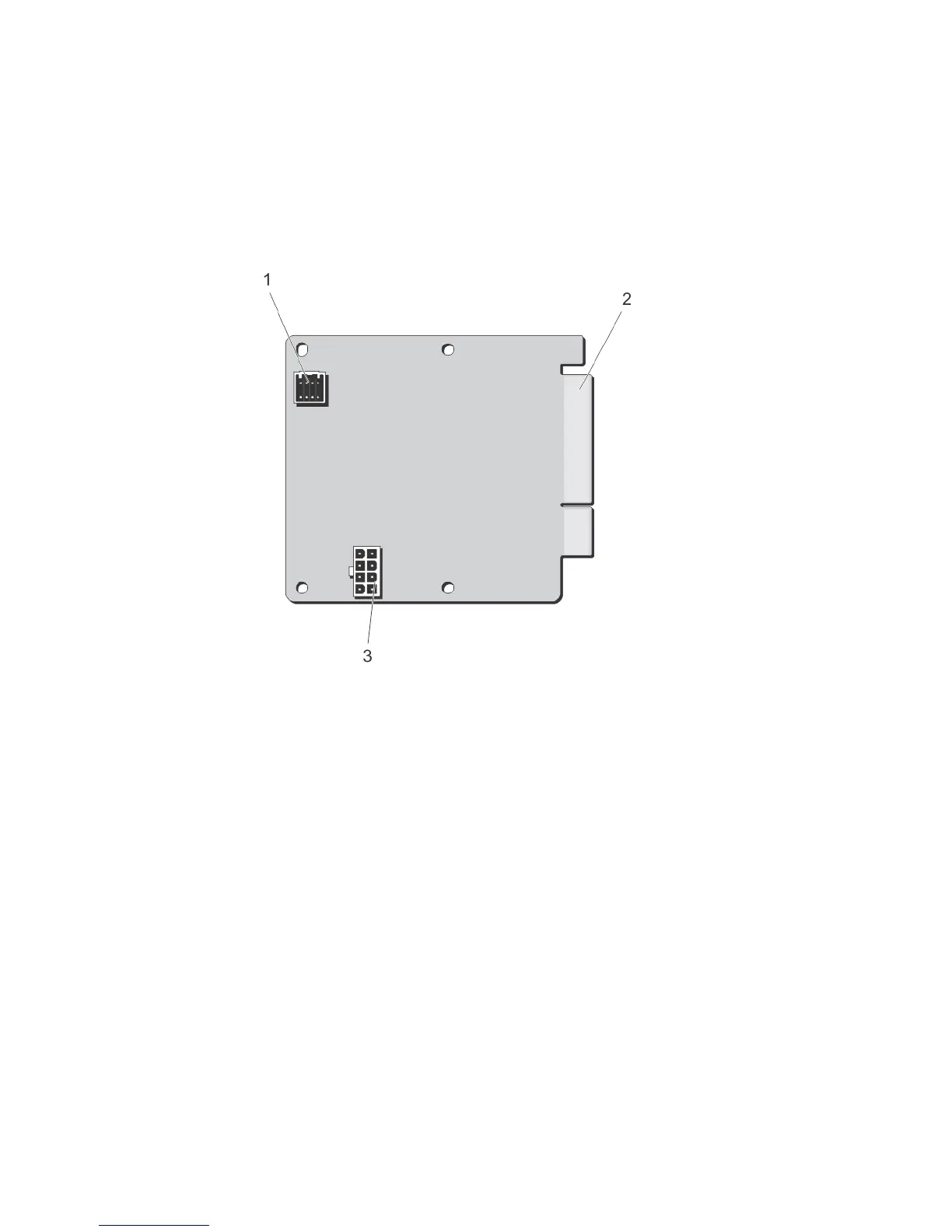

Figure 46. Power-Distribution Board Connectors
1. fan 6 cable connector
2. power-distribution board connector
3. 8-pin power connector
