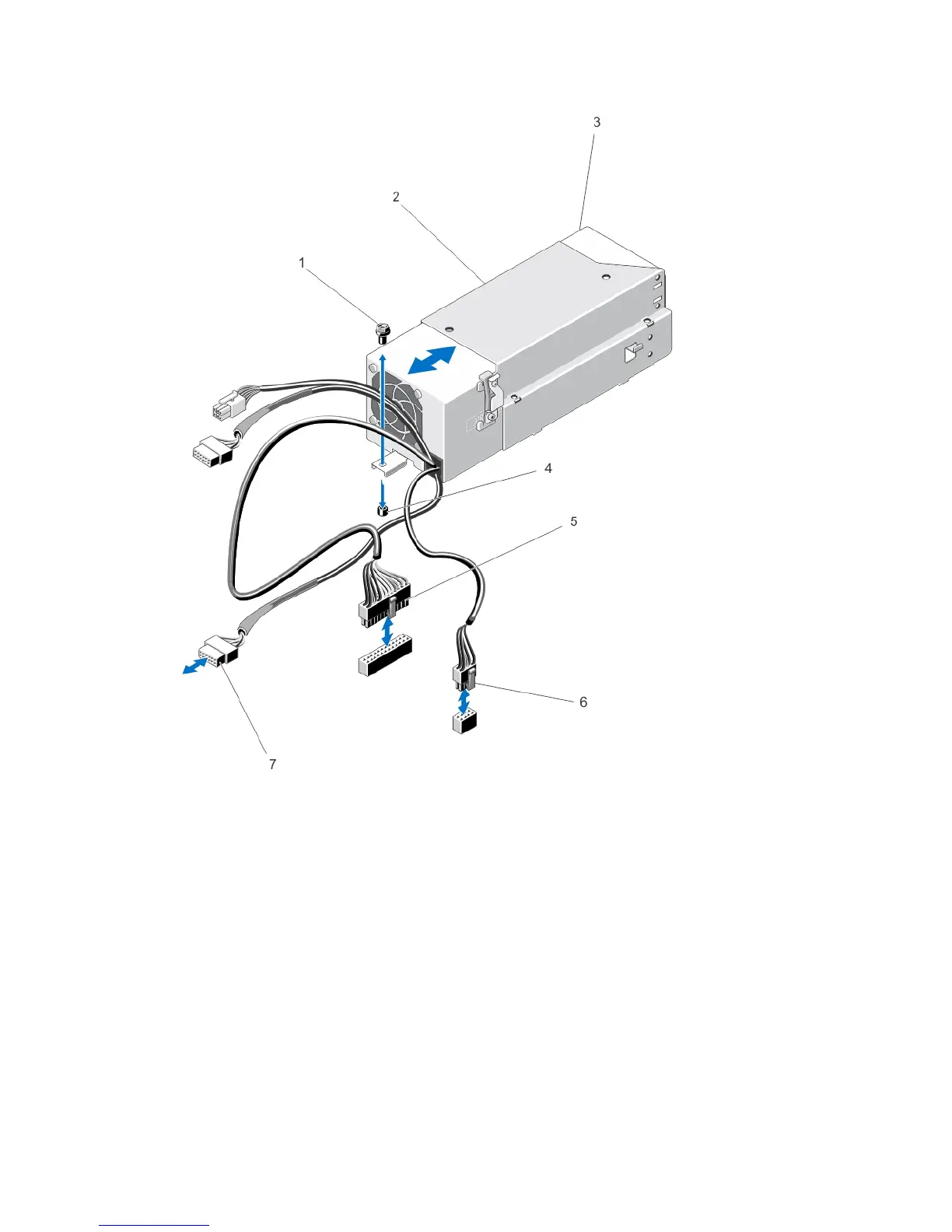

Figure 48. Removing and Installing a Non-Redundant Power Supply
1. chassis screw
2. power supply unit cage
3. power supply
4. standoff on the chassis
5. power cable (24 pins)
6. power cable (8 pins)
7. hard-drive backplane power cable
