Dell PowerEdge R520 - Page 92

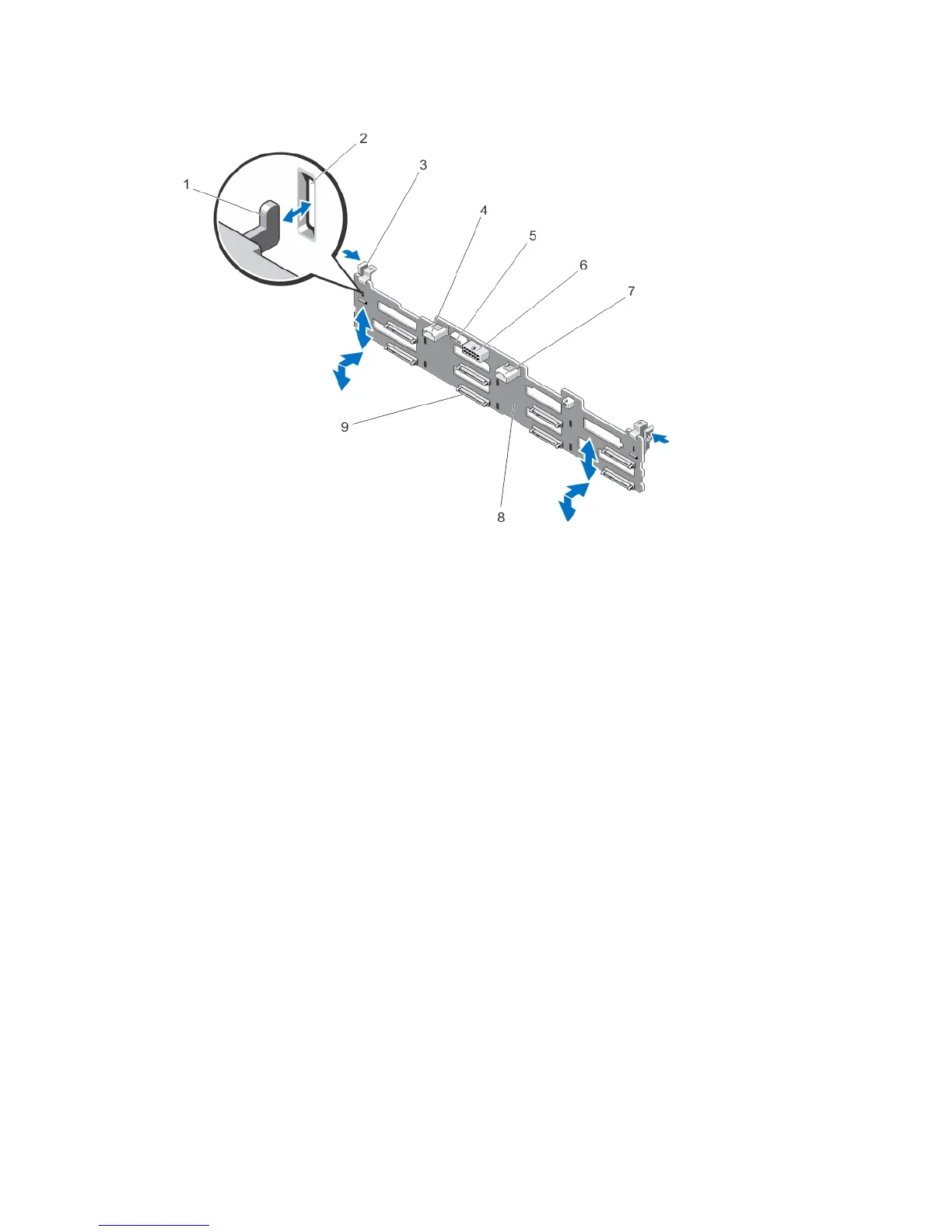

Figure 51. Removing and Installing the Hard-Drive Backplane
1. securing hooks
2. securing slot
3. release tabs (2)
4. SAS A connector
5. backplane signal connector
6. backplane power connector
7. SAS B connector
8. hard-drive backplane
9. hard-drive connectors (8)
92
