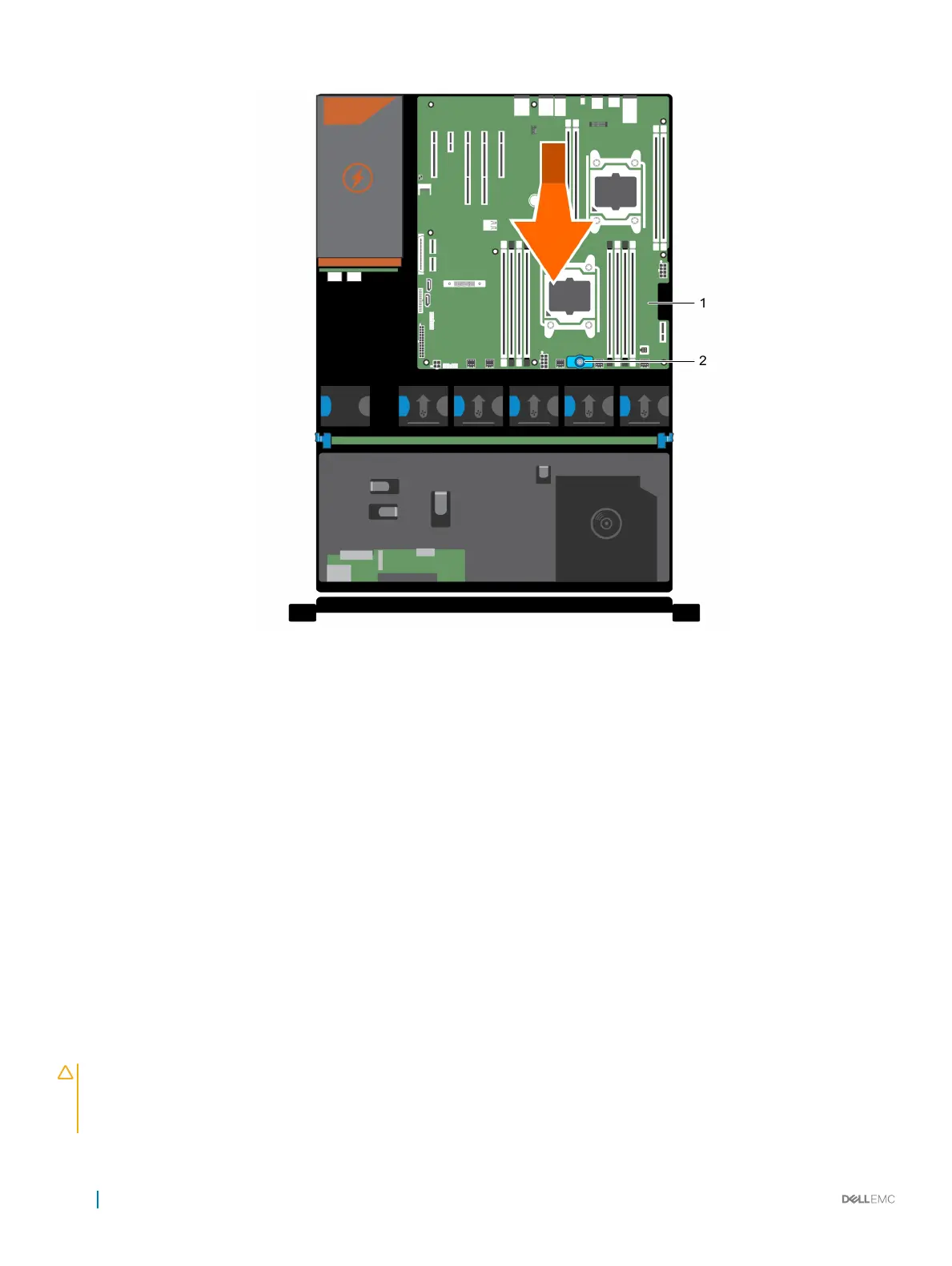

Figure 86. Removing the system board
1
system board 2 system board holder
Related link
Safety instructions
Before working inside your system
After working inside your system
Removing the cooling shroud
Removing the optional expansion card riser
Removing an AC power supply unit
Removing an internal SD card
Replacing the optional internal USB memory key
Removing a processor
Removing a memory module
Installing the system board
Prerequisites
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
