Video
The Dell PowerEdge R630 iDRAC8 incorporate an integrated video subsystem. The graphics controller is the 2D Matrox G200.
The video frame buffer (16MB) is contained within the iDRAC RAM (256MB) device.
The following table lists the 2D graphics supported video mode on R630 systems.
Supported Video Modes
Resolution Refresh Rate (Hz) Color Depth (bit)
640 x 480 60, 70 8, 16, 32
800 x 600 60, 75, 85 8, 16, 32
1024 x 768 60, 75, 85 8, 16, 32
1152 x 864 60, 75, 85 8, 16, 32
1280 x 1024 60, 75 8, 16, 32
1440 x 900 60 8, 16, 32
Trusted Platform Module
The Trusted Platform Module (TPM) is used to generate and store keys, protect or authenticate passwords, and create and
store digital certificates. The TPM can also be used to enable the Microsoft BitLocker hard drive encryption feature in Microsoft
Windows Server 2008 and newer OS versions.

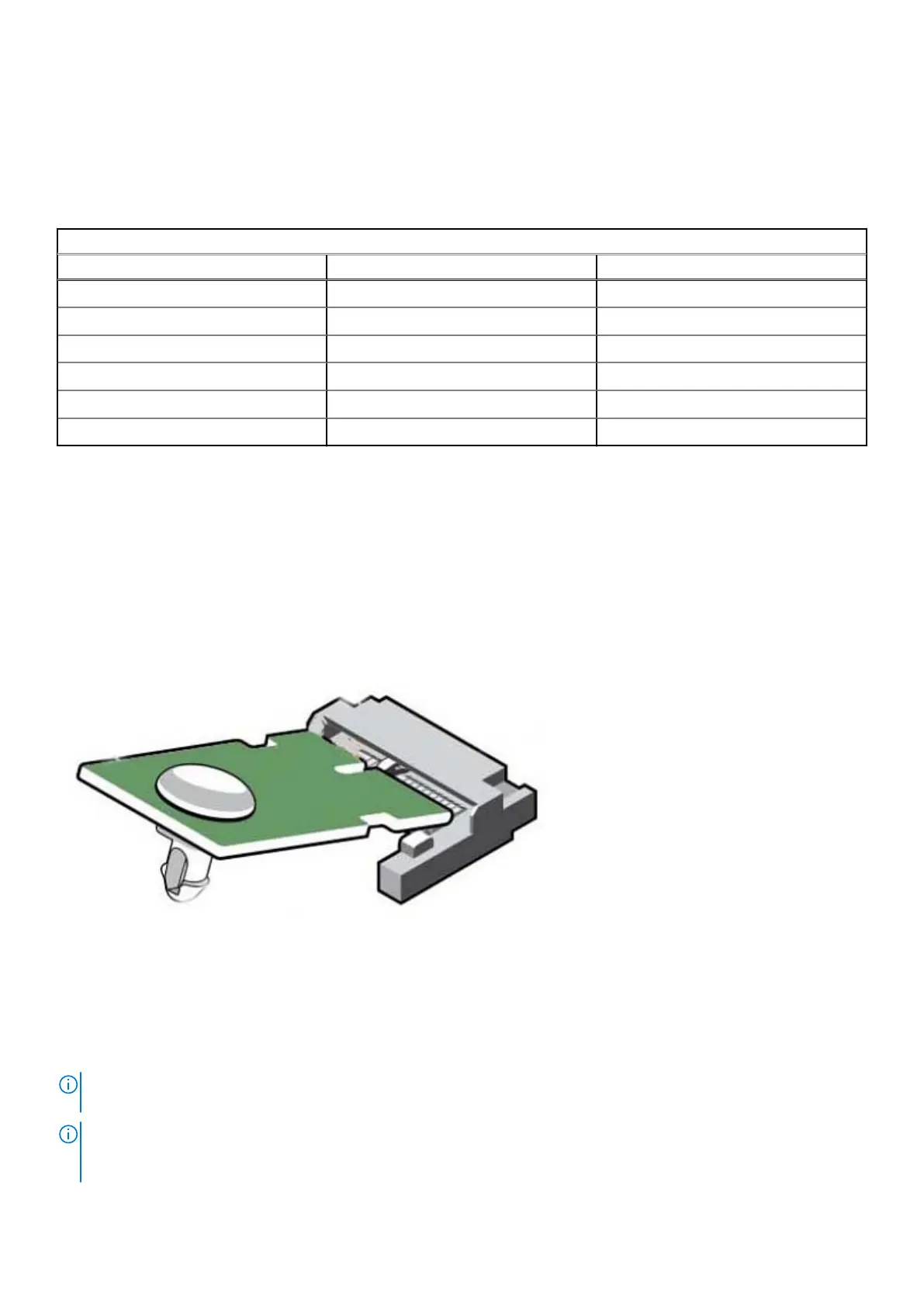

In 13th generation servers, the TPM chip is on the Plug-in Module (PIM). Unlike in 12 generation servers, the TPM chip is
soldered on the system board. The 13 generation TPM has to be bounded to only one system board.
The system board has a connector for the plug-in module and it is factory-installed.
There are five types of TPM chip options:
● No TPM
● TPM 1.2 FIPS Nuvoton
● TPM 1.2 non FIPS Nuvoton
● TPM 2.0 ROW Nuvoton (Post-RTS)
● TPM 2.0 China NationZ (Post-RTS)
NOTE:
TPM is an optional module for your system and is only available from the factory. It is not offered After Point of
Sales (APOS).
NOTE: In a scenario where both the control panel and system board are dispatched, it is recommended to replace the
control panel first and attempt a power-on to complete the Easy Restore process (Service Tag, licenses, copy to the new
control panel). Then, proceed to replace the system board.
Technology and Components 173
