Quick Sync indicator codes

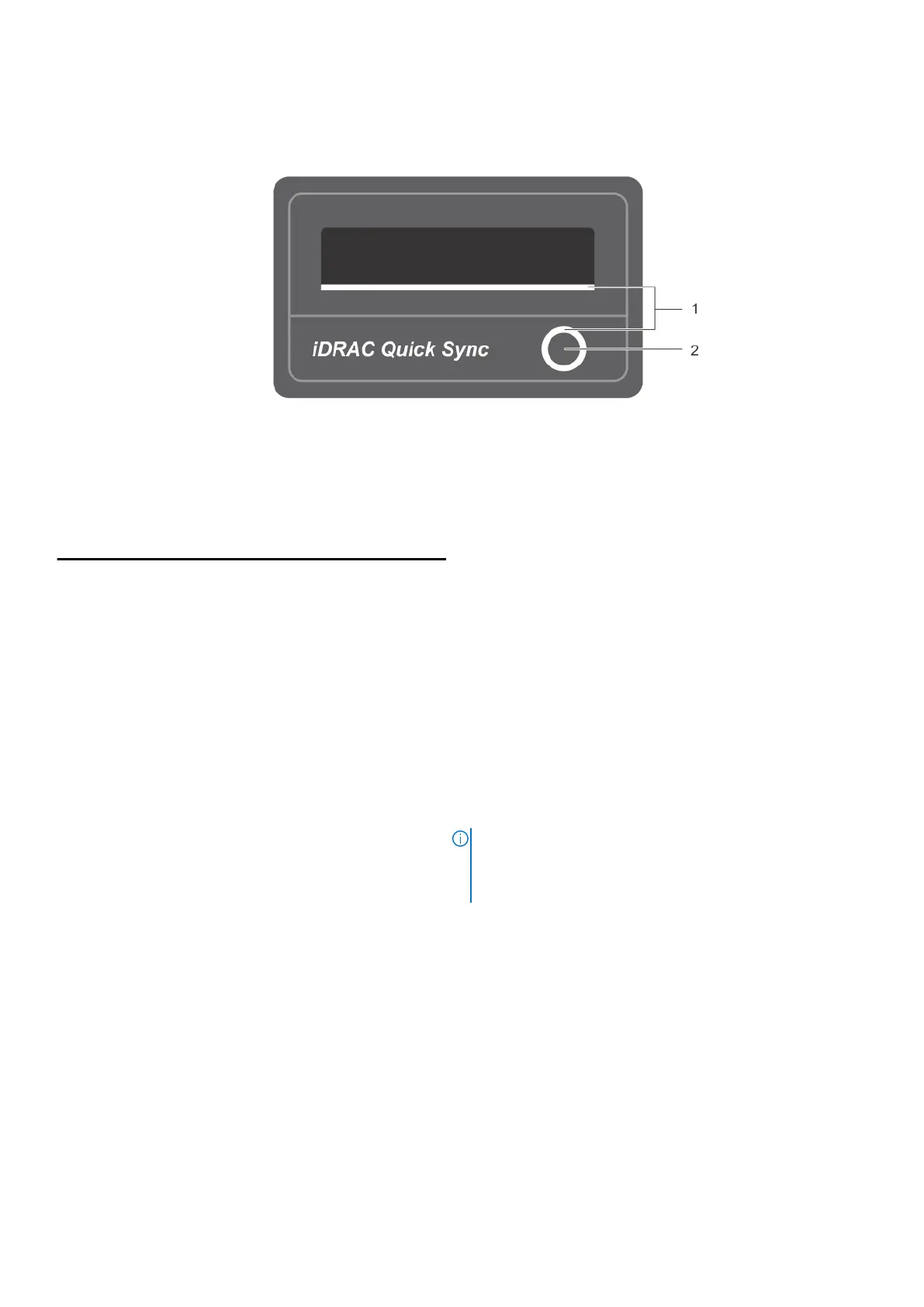

Figure 14. Quick Sync indicator codes
1. Quick Sync status indicator
2. Quick Sync activation button
Table 15. Quick Sync indicator codes
Power indicator pattern Condition
Slow flash
Indicates that Quick Sync is waiting to be configured from
iDRAC.
Solid Indicates that Quick Sync is ready to transfer.
Flashes three times rapidly and then turns off Indicates that the Quick Sync feature is disabled from iDRAC.
Flashes continuously when the mobile device touches the
antenna
Indicates data transfer activity.
Flashes rapidly five times and turns off for one second
when the activation button is pressed. This pattern is
repeated until the activation button is pressed again.
Indicates that the Quick Sync hardware is not responding
properly. Reseat the bezel. If the problem persists, see Getting
help section.
Off Indicates that the Quick Sync feature is turned off. Use the
activation button to enable it. If pressing the activation button
does not turn on the LEDs, it indicates that power is not
delivered to the Quick Sync bezel.
NOTE: For security purposes, Quick Sync turns off after 30
seconds of inactivity after the activation button is pressed.
After timed-out, the user is expected to press the activation
button again to activate Quick Sync.
Related references
Getting help
Locating service tag of your system
Your system is identified by a unique Express Service Code and Service Tag number. The Express Service Code is and Service
Tag are found on the front of the system by pulling out the information tag. Alternatively, the information may be on a sticker on
the chassis of the system. This information is used by Dell to route support calls to the appropriate personnel.
