Dell PowerEdge R730 - System Board Connectors

System board connectors

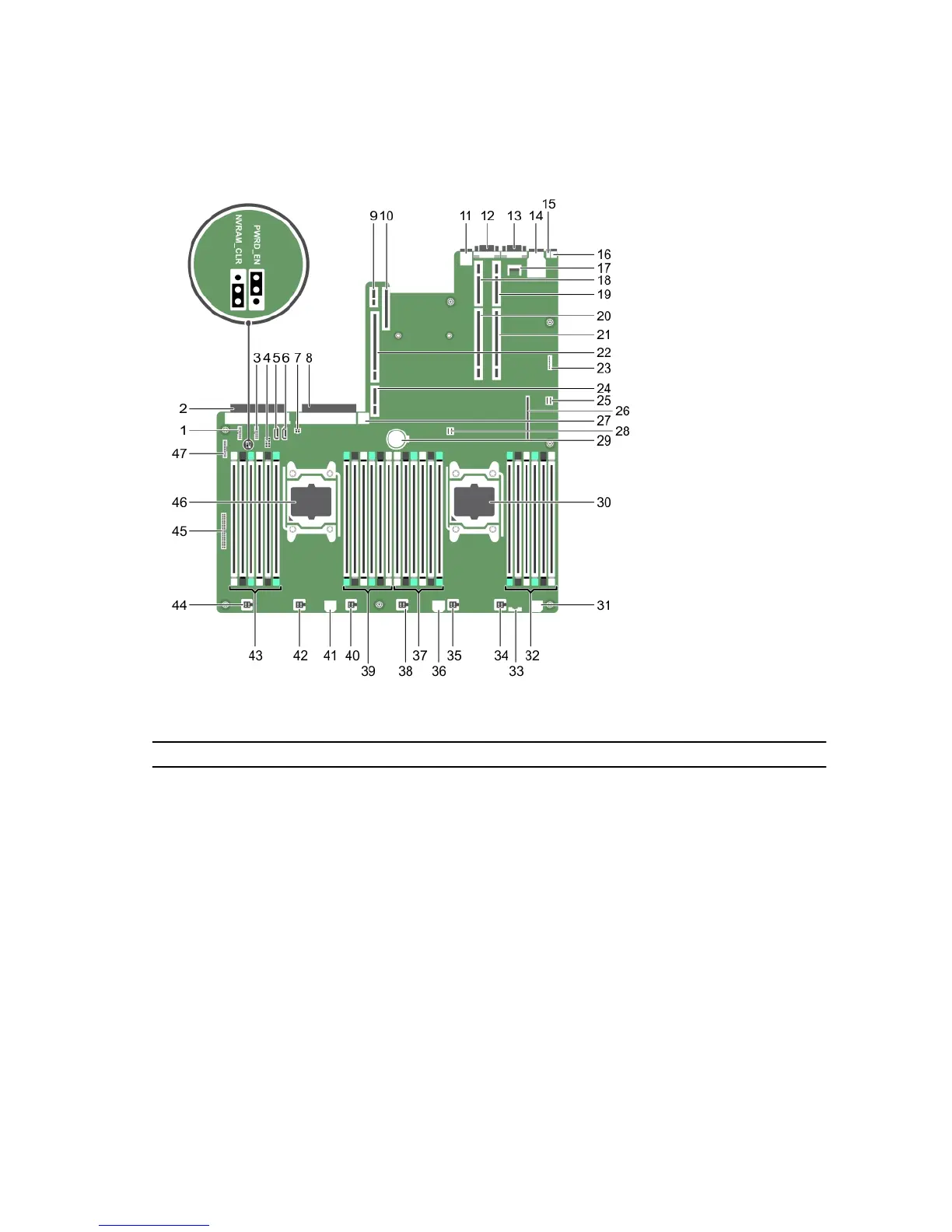

Figure 98. System board jumpers and connectors
Item Connector Description
1 J_BP_SIG1 Backplane signal connector 1
2 J_PS_2 PSU 2 connector
3 J_BP_SIG0 Backplane signal connector 0
4 J_BP0 Backplane power connector 0
5 J_SATA_CD Optical drive SATA connector
6 J_SATA_TBU Tape backup unit SATA connector
7 J_TBU Tape backup unit power connector
8 J_PS_1 PSU 1 connector
9 J_IDSDM Internal dual SD module connector
10 J_NDC Network daughter card connector
