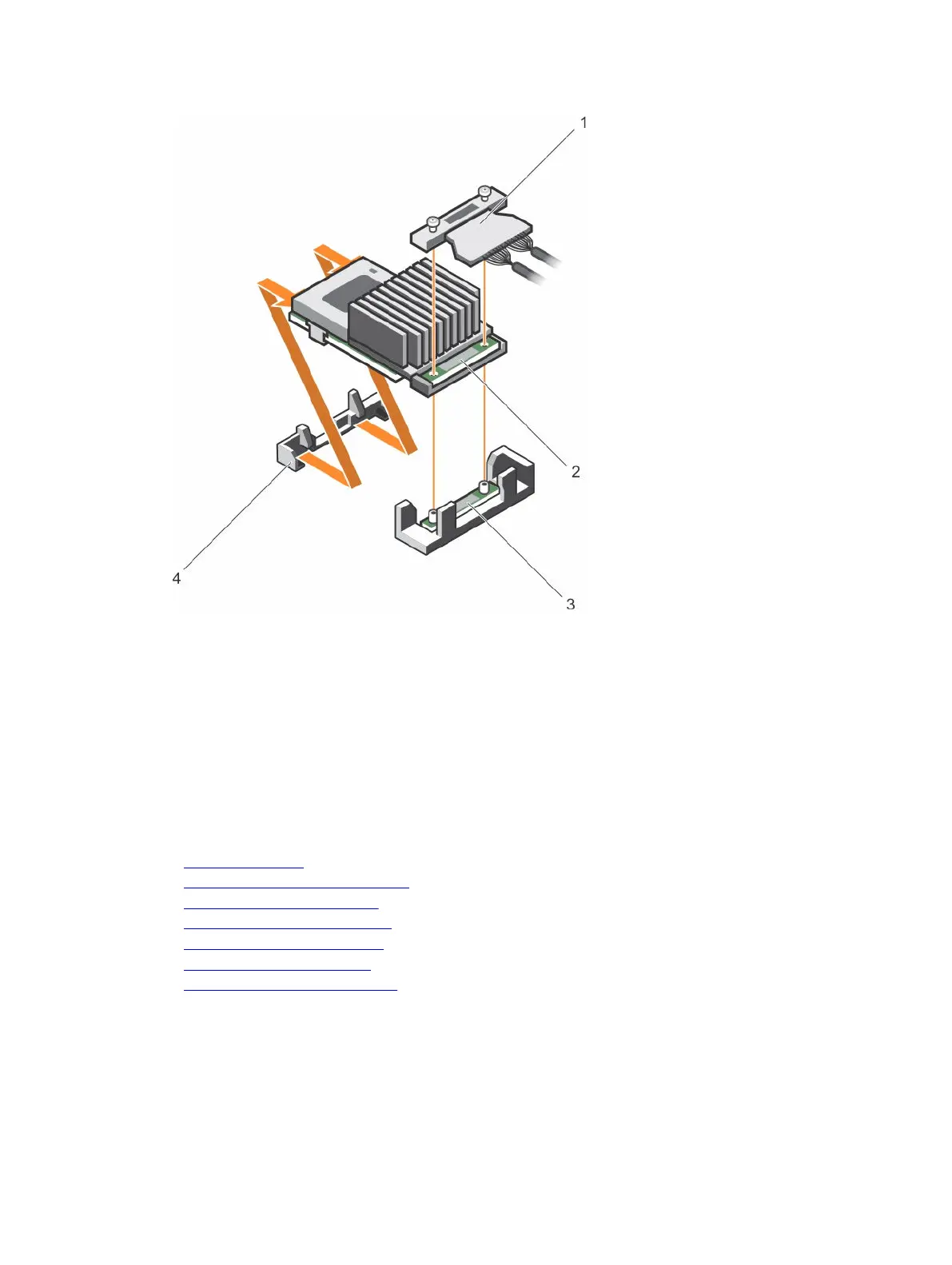

Figure 50. Removing the integrated storage controller card
1. integrated storage controller cable 2. integrated storage controller card
3. integrated storage controller card
connector on the system board
4. integrated storage controller card
holder
Next steps
1. Install the expansion card riser 1.
2. Install the cooling shroud.
3. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Removing the cooling shroud
Removing expansion card risers
Installing expansion card risers
Installing the cooling shroud
After working inside your system
