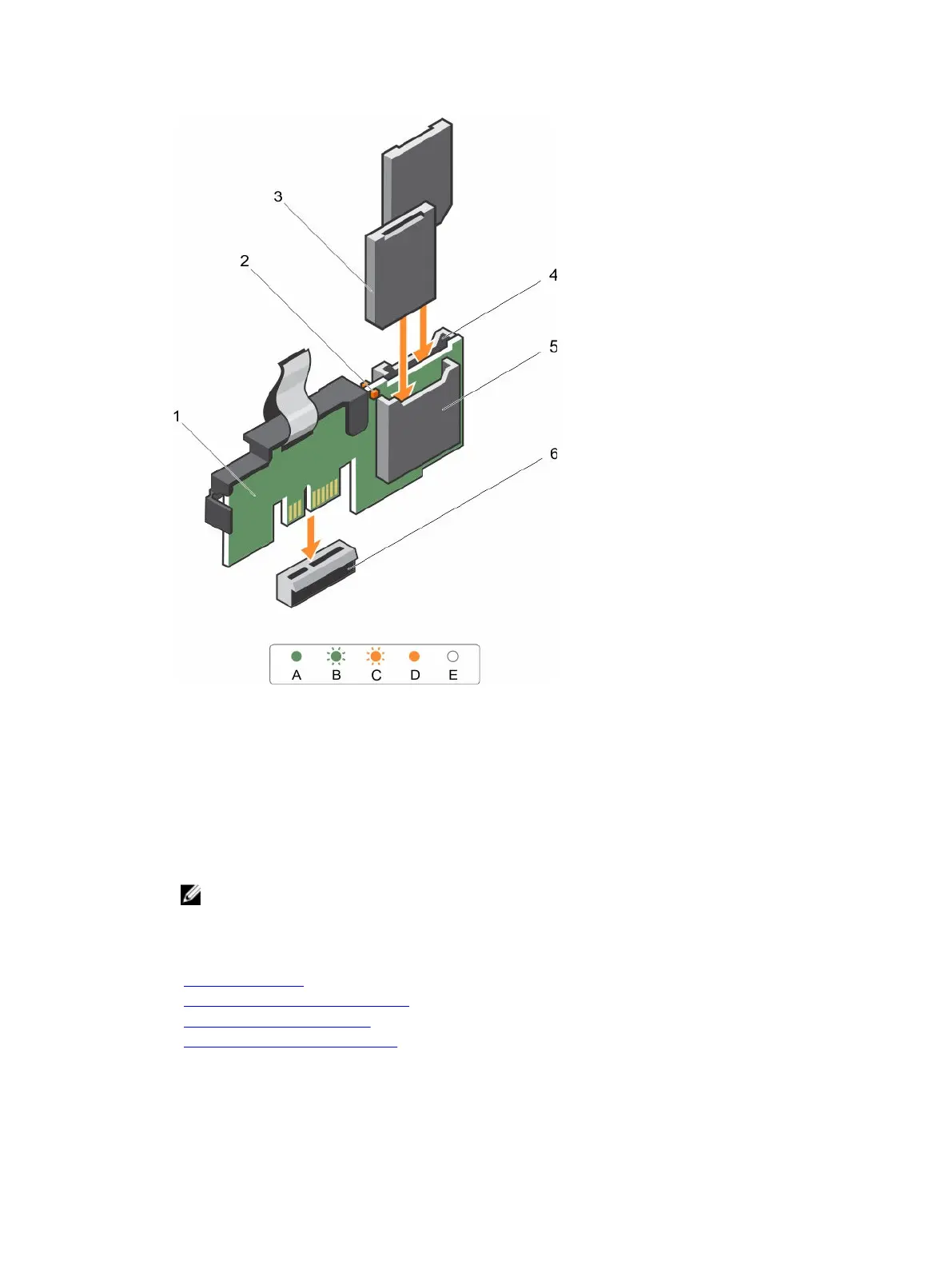

Figure 69. Installing the optional internal dual SD module
1. Internal Dual SD module 2. LED status indicator (2)
3. SD card (2) 4. SD card slot 2
5. SD card slot 1 6. IDSDM connector
Next steps
1. Install the SD cards.
NOTE: Re-install the SD cards into the same slots based on the labels you had marked on the
cards during removal.
2. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Installing an internal SD card
After working inside your system
