Installing System Components 105

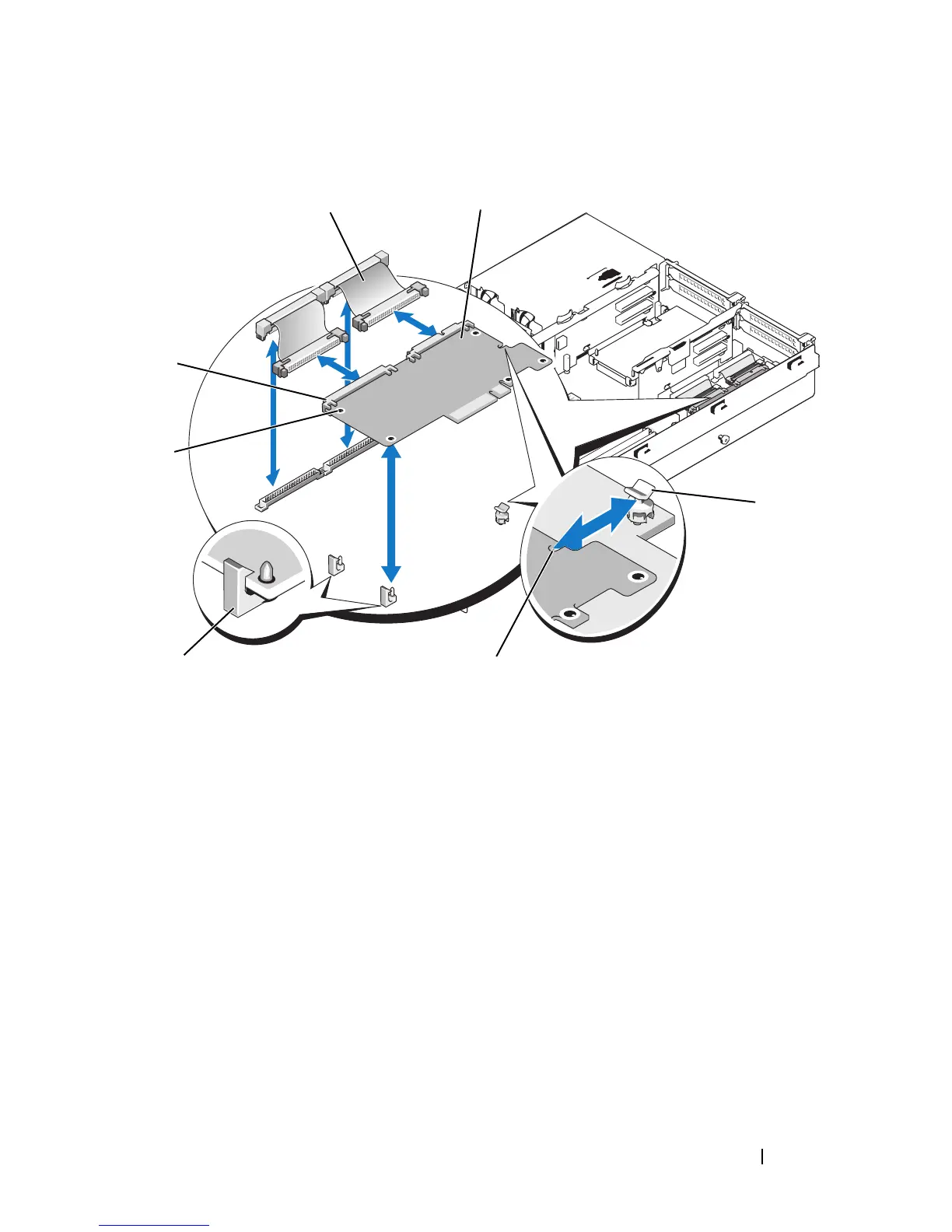

Figure 3-20. Removing and Installing a RAC Card
6 Pull back slightly on one of the blue retention standoff tabs and gently
work the edge of RAC card off of the standoff. Repeat for the other
retention standoff.
7 Angle the free end of the RAC card up and pull the card away from the
support standoff.
1 standoff holes (2) 2 RAC-card connectors (2)
3 RAC-card cables (2) 4 RAC card
5 support standoff 6 cutout
7 retention standoffs (2)
5
4
1
3
7 6
2
