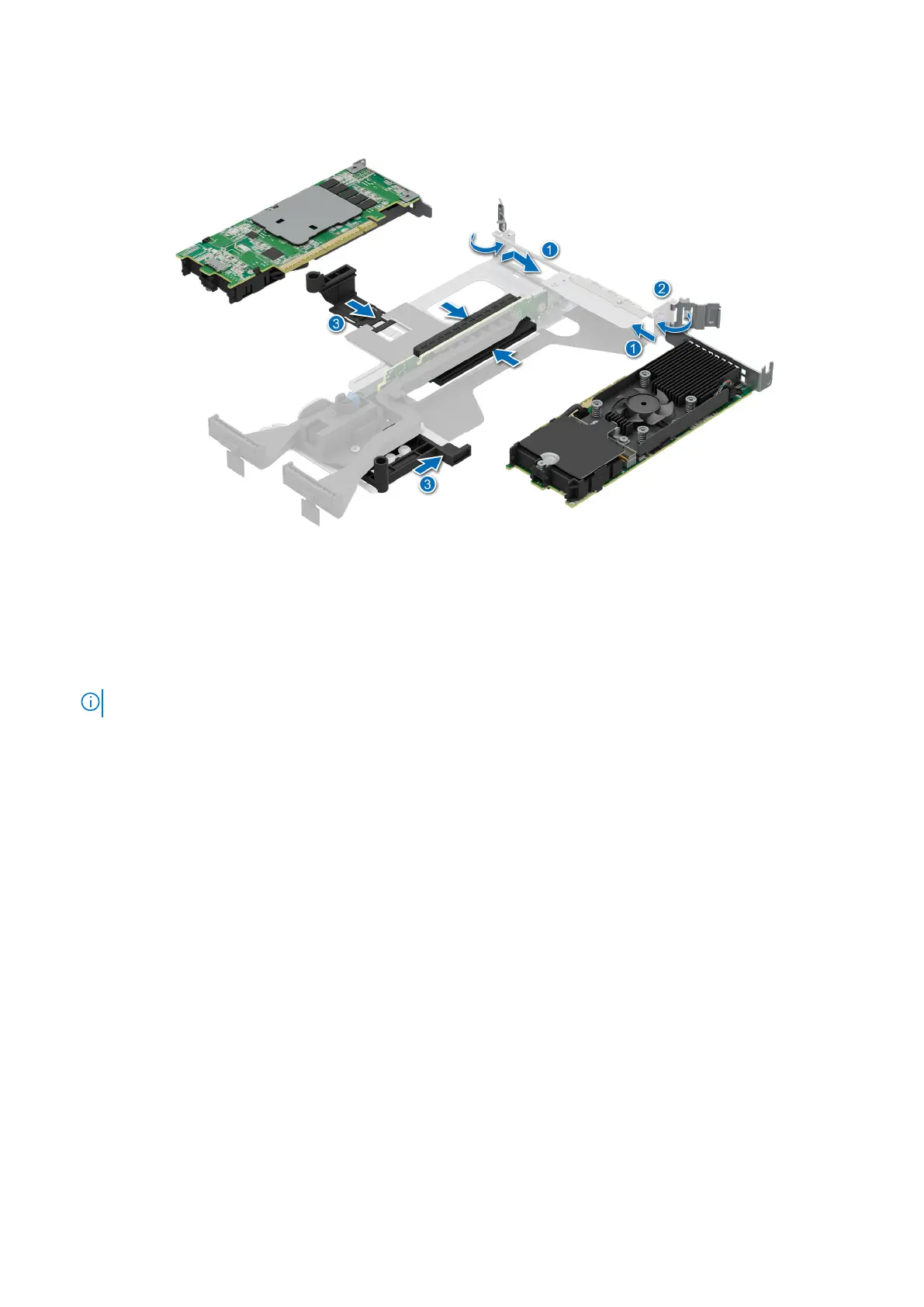

Figure 77. Installing the APERC module
Next steps
1. Connect the cables to the APERC module and route the cables properly.
NOTE: Refer to cable routing section for more information.
2. Install the cooling fan cage assembly.
3. If removed, install the air shroud.
4. Install the expansion card riser.
5. Follow the procedure listed in After working inside your system.
System memory
System memory guidelines
The PowerEdgeR860 system supports DDR5 registered DIMMs (RDIMMs).
Your system memory is organized into eight channels per processor (two memory sockets per channel), 16 memory sockets per
processor and 64 memory sockets (32 sockets each on system board and PEM) per system.
