Inside the system

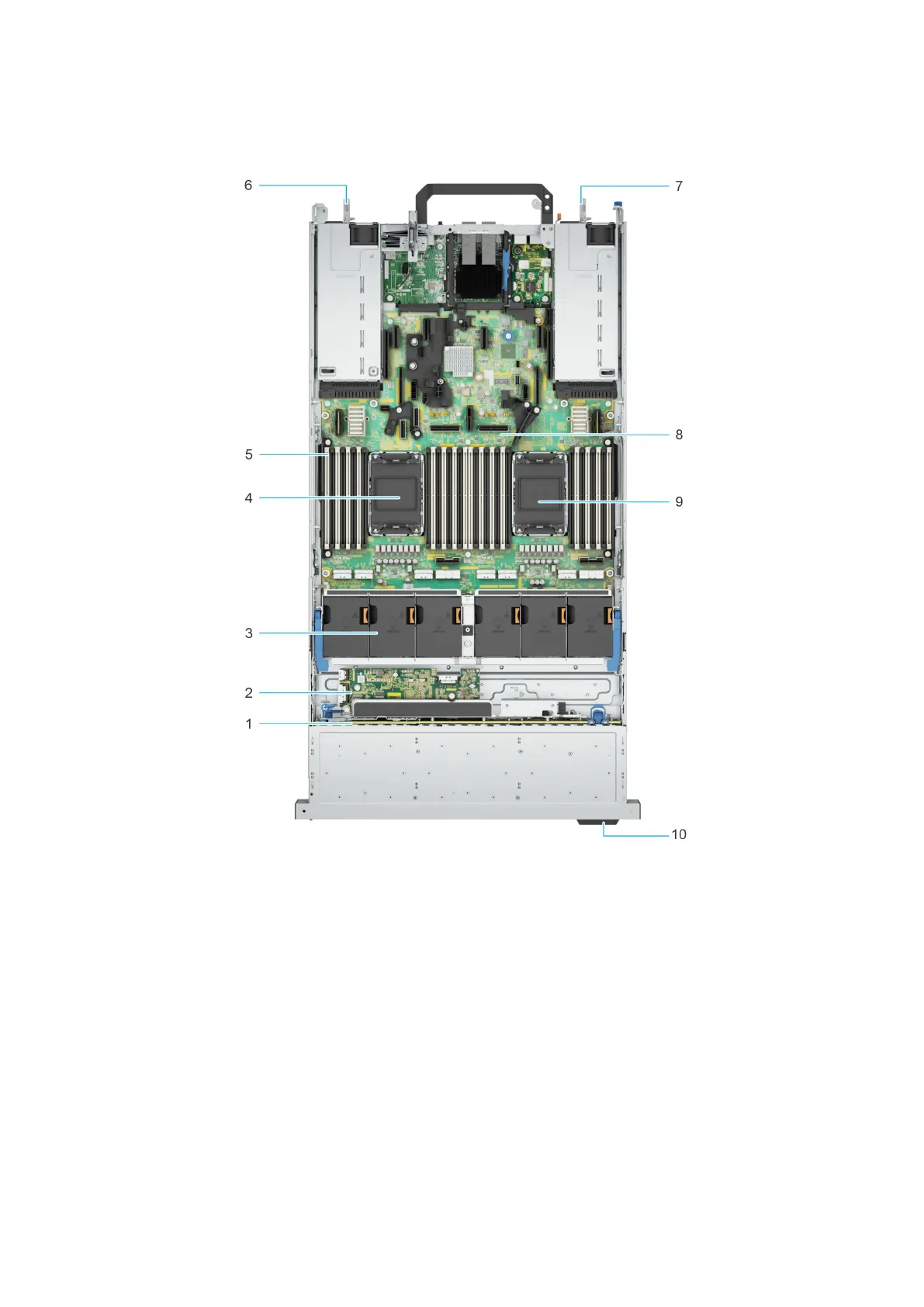

Figure 9. Inside the system without risers
1.
Backplane 2. Backplane expander board
3. Cooling fans 4. Processor 2
5. Memory DIMM sockets 6. Power supply unit (PSU2)
7. Power supply unit (PSU1) 8. System board
9. Processor 1 10. Express Service Tag
16 Dell PowerEdge R860 system overview
