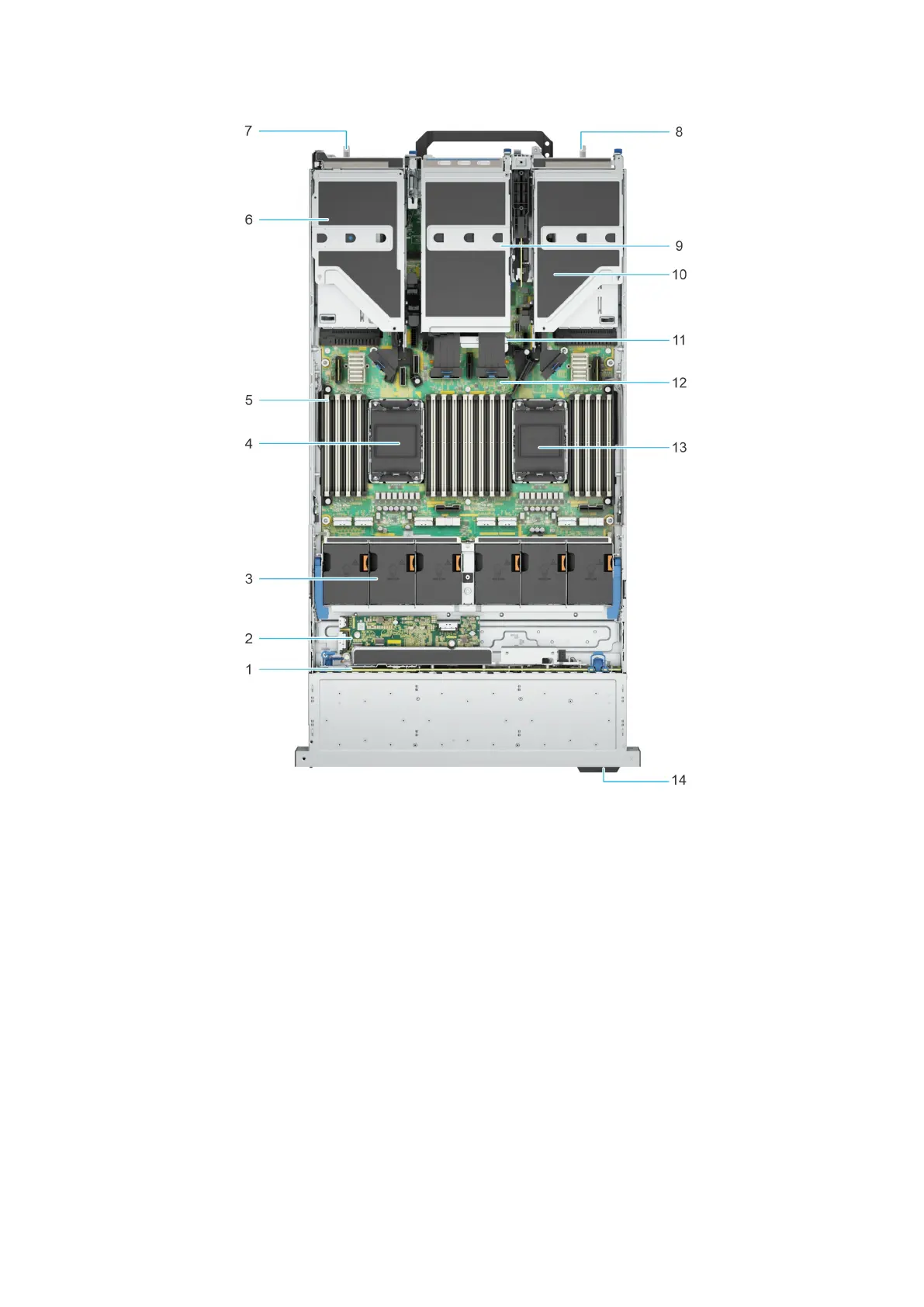

Figure 11. Inside the system with risers
1.
Backplane 2. Backplane expander board
3. Cooling fans 4. Processor 2
5. Memory DIMM sockets 6. Expansion riser 4
7. Power supply unit (PSU2) 8. Power supply unit (PSU1)
9. Expansion riser 3 10. Expansion riser 1
11. Expansion riser 2 12. System board
13. Processor 1 14. Express Service Tag
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The Express Service Tag is located on the front of the system that includes system information such as the Service Tag,
Express Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default
access to iDRAC, the Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync
2, the Information tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and
troubleshoot the PowerEdge servers.
