System board connectors

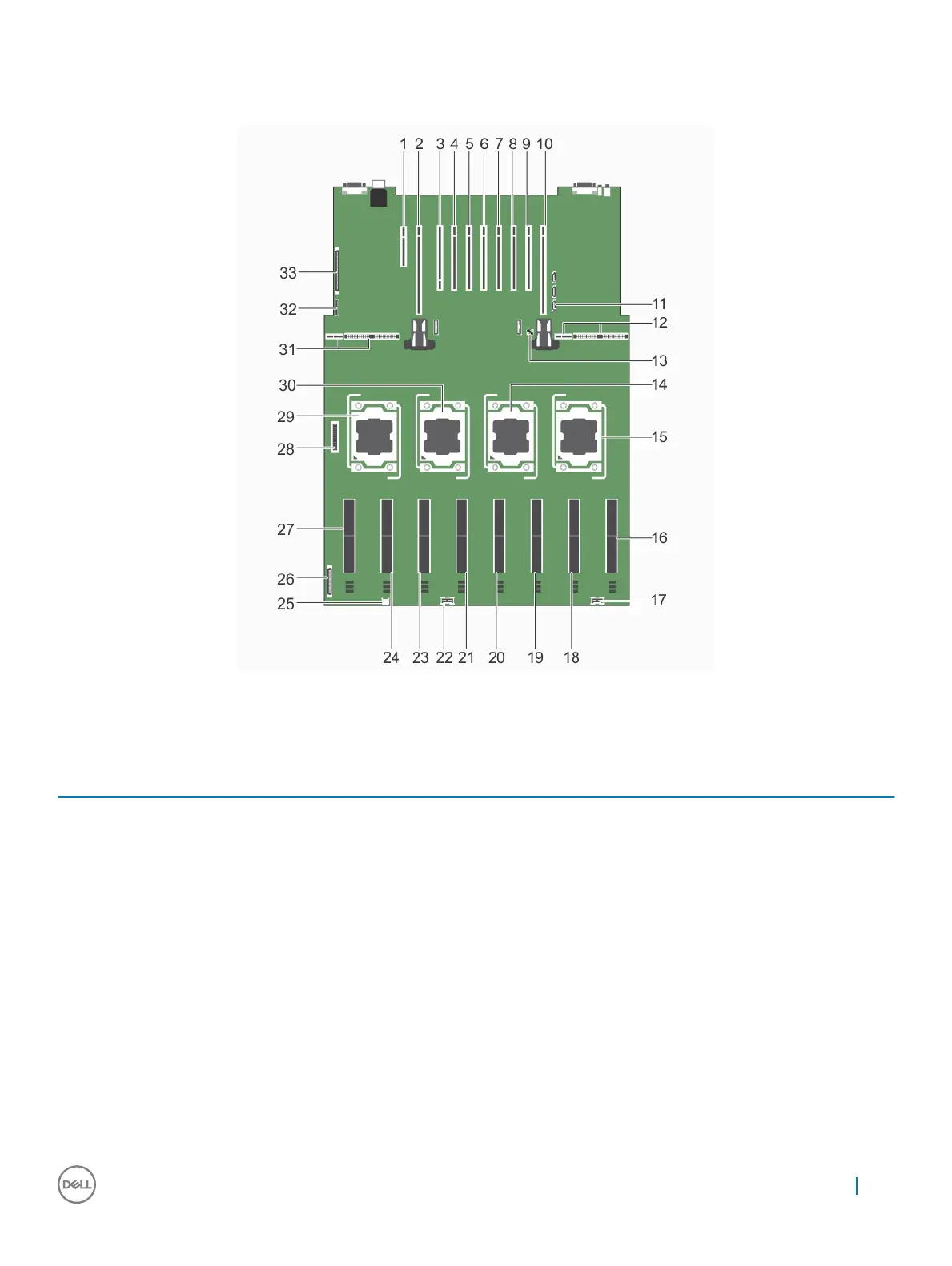

Figure 104. System board jumpers and connectors
Table 40. System board connectors and jumpers
Item Connector Description
1 INT_STORAGE/ J_PERC Integrated storage controller card connector
2 J_PCIE_SLOT1 Left I/O riser connector (optional)
3 IO_RISER1/J_NDC_RISER NDC riser connector
4 J_PCIE_SLOT3
Expansion-card connectors
5 J_PCIE_SLOT4
6 J_PCIE_SLOT5
7 J_PCIE_SLOT6
8 J_PCIE_SLOT7
9 J_PCIE_SLOT8
10 J_PCIE_SLOT9
11 SATA_A SATA A connector
12 J_PDBR_SIG Right power distribution board connector
Jumpers and connectors 193
