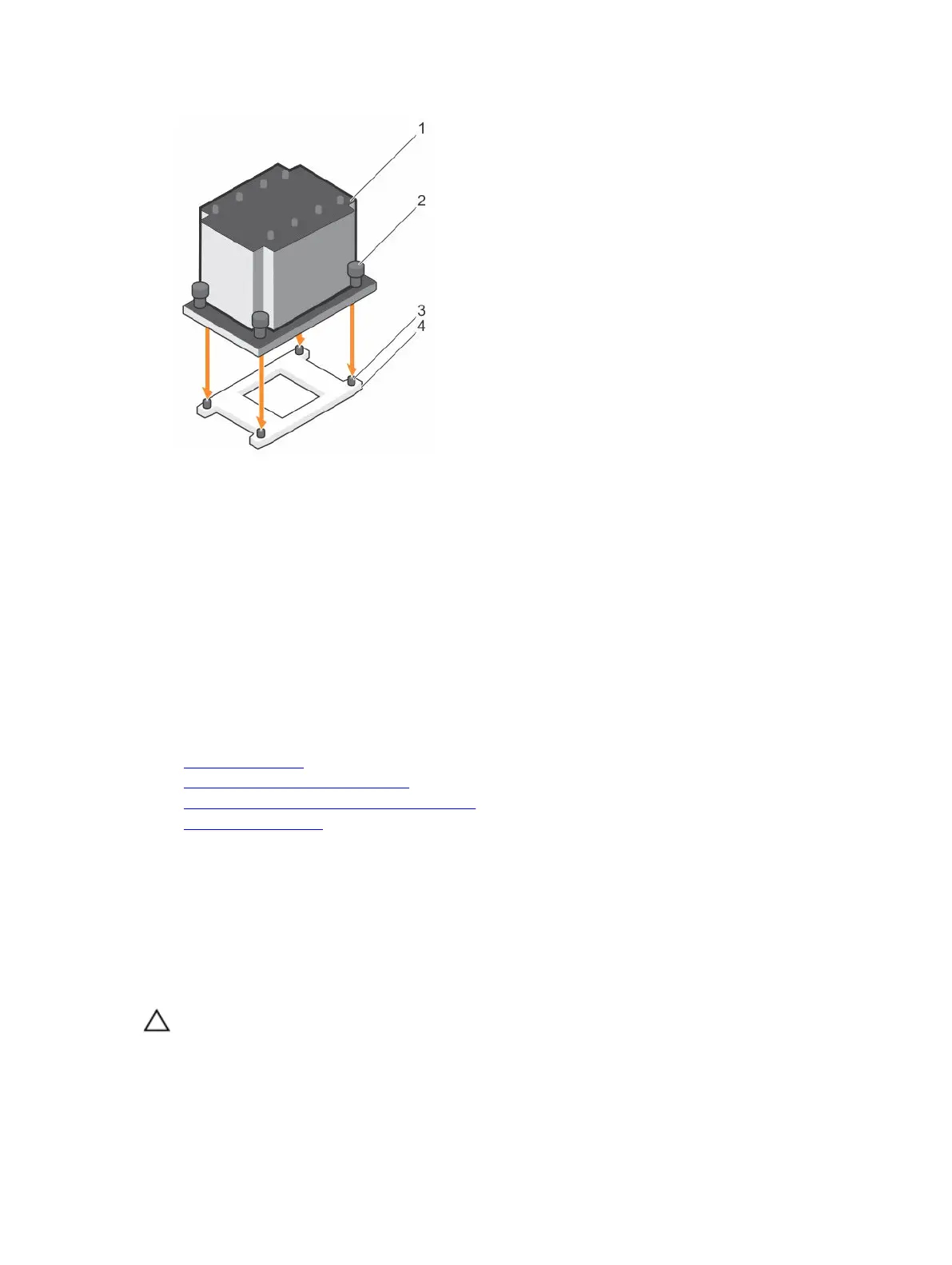

Figure 67. Installing the heat sink
1. heat sink
2. retention screw (4)
3. retention screw slot (4) 4. processor socket
Next steps
1. If applicable, install the PCIe card.
2. If applicable, install the cooling fan assembly.
3. Follow the procedure listed in the After working inside your system section.
4. While booting, press F2 to enter System Setup and verify that the processor information matches the
new system configuration.
5. Run the system diagnostics to verify that the new processor operates correctly.
Related Links
Safety instructions
Before working inside your system
Removing the optional cooling fan assembly
Installing a processor
Power supply unit
Your system supports either:
• Two 495 W, 750 W, 1100 W, or 1600 W (Platinum) AC power supply modules or
• Two 750 W (Titanium) AC power supply modules or
• Two 1100 W DC power supply modules
CAUTION: If two power supplies units (PSU) are used, they must be of the same maximum output
power.
