Back panel

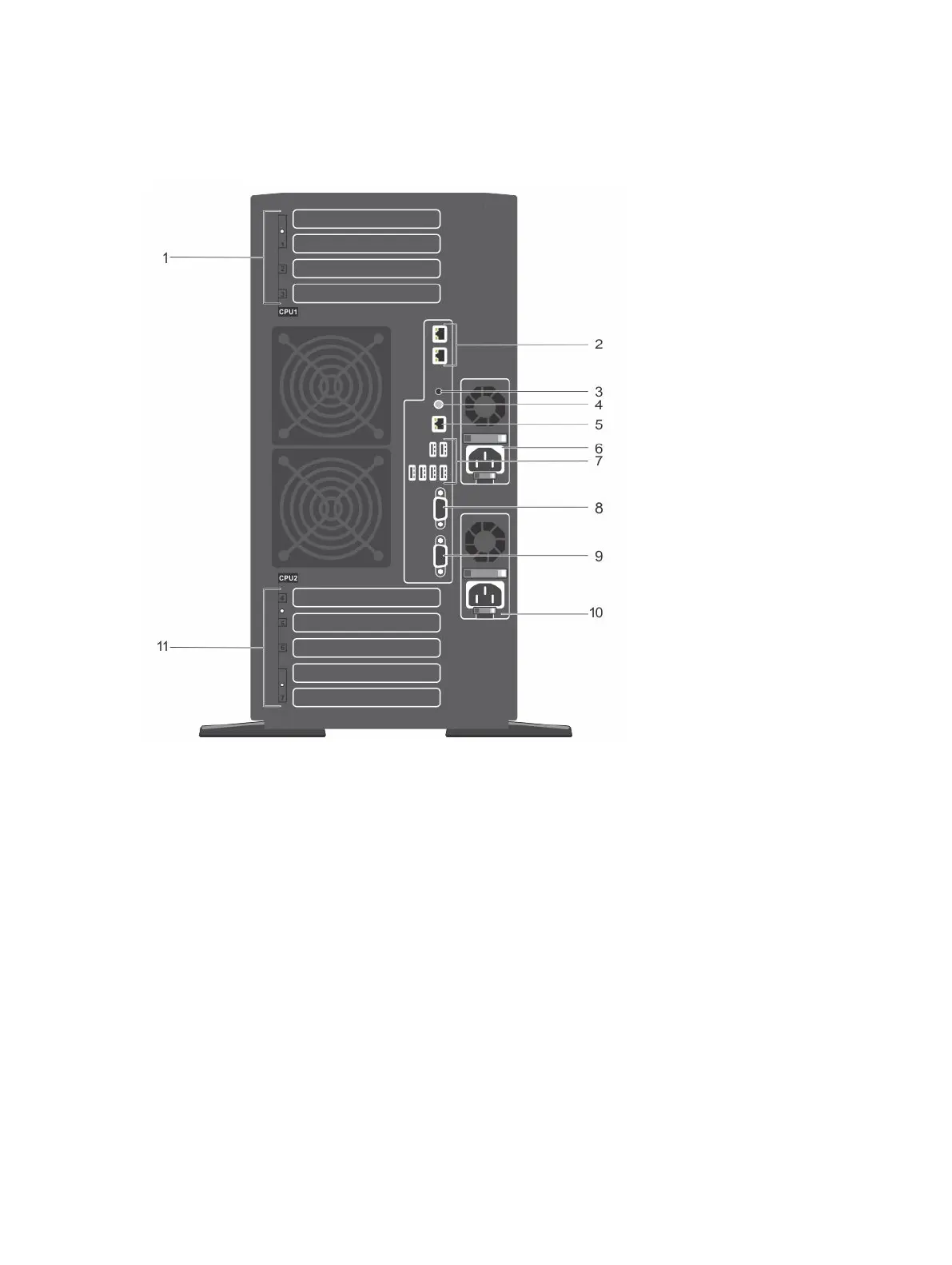

Figure 5. Back panel features
1. PCIe expansion card slots (3) (processor 1)
2. Ethernet connectors
3. System identification connector 4. System identification button
5. iDRAC Enterprise port 6. Power supply (PSU1)
7. USB port(6)
8. Video connector
9. Serial connector 10. Power supply (PSU2)
11. Full-height PCIe expansion card slots
(processor 2)
19
