Dell Precision M3800 Quick Start Guide

Printed in China.
2013-09
© 2013 Dell Inc.
© 2013 Microsoft Corporation.

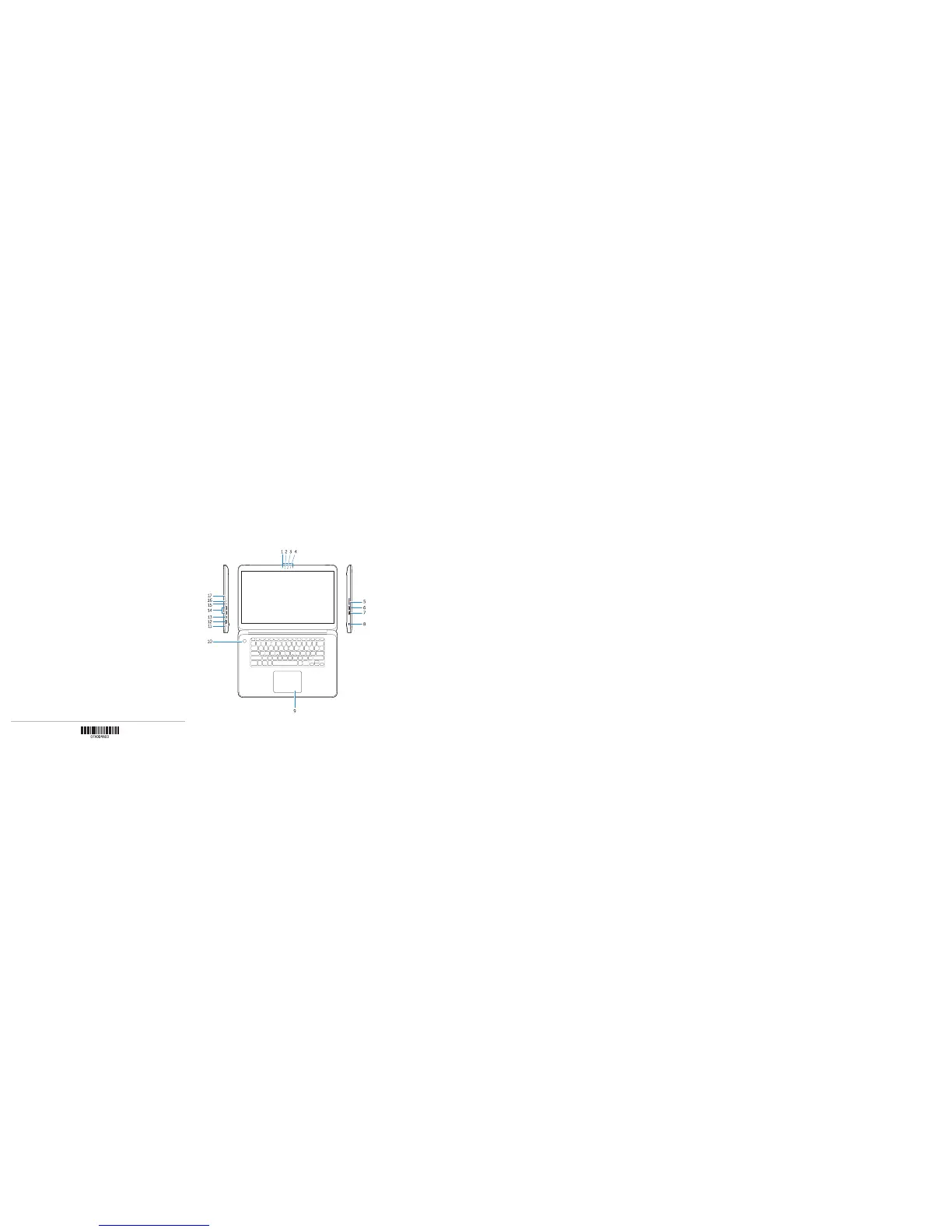

Features
Kenmerken | Caractéristiques | Funktionen | Funzioni
1. microphones
2. capteur d’éclairage ambiant
3. caméra
4. voyant d’état de la caméra
5. lecteur de carte mémoire
6. connecteur USB 3.0
avecPowerShare
7. connecteur USB 2.0
avecPowerShare
8. fente pour système de
sécurité Noble
9. pavé tactile
10. bouton d’alimentation
11. connecteur d’alimentation
12. connecteur HDMI
13. connecteur Mini DisplayPort
14. connecteur USB 3.0
avecPowerShare
15. connecteur audio
16. bouton d’état de la batterie
17. voyants d’état de la batterie
1. Mikrofone
2. Umgebungslichtsensor
3. Kamera
4. Kamerastatusanzeige
5. Speicherkartenleser
6. USB 3.0-Anschluss mit PowerShare
7. USB 2.0-Anschluss mit PowerShare
8. Noble-Sicherheitseinschub
9. Touchpad
10. Betriebsschalter
11. Netzanschluss
12. HDMI-Anschluss
13. Mini-DisplayPort-Anschluss
14. USB 3.0-Anschluss mit PowerShare
15. Audioanschluss
16. Akkuzustandstaste
17. Akkuzustandsanzeige
1. microphones
2. ambient-light sensor
3. camera
4. camera-status light
5. memory card reader
6. USB 3.0 connector with PowerShare
7. USB 2.0 connector with PowerShare
8. Noble security slot
9. touchpad
10. power button
11. power connector
12. HDMI connector
13. mini DisplayPort connector
14. USB 3.0 connector with PowerShare
15. audio connector
16. battery-status button
17. battery-status lights
1. microfoons
2. omgevingslichtsensor
3. camera
4. statuslampje camera
5. geheugenkaartlezer
6. USB 3.0-connector met PowerShare
7. USB 2.0-connector met PowerShare
8. Noble-beveiligingssleuf
9. touchpad
10. aan-uitknop
11. stroomconnector
12. HDMI-connector
13. mini DisplayPort-connector
14. USB 3.0-connector met PowerShare
15. audioconnector
16. knop voor batterijniveau
17. lampjes voor batterijniveau
Product support and manuals
Productondersteuning en handleidingen
Support produits et manuels
Produktsupport und Handbücher
Supporto prodotto e manuali
dell.com/support
dell.com/support/manuals
dell.com/windows8
Contact Dell
Neem contact op met Dell | Contacter Dell
Kontaktaufnahme mit Dell | Contattare Dell
dell.com/contactdell
Regulatory and safety
Regelgeving en veiligheid
Réglementations et sécurité
Sicherheitshinweise und Zulassungsinformationen
Normative e sicurezza
dell.com/regulatory_compliance
Regulatory model and type
Beschreven model en type
Modèle et type réglementaires
Muster-Modellnummer und Muster-Typnummer
Normativa modello e tipo
P31F
P31F001
Computer model
Computermodel | Modèle de l’ordinateur
Computermodell | Modello del computer
Dell Precision M3800
Información para NOM, o Norma Oficial Mexicana
La información que se proporciona a continuación se mostrará en los dispositivos que
se describen en este documento, en conformidad con los requisitos de la Norma Oficial
Mexicana(NOM):
Importador:
Dell México S.A. de C.V.
Paseo de la Reforma 2620 - Piso 11.°
Col. Lomas Altas
11950 México, D.F.
Número de modelo reglamentario: P31F
Voltaje de entrada: 100 V CA–240 V CA
Corriente de entrada (máxima): 2,30 A/2,50A
Frecuencia de entrada: 50 Hz–60 Hz
Corriente de salida: 6,67 A
Voltaje de salida: 19,5 VCC
1. microfoni
2. sensore luce ambiente
3. fotocamera
4. indicatore di stato della fotocamera
5. lettore di schede di memoria
6. connettore USB 3.0 con PowerShare
7. connettore USB 2.0 con PowerShare
8. slot di sicurezza Noble
9. touchpad
10. accensione
11. connettore di alimentazione
12. connettore HDMI
13. connettore mini-DisplayPort
14. connettore USB 3.0 con PowerShare
15. connettore audio
16. pulsante di stato della batteria
17. indicatore dello stato della batteria

Dell Precision M3800 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Black, Silver
Housing material	Aluminium, Carbon fibre
Bus type	DMI2
Stepping	C0
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
System bus rate	- GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-4700 Mobile series
Processor socket	BGA 1364
Processor threads	8
Processor codename	Haswell
Processor frequency	2.2 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	37 W
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® HM87
Memory slots	2x SO-DIMM
Internal memory	16 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	2 x 8 GB
AC adapter included	Yes
Intel segment tagging	Professional
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA III
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	MMC, SD, SDHC, SDXC
Number of SSDs installed	1
Display surface	-
Display diagonal	15.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3200 x 1800 pixels
Native aspect ratio	16:9
On-board graphics card ID	0x416
Discrete graphics card model	NVIDIA® Quadro® K1100M
On-board graphics card model	Intel® HD Graphics 4600
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card dynamic frequency (max)	1150 MHz
Audio system	MaxxAudio Pro
Speakers manufacturer	Waves
Number of built-in speakers	2
Front camera resolution	1280 x 720 pixels
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Processor code	SR15F
Processor ARK ID	75118
Intel TSX-NI version	0.00
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Battery capacity	61 Wh
Battery life (max)	- h
Number of battery cells	6
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Cable lock slot type	Noble
Password protection type	BIOS
Sustainability certificates	RoHS, ENERGY STAR
Certification	CECP, CEC, Eco-label, Energy Law, Green PC

Weight and Dimensions

Depth	254 mm
Width	372 mm
Weight	1880 g
Height (rear)	18 mm
Height (front)	8 mm
