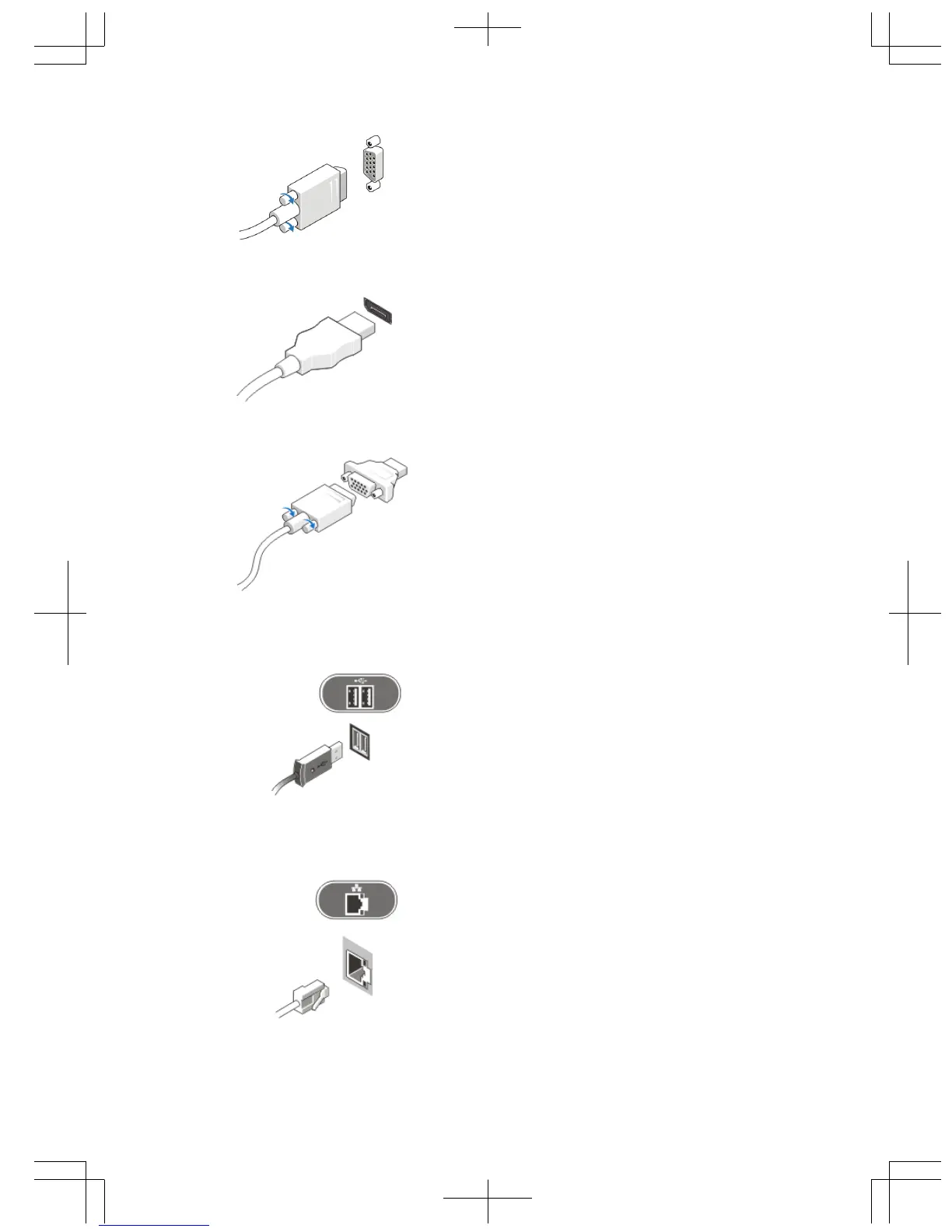

Figure 3. VGA Adapter
Figure 4. DisplayPort Cable
Figure 5. VGA To DisplayPort Adapter
2. Connect the USB keyboard or mouse (optional).
Figure 6. USB Connection
3. Connect the network cable (optional).
Figure 7. Network Connection
3
