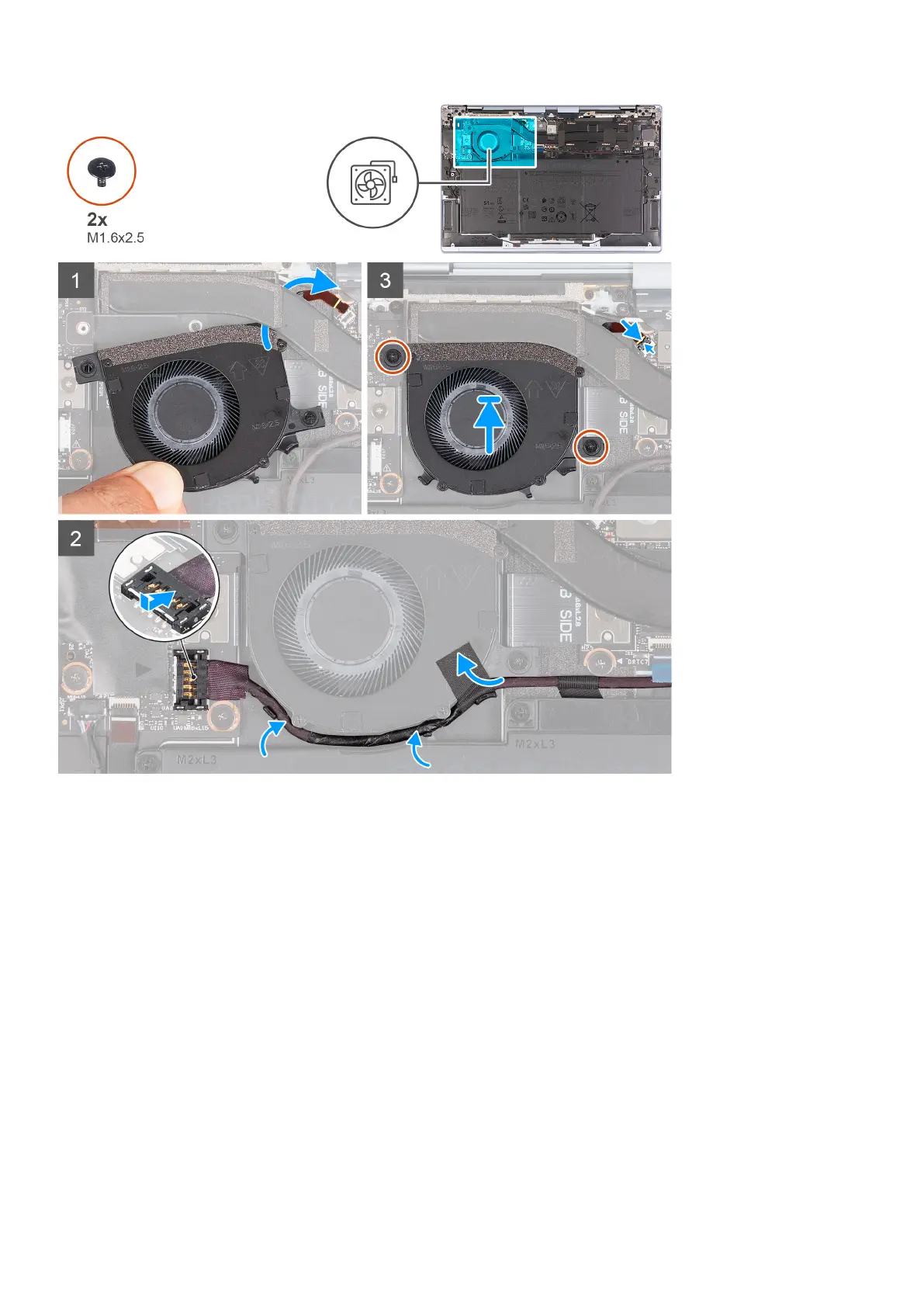

Steps
1. Slide the fan cable under the heat sink.
2. Align the screw holes of the fan with the screw hole of the I/O daughter-board and the screw hole of the system board.
3. Slide the fan into its place between the I/O daughter-board and the system board.
4. Replace the two screws (M1.6x2.5) that secure the fan to the I/O daughter-board and the system board.
5. Replace the tape that secures the I/O daughter-board power cable to the fan.
6. Place the I/O daughter-board power cable back to the two routing guides below the fan.
7. Connect the I/O daughter-board power cable to the I/O daughter-board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
20
Removing and installing components
