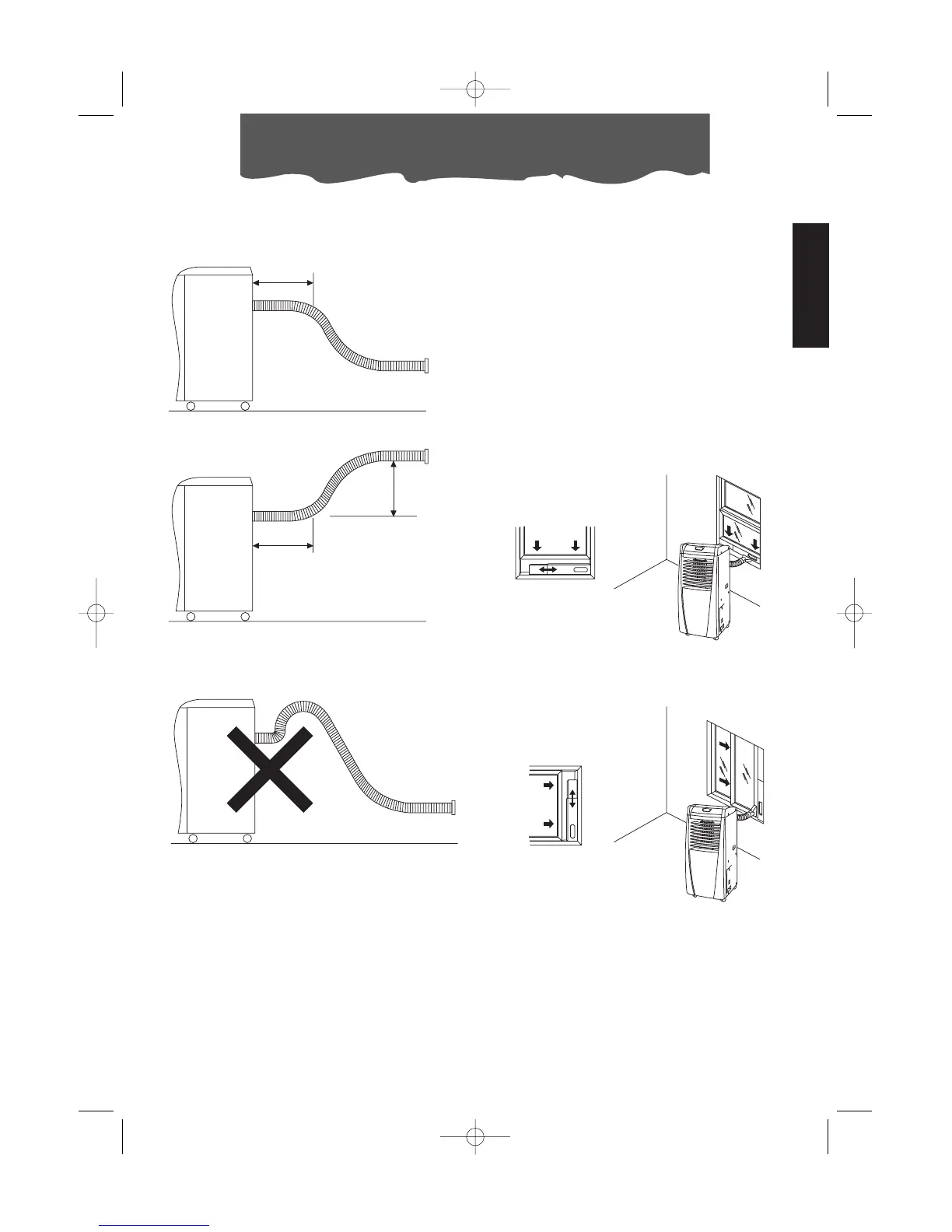

If the flange hose must be curved to expel the
air, you should follow the measurements given
in the figure:
MOUNTING THE ADJUSTABLE WINDOW CLOSU-
RE CROSSPIECE (certain models only)
The appliance is provided with an adjustable
crosspiece.
If you have a sliding window, position the
bracket in the window frame, extend it com-
pletely then close the window onto the
bracket. Fit the window flange onto the end of
the air exhaust hose, position it on the hole in
the bracket, then fit the other end of the hose
onto the back of the air conditioning unit.
This considerably reduces heat dispersion due
to contact between the room and the outside
environment.
The bracket is 40 mm wide and between 675
mm and 1230 mm long.
