Fuel,
Emission and Exhaust System

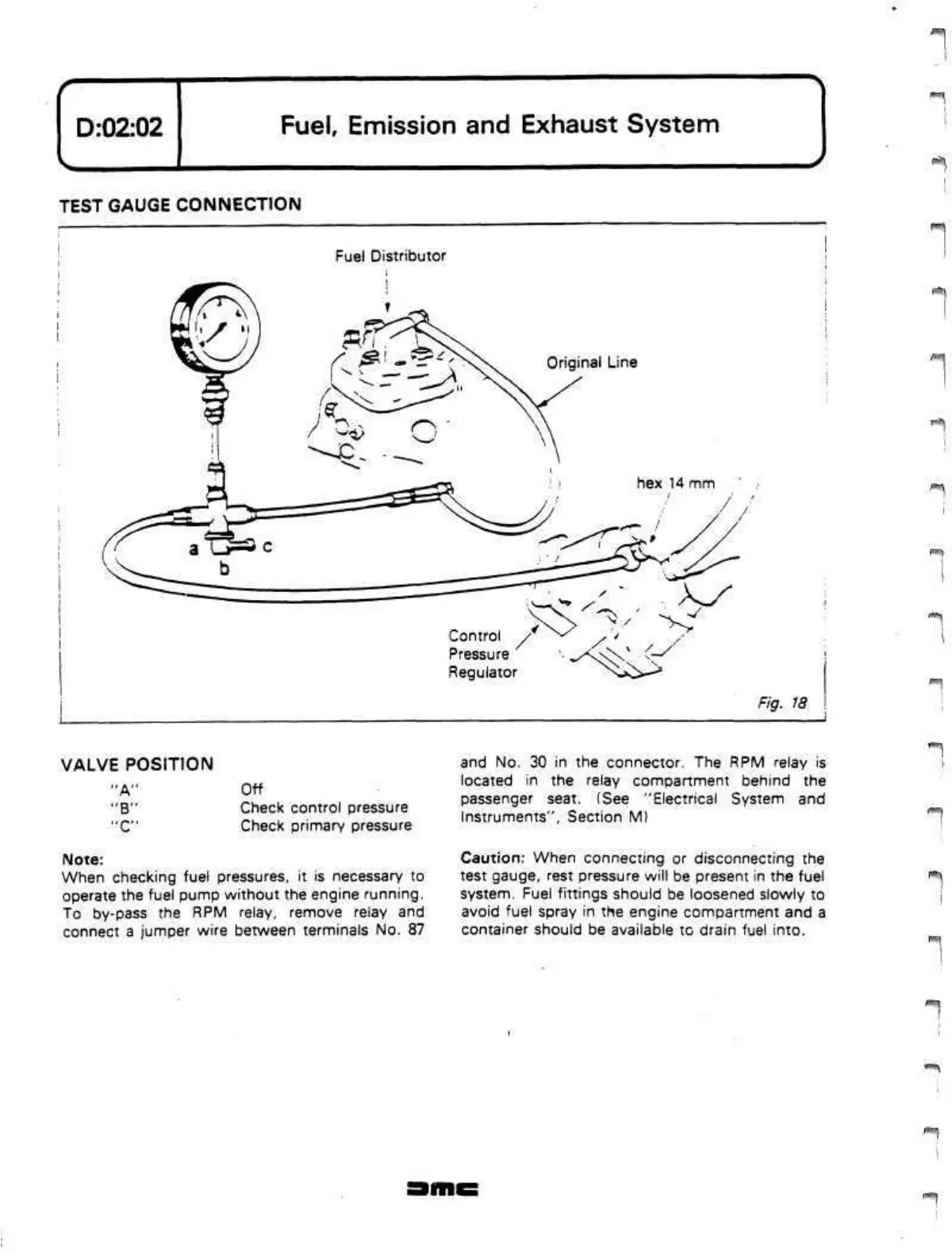

TEST GAUGE CONNECTION
Fuel Distributor
nal
Line
Control
Pressure
Regulator
Fig.
18
VALVE POSITION
"A"
"B"
"C"
Off
Check control pressure
Check primary pressure
Note:
When checking fuel pressures, it is necessary to
operate the fuel pump without the engine running.
To by-pass the RPM relay, remove relay and
connect a jumper wire between terminals No. 87
and No. 30 in the connector. The RPM relay is
located in the relay compartment behind the
passenger seat. (See "Electrical System and
Instruments", Section M)
Caution:
When connecting or disconnecting the
test gauge, rest pressure will be present in the fuel
system.
Fuel fittings should be loosened slowly to
avoid fuel spray in the engine compartment and a
container should be available to drain fuel into.
