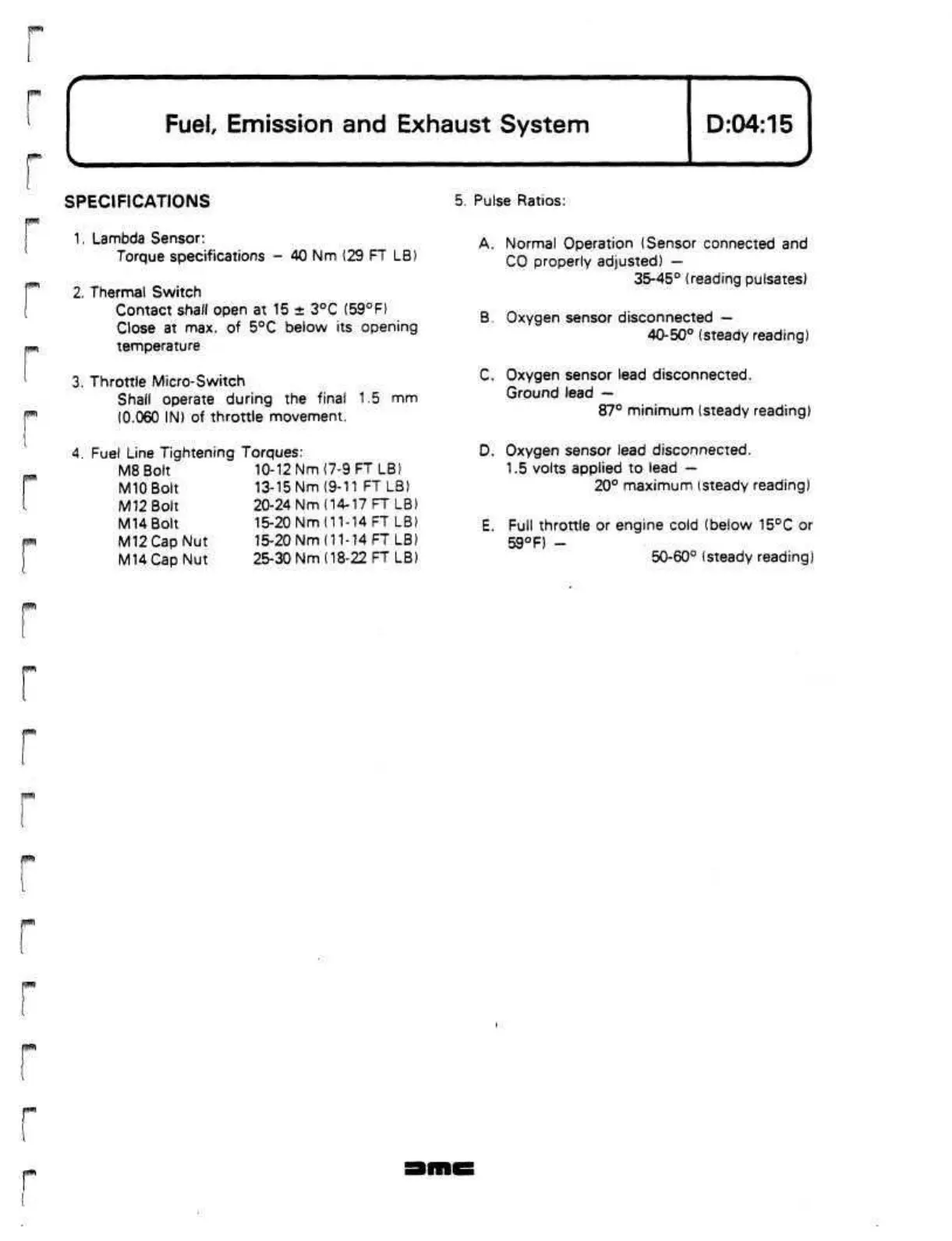

Fuel,
Emission and Exhaust System
D:04:15
r^
K
''-i
SPECIFICATIONS
1.
Lambda Sensor:
Torque specifications - 40
Nm
(29 FT LB)
2.
Thermal Switch
Contact shall open at 15 ±
3°C (59°F)
Close at max. of 5°C below its opening
temperature
Throttle Micro-Switch
Shall operate during the final
(0.060 IN) of throttle movement.
1.5 mm
4.
Fuel Line Tightening Torques:
M8Bolt 10-12 Nm (7-9 FT
LB)
MIOBolt
M12Bolt
M14Bolt
M12CapNut
M14CapNut
13-15 Nm
(9-11
FT
LB)
20-24 Nm
(14-17
FT
LB)
15-20
Nm (11-14 FT LB)
15-20
Nm (11-14 FT LB)
25-30 Nm
(18-22
FT
LB)
5. Pulse Ratios:
A. Normal Operation (Sensor connected and
CO properly adjusted) —
35-45° (reading pulsates)
B. Oxygen sensor disconnected —
40-50°
(steady reading)
C. Oxygen sensor lead disconnected.
Ground lead —
87° minimum (steady reading)
D. Oxygen sensor lead disconnected.
1.5 volts applied to lead —
20° maximum (steady reading)
E. Full throttle or engine cold (below 15°C or
59°F) -
50-60° (steady reading)
