General Data
J

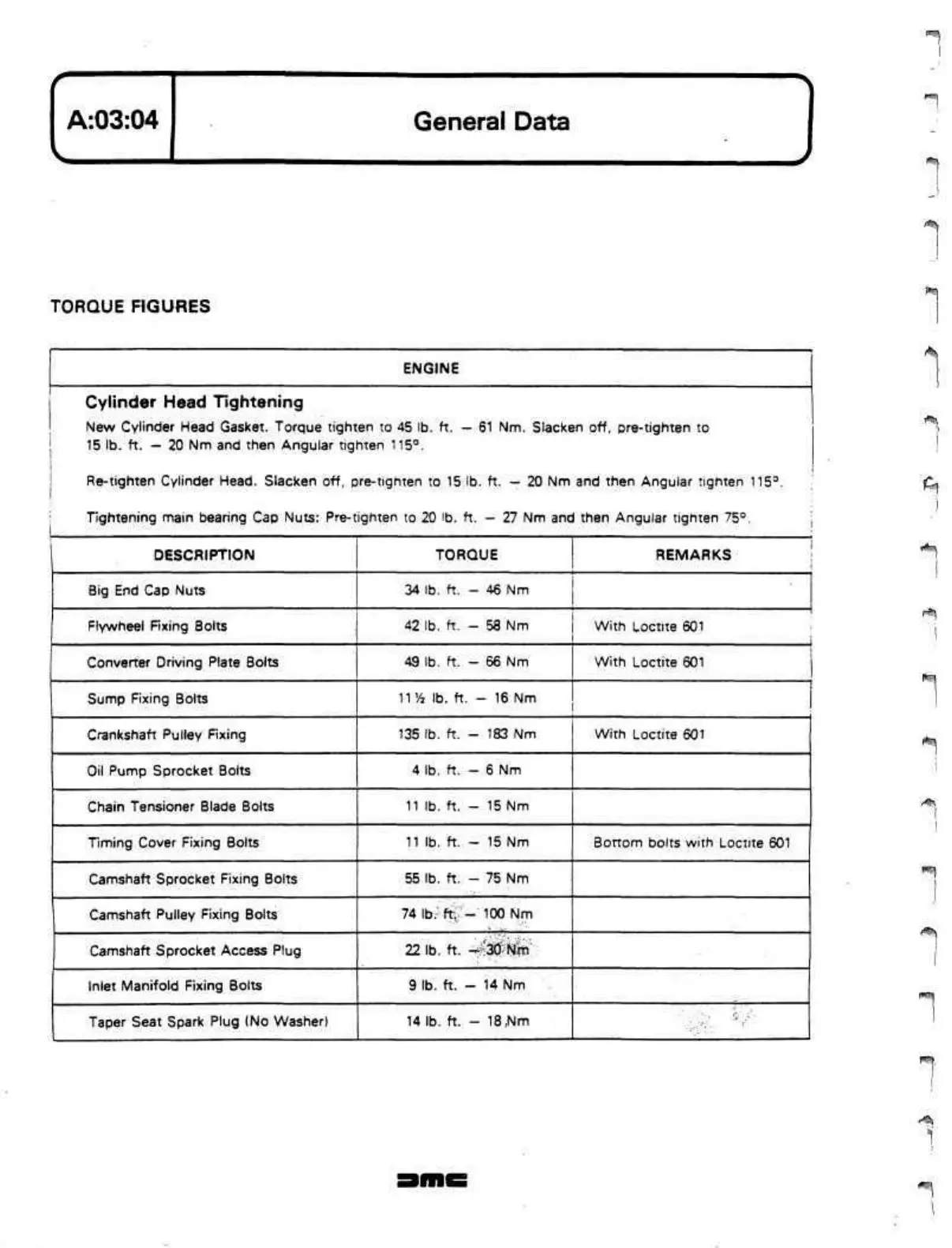

TORQUE FIGURES
ENGINE
Cylinder Head Tightening
New Cylinder Head Gasket. Torque tighten to 45 lb. ft. — 61 Nm. Slacken off, pre-tighten to
15 lb. ft. - 20 Nm and then Angular tighten 115°.
Re-tighten Cylinder Head. Slacken off, pre-tighten to 15 lb. ft. — 20 Nm and then Angular tighten 115
c
Tightening main bearing Cap Nuts: Pre-tighten to 20 lb. ft. — 27 Nm and then Angular tighten 75°.
DESCRIPTION
Big End Cap Nuts
Flywheel Fixing Bolts
Converter Driving Plate Bolts
Sump Fixing Bolts
Crankshaft Pulley Fixing
Oil Pump Sprocket Bolts
Chain Tensioner Blade Bolts
Timing Cover Fixing Bolts
Camshaft Sprocket Fixing Bolts
Camshaft Pulley Fixing Bolts
Camshaft Sprocket Access Plug
Inlet Manifold Fixing Bolts
Taper Seat Spark Plug (No Washer)
TORQUE
REMARKS
34 lb. ft. - 46 Nm
I !
42 lb. ft. - 58 Nm | With Loctite 601 •
I
49 lb. ft. - 66 Nm
11V4 lb. ft. - 16 Nm
135 lb. ft. - 183 Nm
4 lb. ft. - 6 Nm
11 lb. ft. - 15 Nm
11 lb. ft. - 15 Nm
55 lb. ft. - 75 Nm
74 Ib.'ftv- 100 Nm
22 lb. ft. -
4
30Nm
9 lb. ft. - 14 Nm ".
14 lb. ft. - 18,Nm
With Loctite 601
With Loctite 601
Bottom bolts with Loctite 601
1
f '**"]
,^ff^
<r~'
l
