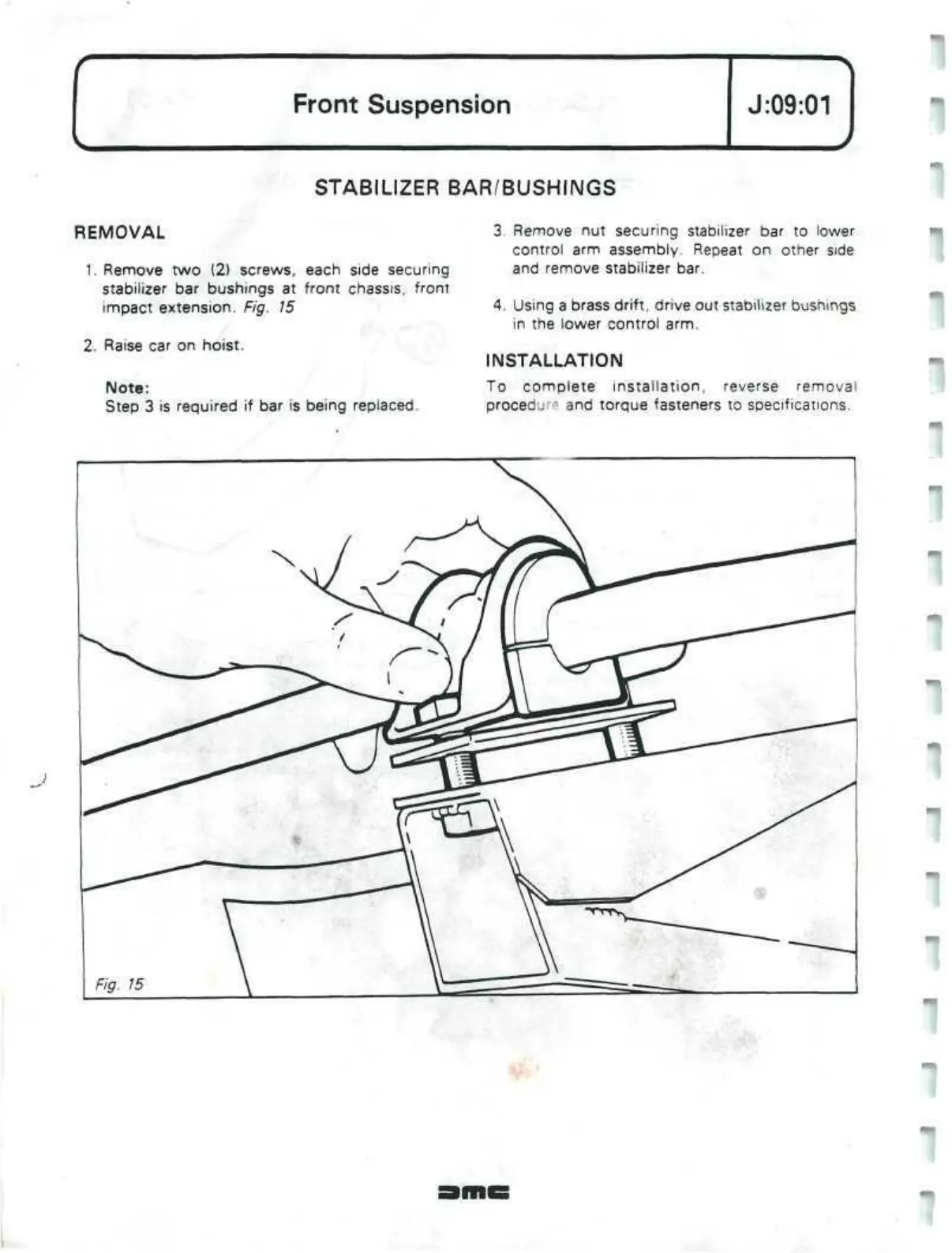

STABILIZER BAR/BUSHINGS
REMOVAL
1.
Remove two (2) screws, each side securing
stabilizer bar bushings at front chassis, front
impact extension. Fig.
15
2. Raise car on hoist.
Note:
Step 3 is required if bar is being replaced.
3. Remove nut securing stabilizer bar to lower
control arm assembly. Repeat on other
side
and remove stabilizer bar.
4.
Using a brass drift, drive out stabilizer bushings
in the lower control arm.
INSTALLATION
To complete installation, reverse removal
procedure and torque fasteners to specifications.
