Rear Suspension
•
K:01:01

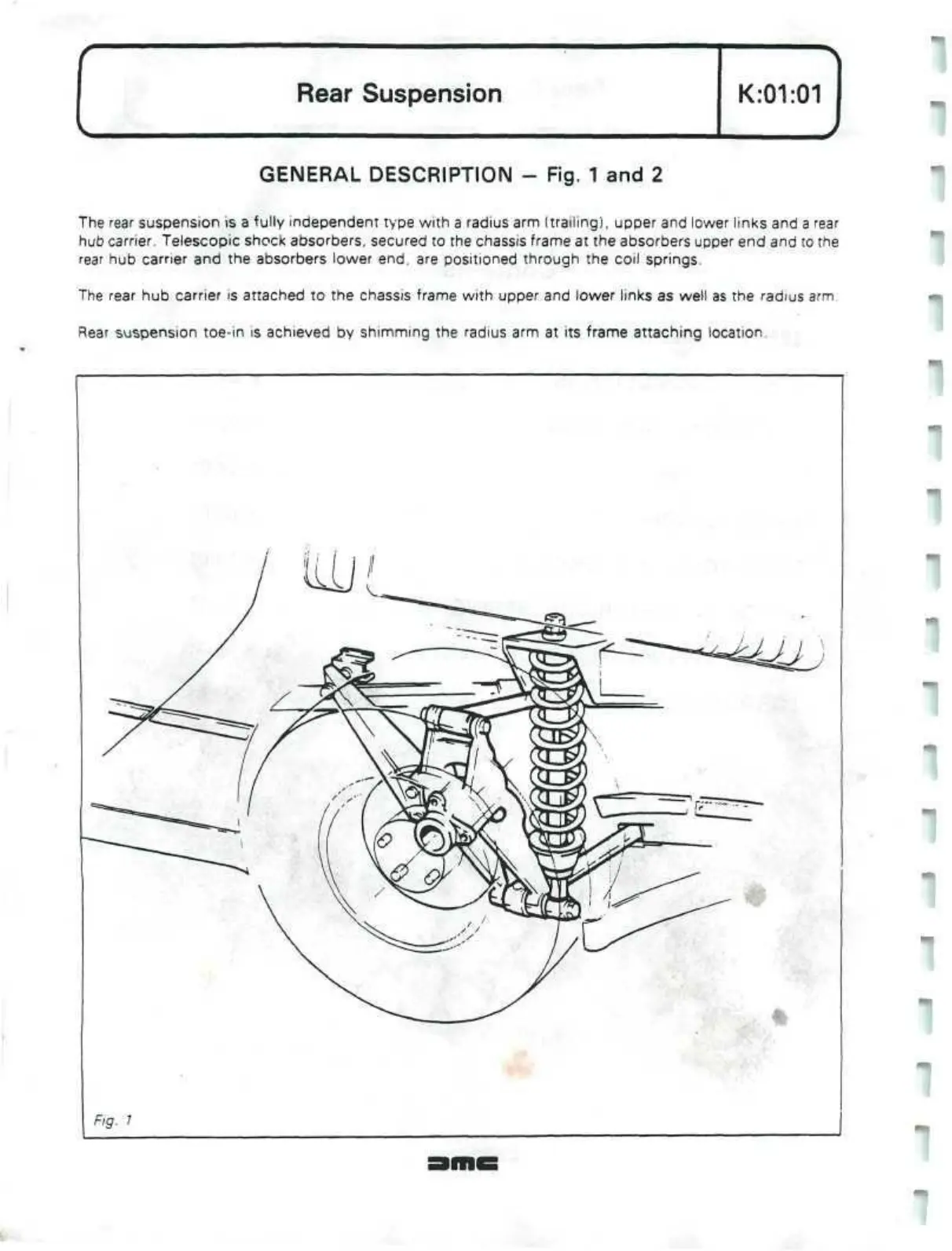

GENERAL DESCRIPTION - Fig. 1 and 2
The rear suspension is a fully independent type
with
a radius arm (trailing), upper and lower links and a rear
hub carrier. Telescopic shock absorbers, secured to the chassis frame at the absorbers upper end and to the
rear hub carrier and the absorbers lower end, are positioned through the coil springs.
The rear hub carrier is attached to the chassis frame with upper and lower links as well as the radius arm.
Rear suspension toe-in is achieved by shimming the radius arm at its frame attaching location.
