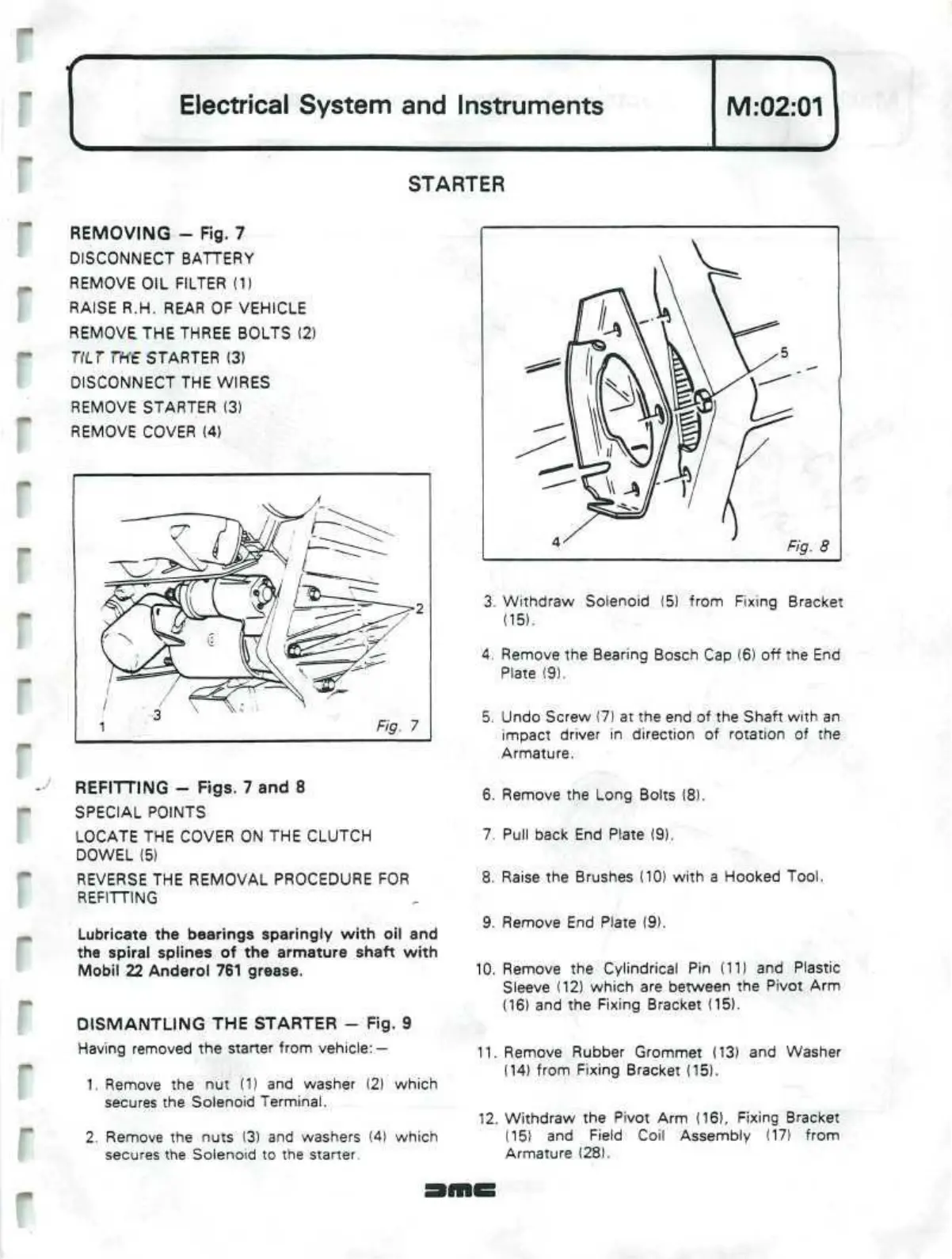

STARTER
REMOVING - Fig. 7
DISCONNECT BATTERY
REMOVE OIL FILTER (1)
RAISE R.H. REAR OF VEHICLE
REMOVE THE THREE BOLTS (2)
TILT THE STARTER (3)
DISCONNECT THE WIRES
REMOVE STARTER (3)
REMOVE COVER (4)
REFITTING - Figs. 7 and 8
SPECIAL POINTS
LOCATE THE COVER ON THE CLUTCH
DOWEL (5)
REVERSE THE REMOVAL PROCEDURE FOR
REFITTING
Lubricate the bearings sparingly with oil and
the spiral splines of the armature shaft with
Mobil 22 Anderol 761 grease.
DISMANTLING THE STARTER - Fig. 9
Having removed the starter from vehicle: —
1. Remove the nut (1) and washer (2) which
secures the Solenoid Terminal.
2. Remove the nuts (3) and washers (4) which
secures the Solenoid to the starter.
3. Withdraw Solenoid (5) from Fixing Bracket
(15).
4. Remove the Bearing Bosch Cap (6) off the End
Plate (9).
5. Undo Screw (7) at the end of the Shaft with an
impact driver in direction of rotation of the
Armature.
6. Remove the Long Bolts (8).
7. Pull back End Plate (9).
8. Raise the Brushes (10) with a Hooked Tool.
9. Remove End Plate (9).
10. Remove the Cylindrical Pin (11) and Plastic
Sleeve (12) which are between the Pivot Arm
(16) and the Fixing Bracket (15).
11. Remove Rubber Grommet (13) and Washer
(14) from Fixing Bracket (15).
12. Withdraw the Pivot Arm (16), Fixing Bracket
(15) and Field Coil Assembly (17) from
Armature (28).
