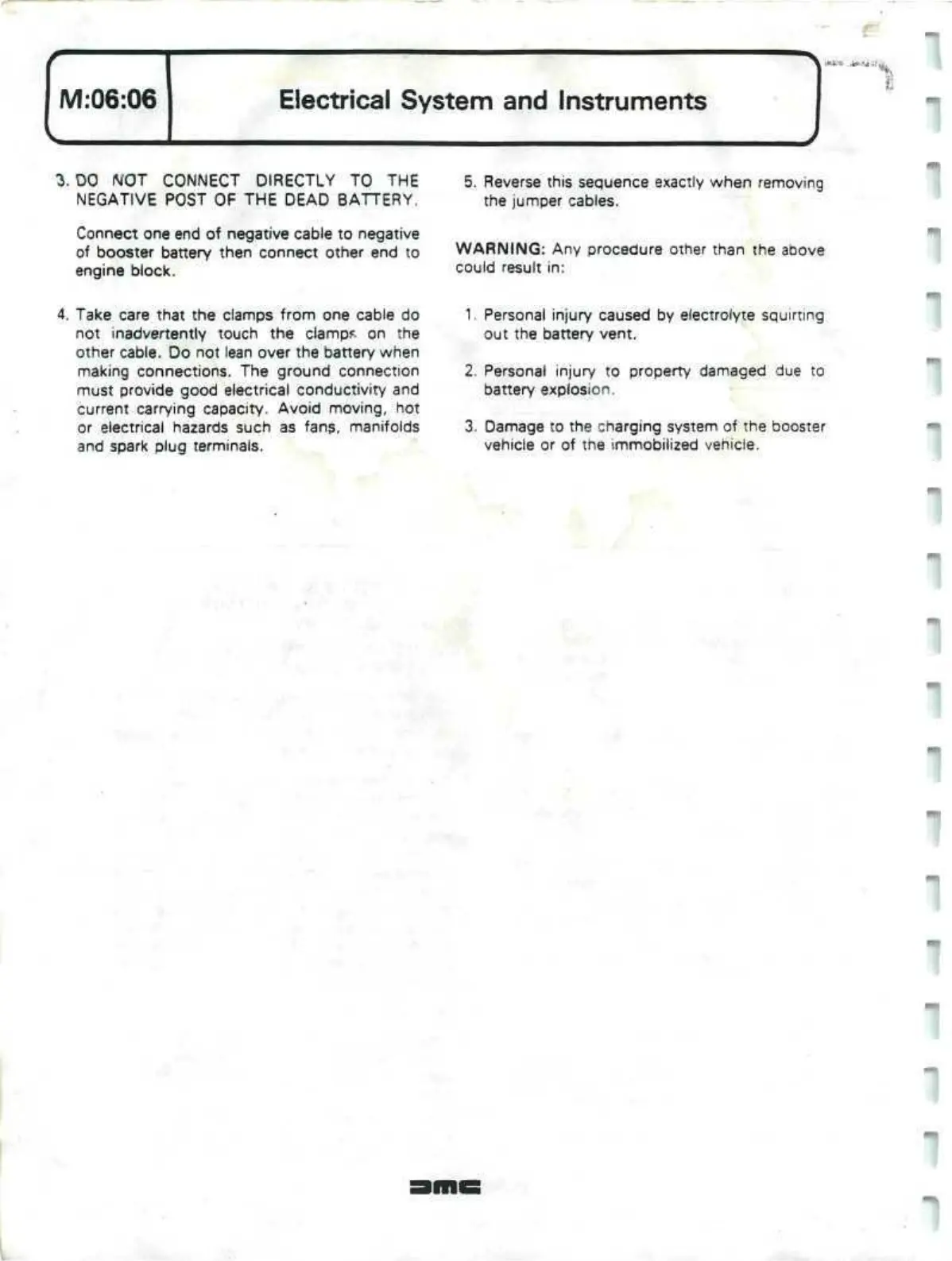

M:06:06
Electrical System and Instruments
)
1
3.
DO WOT CONNECT DIRECTLY TO THE
NEGATIVE POST OF THE DEAD BATTERY.
Connect one end of negative cable to negative
of booster battery then connect other end to
engine block.
5. Reverse this sequence exactly when removing
the jumper cables.
WARNING: Any procedure other than the above
could result in:
4.
Take care that the clamps from one cable do
not inadvertently touch the
clamp?,
on the
other cable. Do not lean over the battery when
making connections. The ground connection
must provide good electrical conductivity and
current carrying capacity. Avoid moving, hot
or electrical hazards such as fans, manifolds
and spark plug terminals.
1.
Personal injury caused by electrolyte squirting
out the battery vent.
2.
Personal injury to property damaged due to
battery explosion.
3. Damage to the charging system of the booster
vehicle or of the immobilized vehicle.
