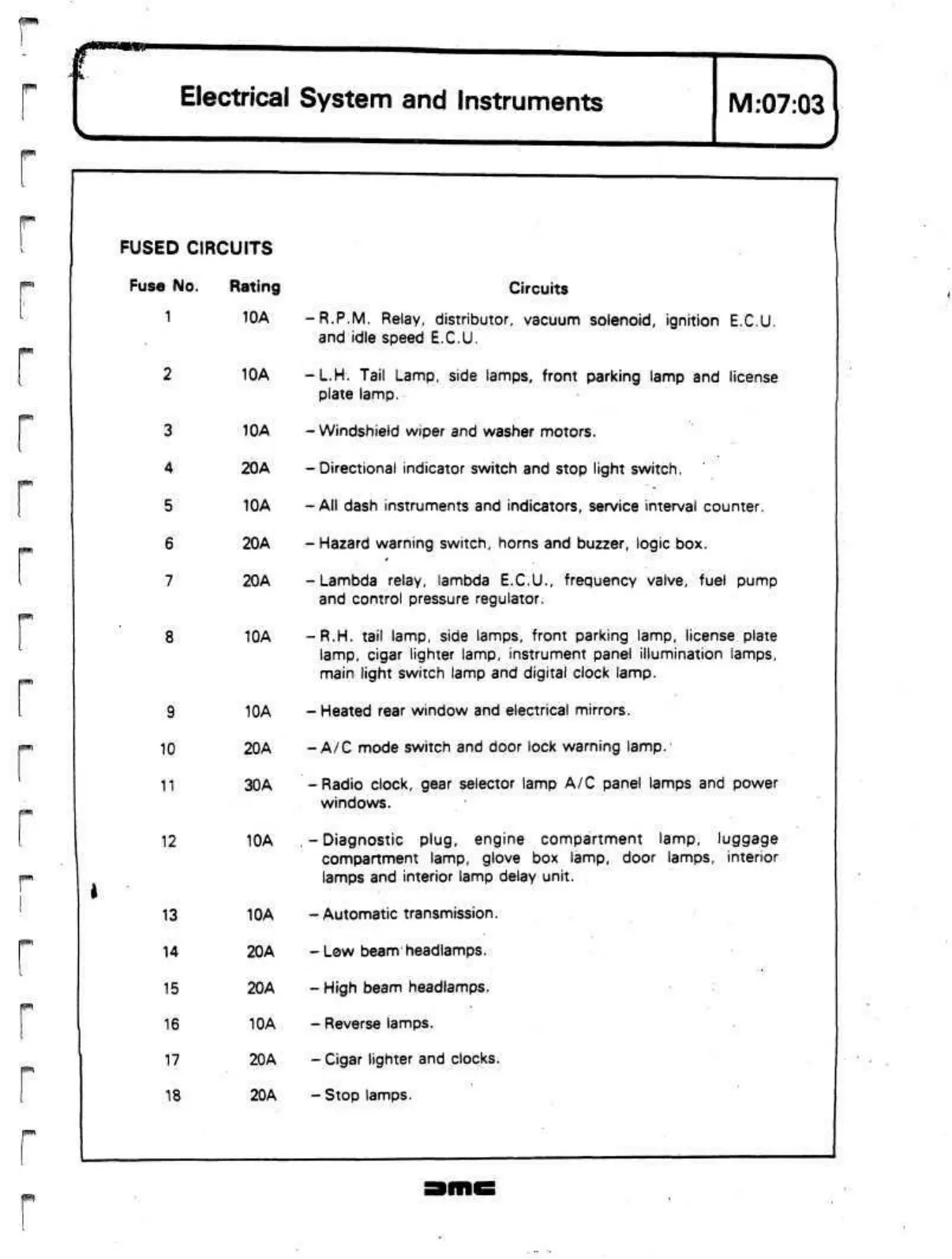

Electrical System and Instruments
M:07:03
FUSED CIRCUITS
Fuse No. Rating
1 10A
2 10A
3
4
5
6
7
10A
20A
10A
20A
20A
12
10A
9
10
11
10A
20A
30A
10A
13
14
15
16
17
18
10A
20A
20A
10A
20A
20A
Circuits
-R.P.M. Relay, distributor, vacuum solenoid, ignition E.C.U.
and idle speed E.C.U.
-L.H. Tail Lamp, side lamps, front parking lamp and license
plate lamp.
- Windshield wiper and washer motors.
-Oirectional indicator switch and stop light switch.
-All dash instruments and indicators, service interval counter.
- Hazard warning switch, horns and buzzer, logic box.
-Lambda relay, lambda E.C.U., frequency valve, fuel pump
and control pressure regulator.
-R.H. tail lamp, side lamps, front parking lamp, license plate
lamp, cigar lighter lamp, instrument panel illumination lamps,
main light switch lamp and digital clock lamp.
- Heated rear window and electrical mirrors.
-A/C mode switch and door lock warning lamp.
-Radio clock, gear selector lamp A/C panel lamps and power
windows.
.-Diagnostic plug, engine compartment lamp, luggage
compartment lamp, glove box lamp, door lamps, interior
lamps and interior lamp delay unit.
-Automatic transmission.
- Low beam headlamps.
- High beam headlamps.
- Reverse lamps.
- Cigar lighter and clocks.
- Stop lamps.
