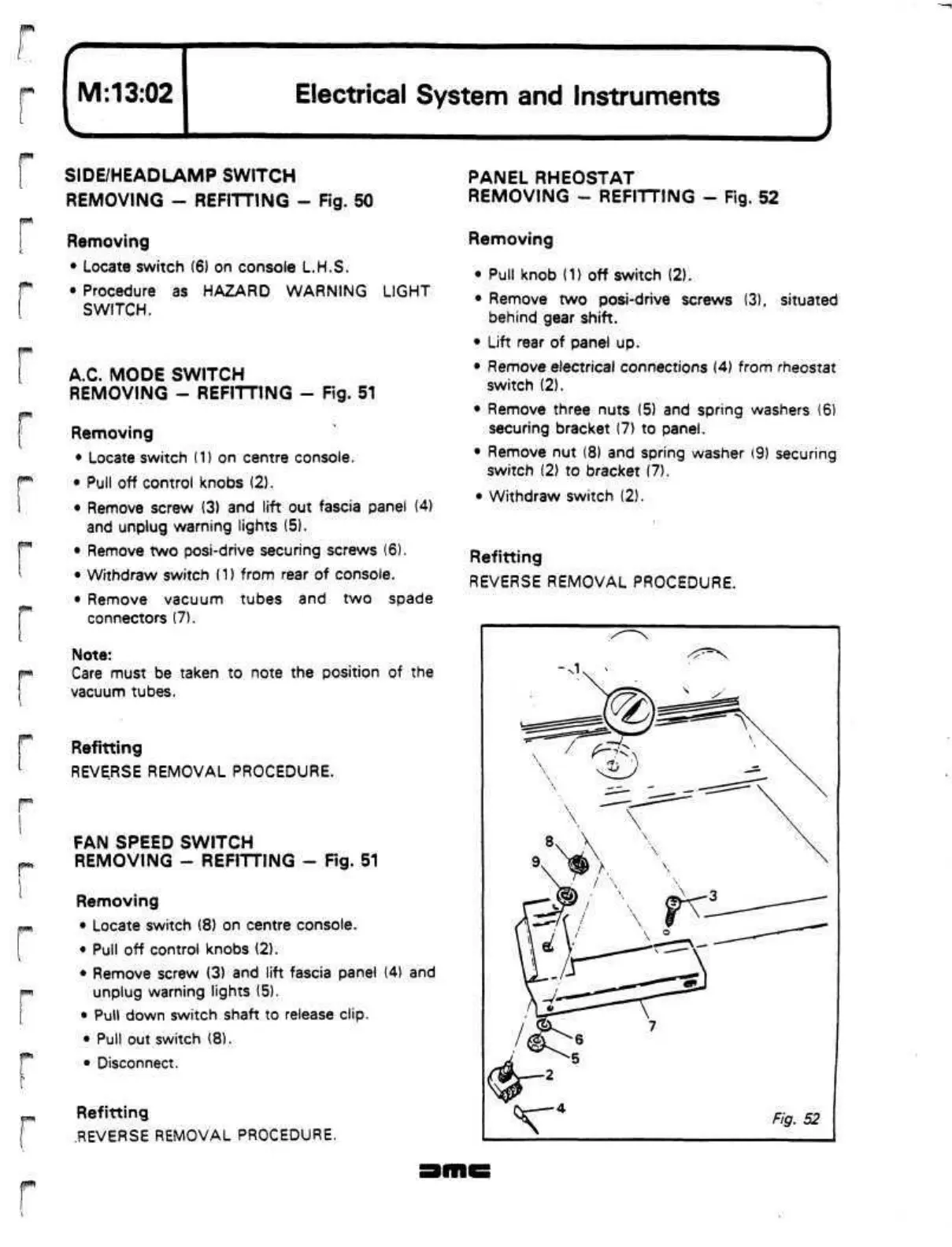

SIDE/HEADLAMP SWITCH
REMOVING - REFITTING - Fig. 50
Removing
• Locate switch (6) on console L.H.S.
• Procedure as HAZARD WARNING LIGHT
SWITCH.
A.C. MODE SWITCH
REMOVING - REFITTING - Fig. 51
Removing
• Locate switch (1) on centre console.
• Pull off control knobs (2).
• Remove screw (3) and lift out fascia panel (4)
and unplug warning lights (5).
• Remove two posi-drive securing screws (6).
• Withdraw switch (1) from rear of console.
• Remove vacuum tubes and two spade
connectors (7).
Note:
Care must be taken to note the position of the
vacuum tubes.
Refitting
REVERSE REMOVAL PROCEDURE.
FAN SPEED SWITCH
REMOVING - REFITTING - Fig. 51
Removing
• Locate switch (8) on centre console.
• Pull off control knobs (2).
• Remove screw (3) and lift fascia panel (4) and
unplug warning lights (5).
• Pull down switch shaft to release clip.
• Pull out switch (8).
• Disconnect.
Refitting
REVERSE REMOVAL PROCEDURE.
PANEL RHEOSTAT
REMOVING - REFITTING - Fig. 52
Removing
• Pull knob (1) off switch (2).
• Remove two posi-drive screws (3), situated
behind gear shift.
• Lift rear of panel up.
• Remove electrical connections (4) from rheostat
switch (2).
• Remove three nuts (5) and spring washers (6)
securing bracket (7) to panel.
• Remove nut (8) and spring washer (9) securing
switch (2) to bracket (7).
• Withdraw switch (2).
Refitting
REVERSE REMOVAL PROCEDURE.
