Electrical System and Instruments
M

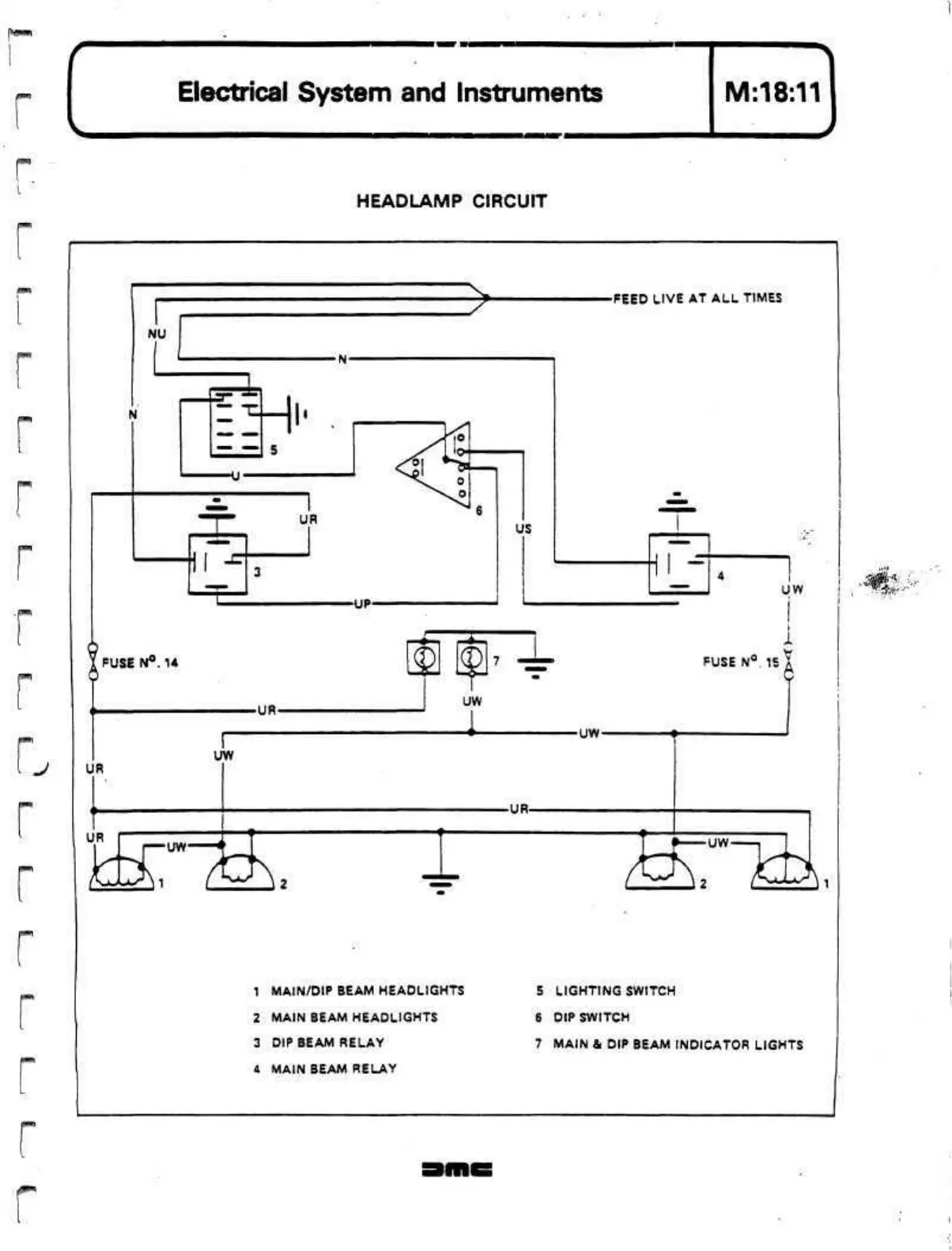

HEADLAMP CIRCUIT
. p^£\
FEED LIVE AT ALL TIMES
I J
j r— uw—«'
'P uw — • <
1 MAIN/DIP BEAM HEADLIGHTS
2 MAIN BEAM HEADLIGHTS
3 DIP BEAM RELAY
4 MAIN BEAM RELAY
5 LIGHTING SWITCH
6 DIP SWITCH
7 MAiN & DIP BEAM INDICATOR LIGHTS
