Electrical System and Instruments

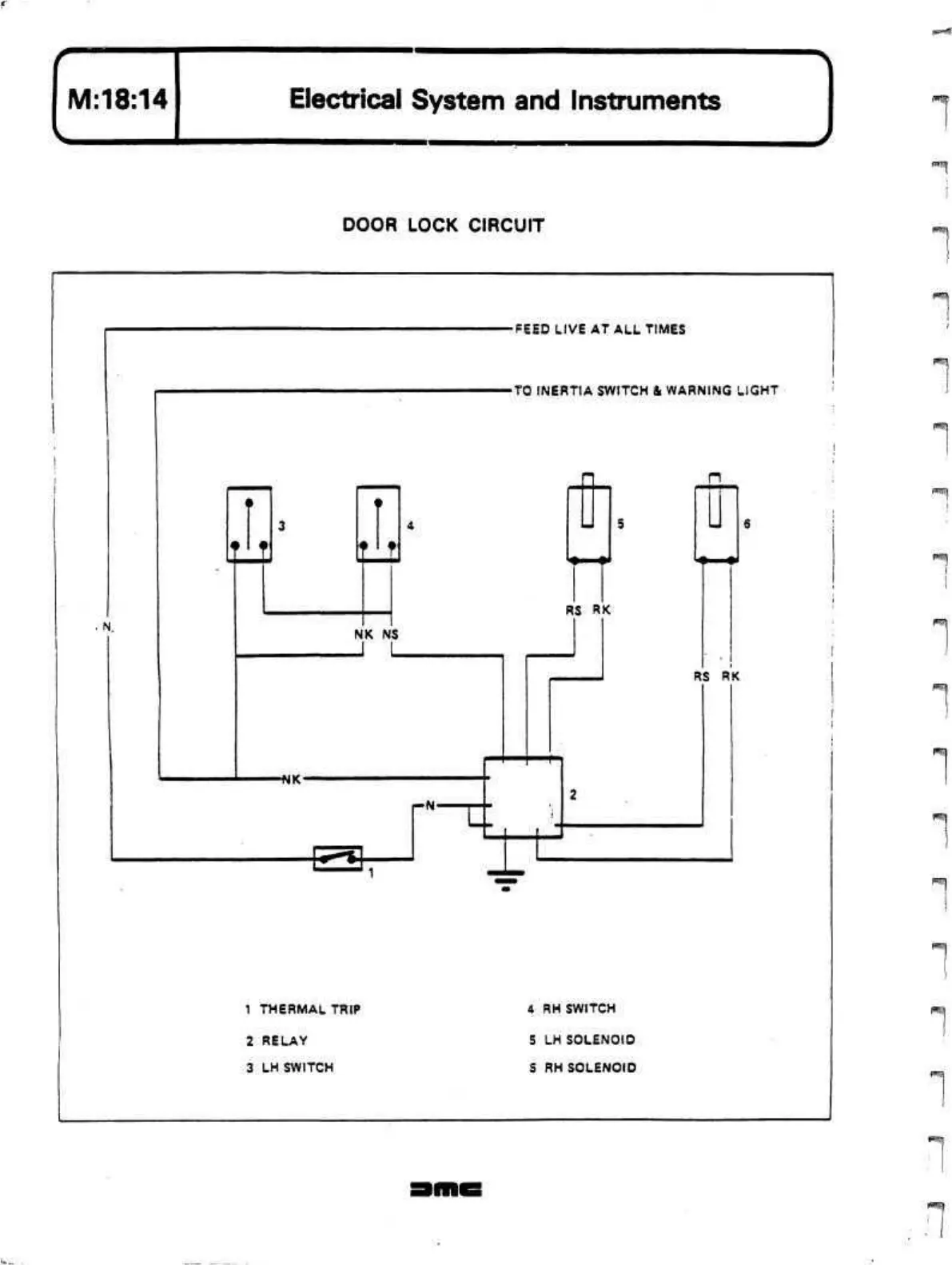

DOOR LOCK CIRCUIT
•PEED LIVE AT ALL TIMES
•TO INERTIA SWITCH & WARNING LIGHT
• N.
W
•NK-
NK MS
J L
r-N-
z:
u s
^—*
RS RK
U 6
n
RS RK
1 THERMAL TRIP
2 RELAY
3 LH SWITCH
4 RH SWITCH
5 LH SOLENOIO
S RH SOLENOIO
