Electrical System and Instruments
MS?

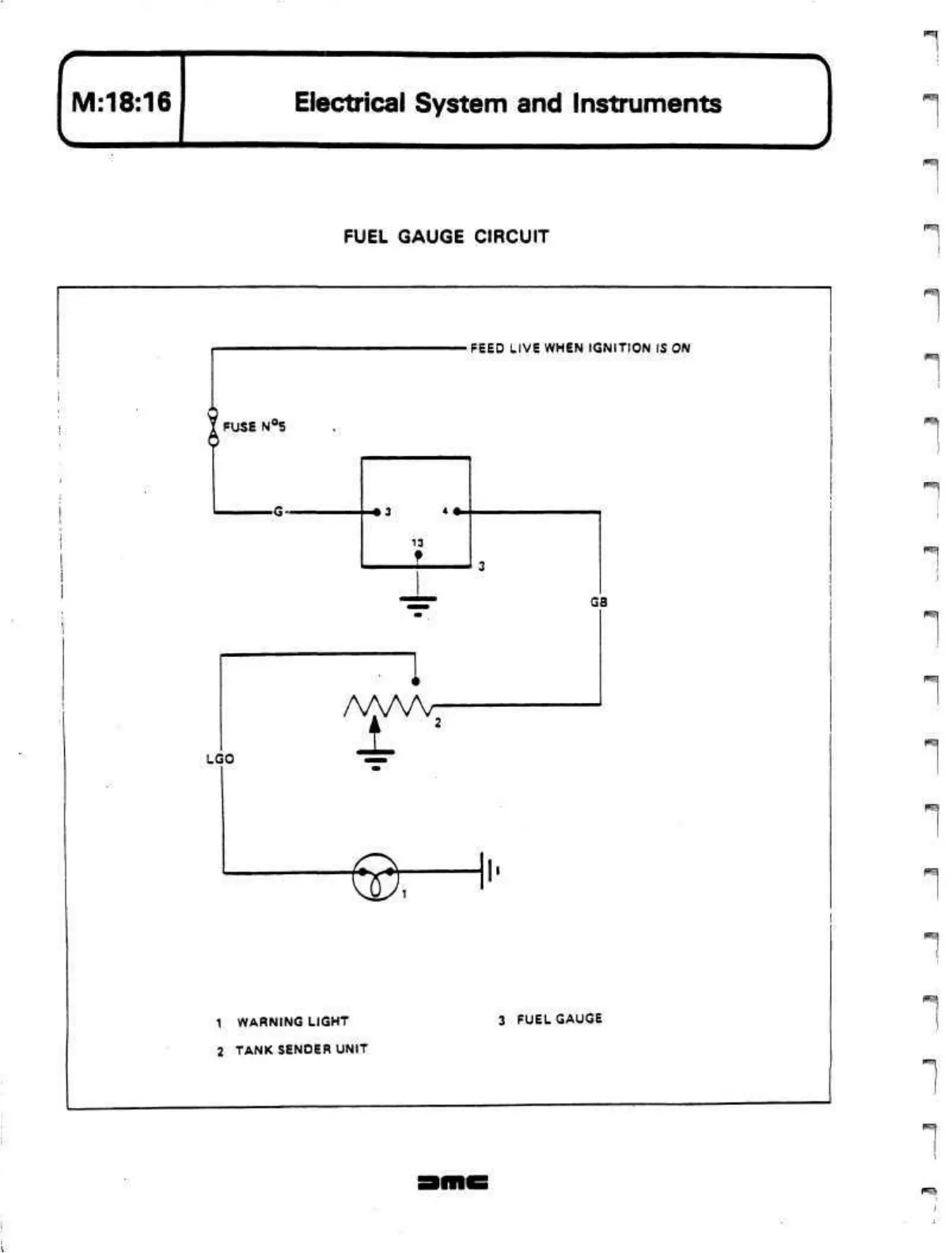

FUEL GAUGE CIRCUIT
FEED LIVE WHEN IGNITION IS ON
FUSE
5
13
f
3
LGO
1
®;—I'
GB
1 WARNING LIGHT
2 TANK SENDER UNIT
3 FUEL GAUGE
