Heating and Air Conditioning
N.01:03
TO
FOOTWELL
THIS SECTION
TURNED THRO'
90°
FOR CLARITY
FACE LEVEL
VENTS
Fig. 2

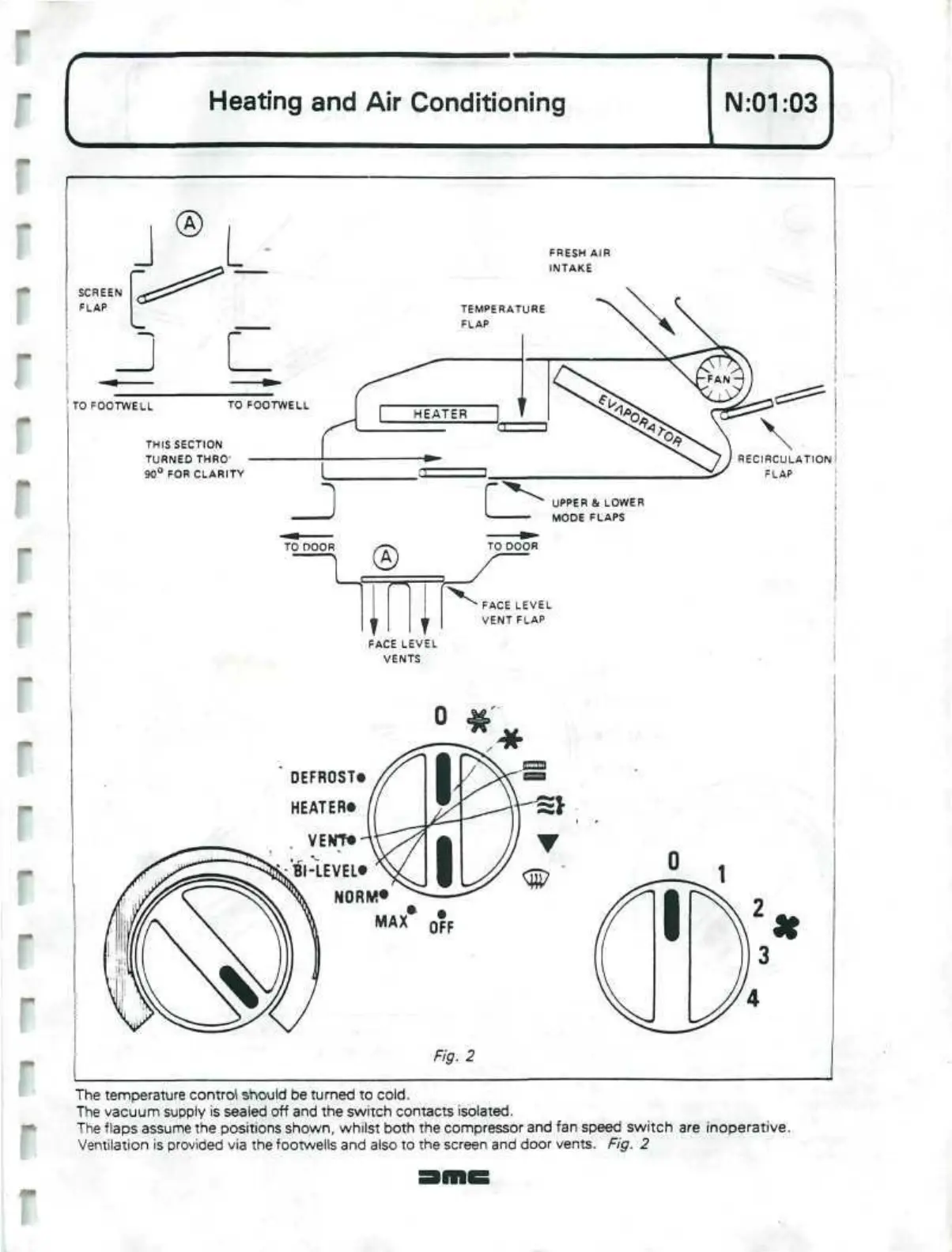

The temperature control should be turned to
cold.
The vacuum supply is sealed off and the switch contacts isolated.
The flaps assume the positions shown, whilst both the compressor and fan speed switch are inoperative.
Ventilation is provided via the footwells and also to the screen and door vents. Fig. 2
