Heating and Air Conditioning

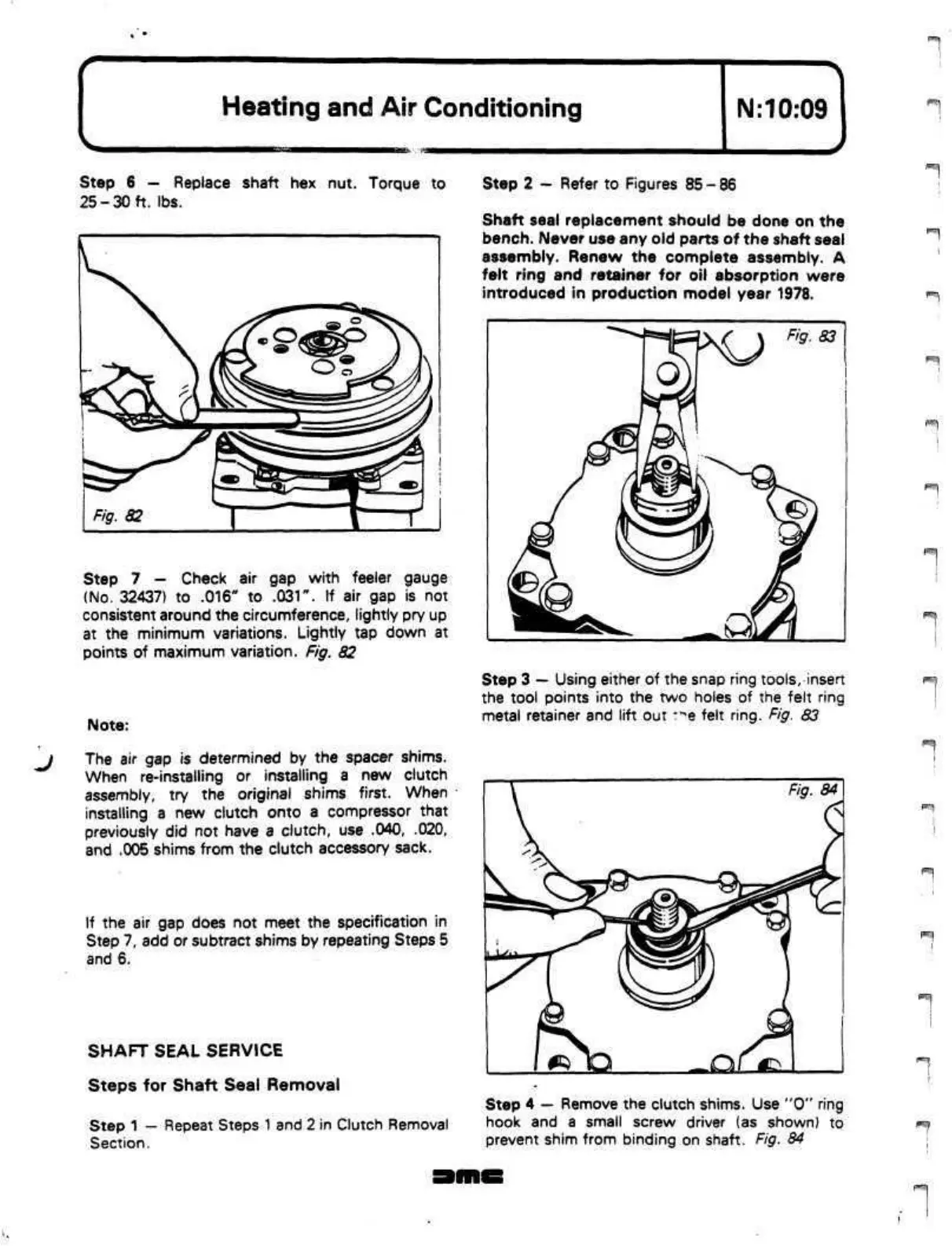

Step 6 — Replace shaft hex nut. Torque to
25-30
ft. lbs.
Step 7 - Check air gap with feeler gauge
(No.
32437) to .016" to
.031".
If air gap is not
consistent around the circumference, lightly pry up
at the minimum variations. Lightly tap down at
points of maximum variation. Fig. 82
Note:
j
The air gap is determined by the spacer shims.
When re-installing or installing a new clutch
assembly, try the original shims first. When
installing a new clutch onto a compressor that
previously did not have a clutch, use .040, .020,
and .005 shims from the clutch accessory sack.
If the air gap does not meet the specification in
Step 7, add or subtract shims by repeating Steps 5
and 6.
SHAFT SEAL SERVICE
Steps for Shaft Seal Removal
Step 1 — Repeat Steps
1
and 2 in Clutch Removal
Section.
N:10:09
Step 2 — Refer to Figures 85-86
Shaft seal replacement should be done on the
bench.
Never use any old parts of the shaft seal
assembly. Renew the complete assembly. A
felt ring and retainer for oil absorption were
introduced in production model year 1978.
Step 3 — Using either of the snap ring tools, insert
the tool points into the two holes of the felt ring
metal retainer and lift out
r^e
felt
ring.
Fig. 83
Step 4 — Remove the clutch shims. Use "0" ring
hook and a small screw driver (as shown) to
prevent shim from binding on shaft. Fig. 84
i
