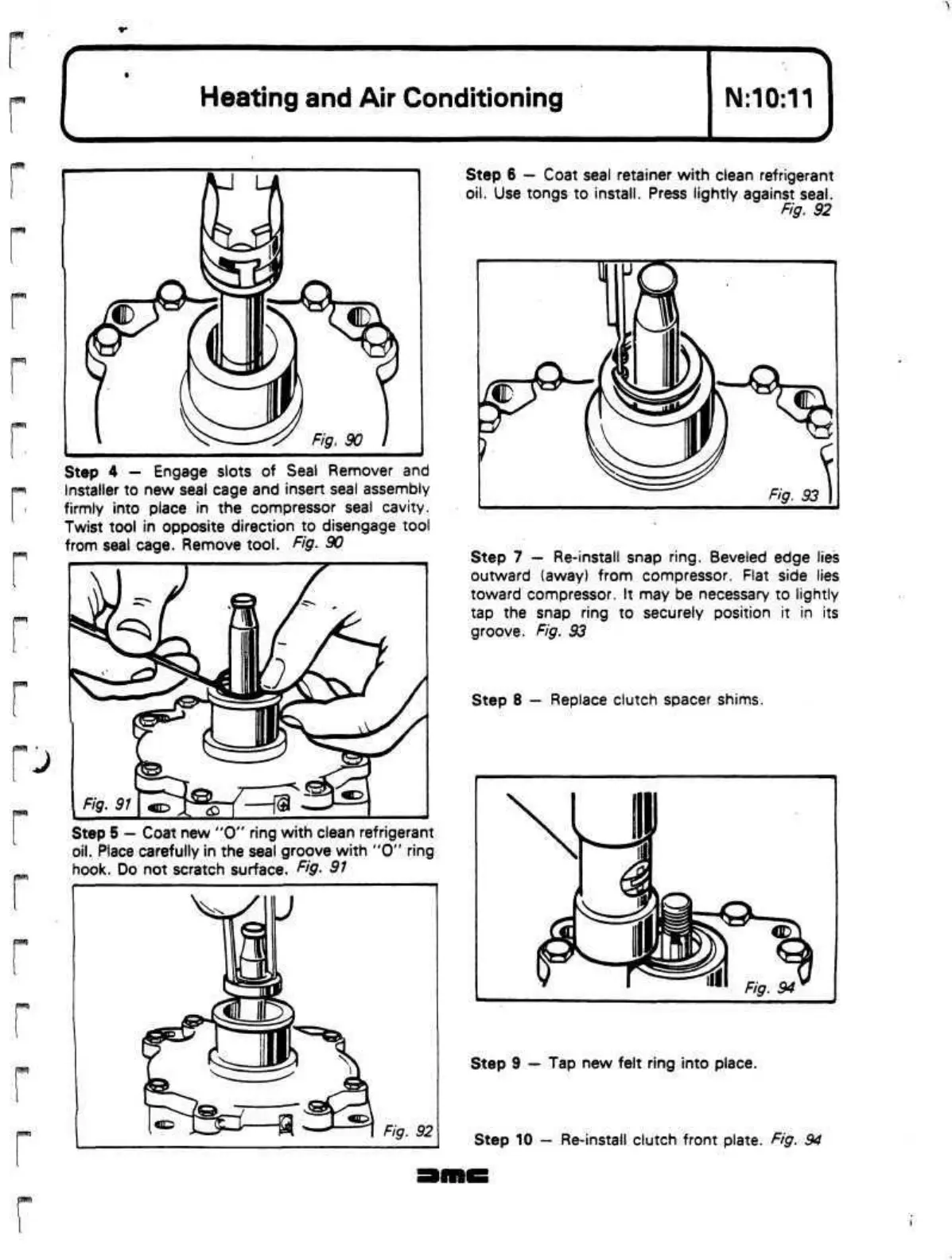

Heating and Air Conditioning
N:10:11
JTffi^
Step 4 — Engage slots of Seal Remover and
Installer to new seal cage and insert seal assembly
firmly into place in the compressor seal cavity.
Twist tool in opposite direction to disengage tool
from seal cage. Remove
tool.
Fig. 90
J
Step 5
—
Coat new "0" ring with clean refrigerant
oil,
Place carefully in the seal groove with "0" ring
hook. Do not scratch surface. Fig. 91
Step 6 — Coat seal retainer with clean refrigerant
oil.
Use tongs to install. Press lightly against
seal.
Fig. 92
Step 7 — Re-install snap
ring.
Beveled edge lies
outward (away) from compressor. Flat side lies
toward compressor. It may be necessary to lightly
tap the snap ring to securely position it in its
groove. Fig. 93
Step 8 — Replace clutch spacer shims.
Step 9 — Tap new felt ring into place.
Step 10 — Re-install clutch front plate. Fig. 94
