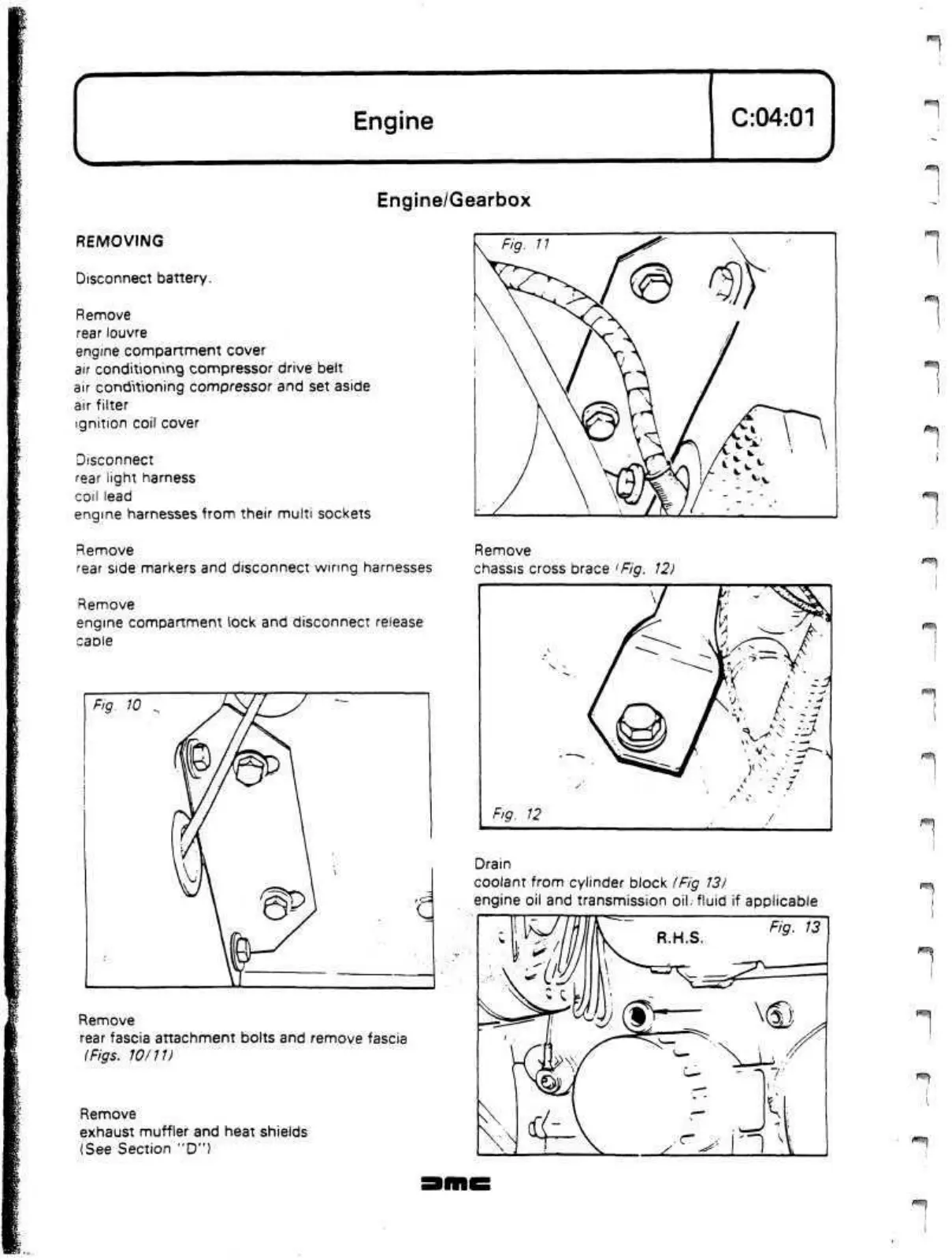

Engine
C:04:01
Engine/Gearbox
REMOVING
Disconnect battery.
Remove
rear louvre
engine compartment cover
air conditioning compressor drive belt
air conditioning compressor and set aside
air filter
ignition coil cover
Disconnect
rear light harness
coil
lead
engine harnesses from their
multi
sockets
Remove
rear
side
markers and disconnect wiring harnesses
Remove
engine compartment lock and disconnect release
caole
Fig. 10
Q
Remove
rear fascia attachment bolts and remove fascia
(Figs.
10/7 J)
Remove
exhaust muffler and heat shields
(See Section "D")
Remove
chassis cross brace 'Fig.
12)
Drain
coolant from cylinder block (Fig
131
engine oil and transmission
oil.
fluid if applicable
yv.->
