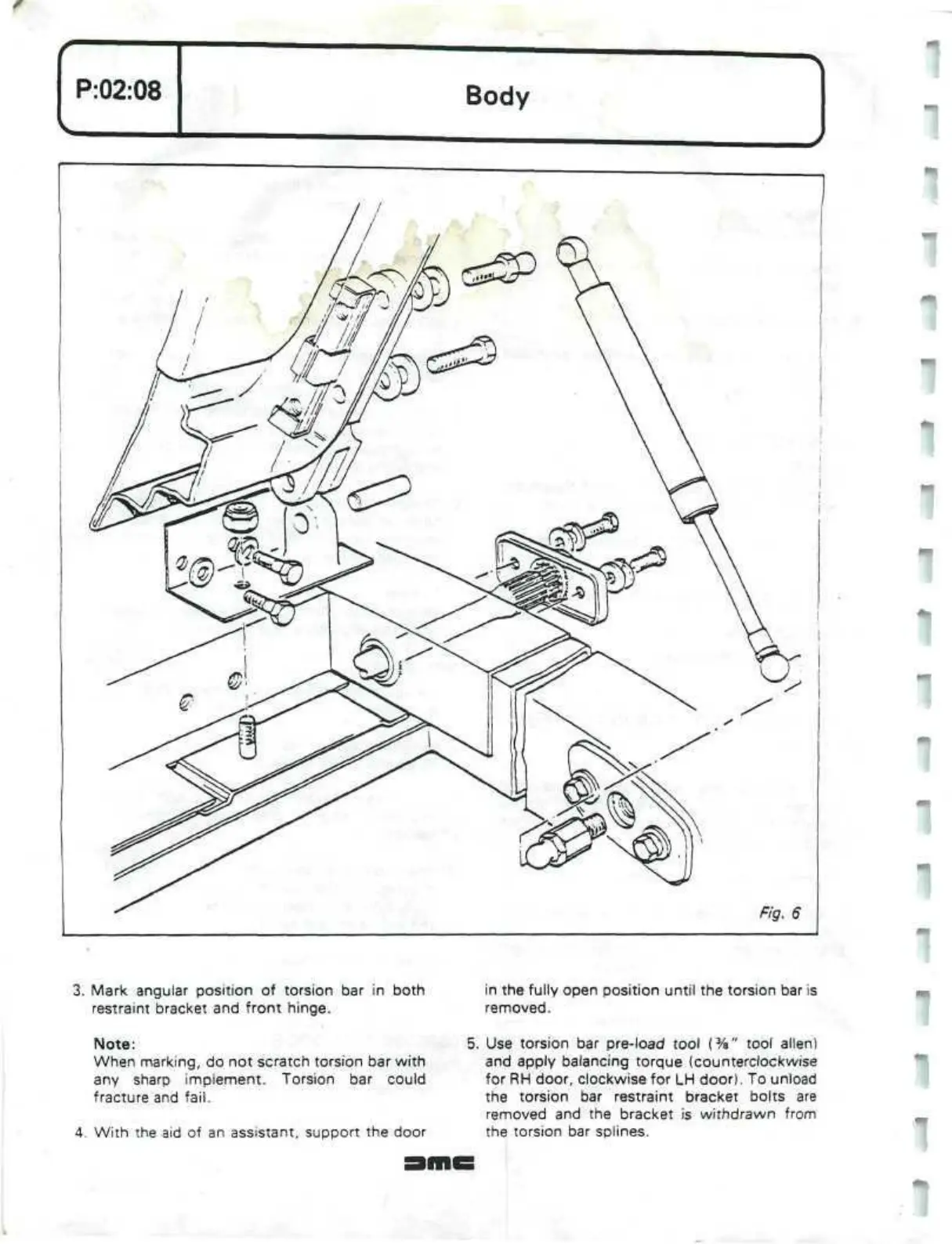

3. Mark angular position of torsion bar in both
restraint bracket and front hinge.
Note:
When marking, do not scratch torsion bar with
any sharp implement. Torsion bar could
fracture and
fail.
4.
With the aid of an assistant, support the door
in the fully open position until the torsion bar is
removed.
5. Use torsion bar pre-load tool
(
3
/a"
tool alien)
and apply balancing torque (counterclockwise
for RH door, clockwise for LH door). To unload
the torsion bar restraint bracket bolts are
removed and the bracket is withdrawn from
the torsion bar splines.
